Alamo Machete T 7740 User Manual
Page 64
© 2005 Alamo Group Inc.
2-6
MACHETE
SERVICE BULLETIN No. 962503-1
Alamo Industrial Technical Services Department
1502 East Walnut
Seguin, Texas 78155
830-372-2708
Rear Flap Bracket, Machete Rotary Head:
Subject:
Install rear flap bracket on Machete Rotary Heads. Brackets will aid in deflecting material away
from the tractor.
Service Required:
1.
All units with Rotary Heads will be affected in the modification.
2.
Secure tractor so it can not be started until you are ready to start it, this will prevent some one
from starting tractor while you are working on it.
2.
Clean area to be welded of paint and
debris. Align and Weld bracket to
head as described in Figure 2.
Clean weld and repaint area as
needed.
3.
Bolt Flap to new bracket using
hardware provided.
Parts Required:
Part No.
Qty
Description
02970461
1
Bracket
00007000
1
Bolt
00011100
2
Flatwasher
00015800
1
Locknut
63096300
1
Paint, Spray Can,
Industrial Yellow
The above parts will have to be ordered
separately, they do not come in a kit.
Models:
Machete Boom
S/N MB21-01001 to 01020 (& PT002)
S/N MB24-01001 to 01017 (& PT002)
Date:
Mar. 25, 1996
Bulletin No:
962503-1
(Old # 960001)
Parts:
100 % at Dealer Net
Labor:
1.0 hrs. at Dealer registered
Shop Rate
Termination Date:
Sep. 30, 1996
Old Parts Disposition:
No Returnable Parts
involved
Continued Next Page

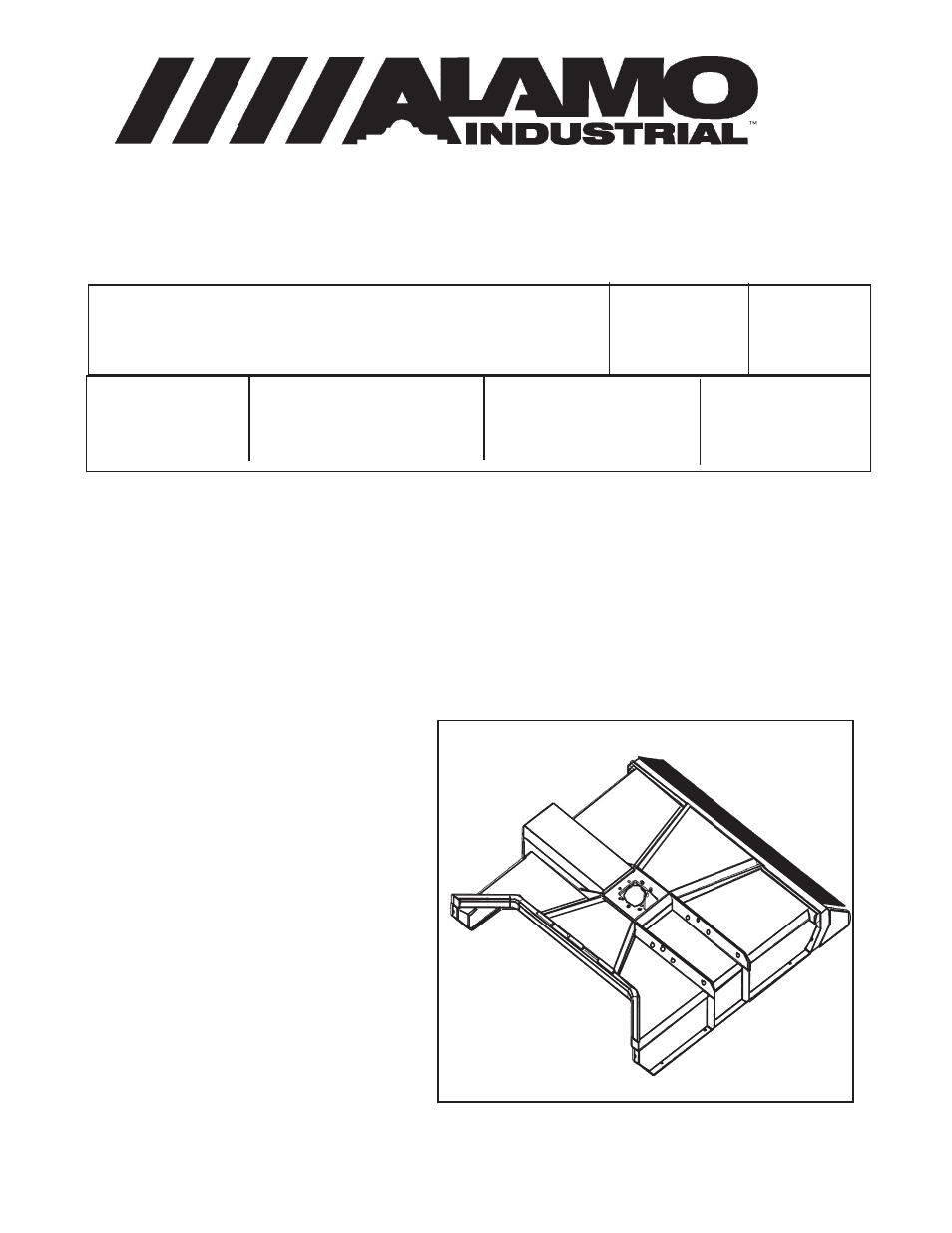

Figure 1
