MACHETE
SERVICE BULLETIN No. 951611
Alamo Industrial Technical Services Department
1502 East Walnut
Seguin, Texas 78155
830-372-2708
Joystick Replacement:
Subject:
The electronic console (Joystick Controls) must be replace on the above listed mowers.
Service Required:
1.
Disconnect wiring harness from console at connector at the bottom of control box.
2.
Remove the bolts attaching console to stand and install new console.
3.
Reconnect to wiring harness, test for proper operation
Parts Required:
Part No.
Qty
Description
02969819
1
Joystick Controller
See Operators manual or Service Manual
for Wire Harness connections.
Models:
Machete Boom Mowers
S/N MB21-01002, 01003, 01004, 01006, 01007, 01008
S/N MB24-PT002, 01002, 01003, 01004, 01005, 01006, 01007
Date:
Nov. 16, 1995
Bulletin No:
951611
(Old # 950011)
Parts:
100 % at Dealer Net
Labor:
0.5 hr. at Dealer registered
Shop Rate
Termination Date:
Feb. 1, 1996
Old Parts Disposition:
Hold all removed parts for
return
Warranty Compensation will be provided following proper filing of warranty claim in accordance with
the Alamo Industrial Warranty Policy. Claim allowance may vary in accordance with laws governing a
specific region. Any Warranty associated with this service bulletin must be within authorized dates.

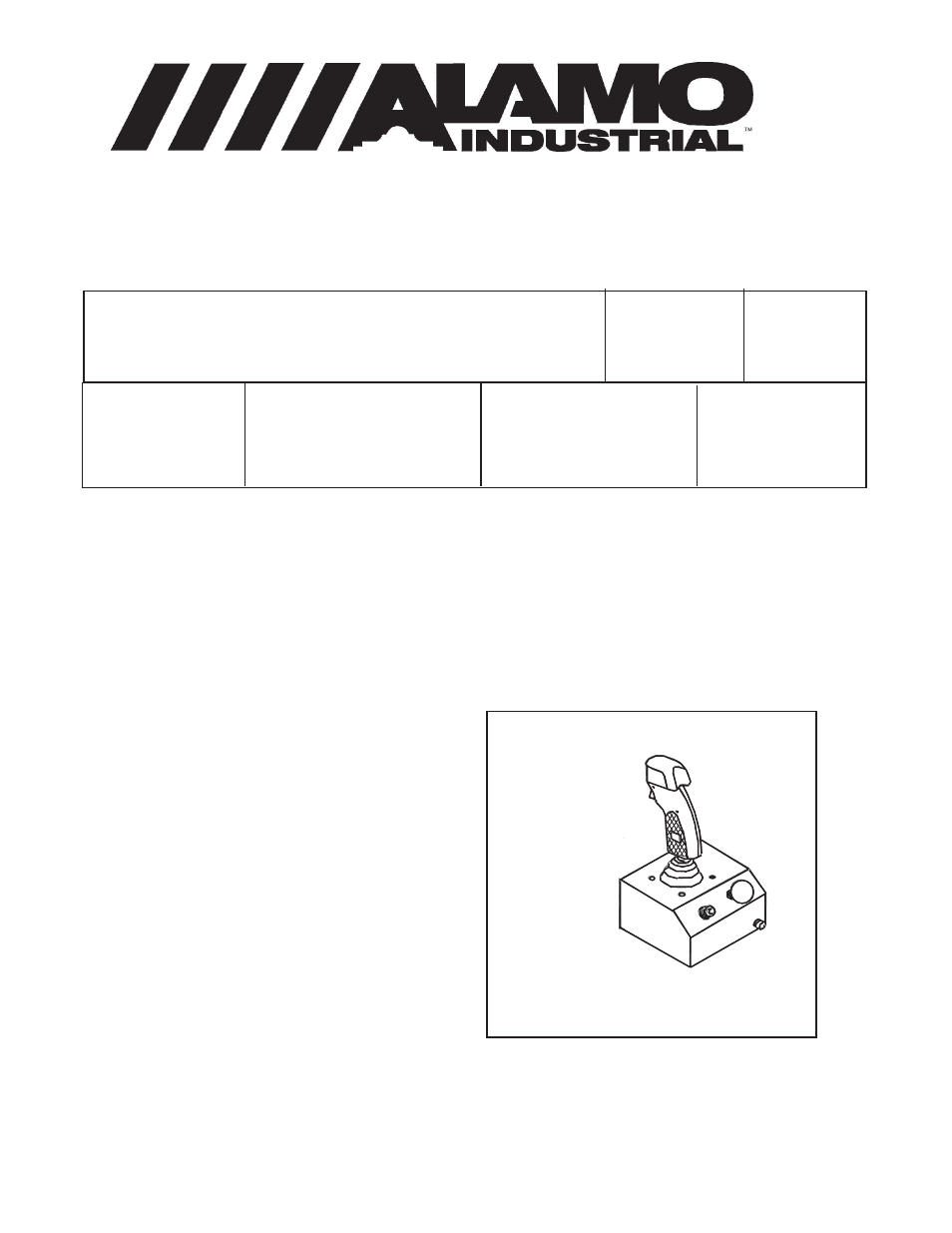

Figure 1
