MACHETE
TECHNICAL INFORMATION BULLETIN No. 041797-2
Alamo Industrial ™ Technical Services Department
1502 East Walnut
Seguin, Texas 78155
830-372-2708
Models:
Machete, MB21 & MB24
Date:
Apr. 17, 1997
Bulletin No:
041797-2
Cylinder & Linkage Pin Replacement Kits:
Boom cylinder pin replacement kits for all Machete MB21 & MB24 mowers are now available.
The new design utilizes a Boss and Bolt arrangement to replace the original tear drop and bolt design.
Each kit contains all the necessary parts along with a detailed instruction sheet regarding the correct
replacement procedure for the pins. Likewise, if new pins are ordered in the future, the original part
numbers will be automatically replaced with the new design being shipped to you. Welding and painting
will be required.
If you are experiencing problems with the original pin design. Order the new kit and replace the
pins with the new design. Instruction Sheet # 02971904 will be sent with each kit ordered. This
instruction sheet will show detailed instructions on how to install the following kits.
If replacing these as warranty, follow all warranty procedures in accordance with warranty
guide and Service Bulletins which apply to this application only.
Kit Numbers:
Kit No.
Qty Description
Kit No.
Qty Description
02967685
1
Pin Kit, Dipper Cyl. Rod End
02967691
2
Pin Kit, Head Tilt Linkage
02967673
1
Pin Kit, Swing Cyl. Barrel End
02967694
1
Pin Kit, Tilt Cyl. Rod End
02967677* 1
Pin Kit, Lift Cyl. Rod End
02967683
1
Pin Kit, Tilt Cyl. Barrel End
02967677* 1
Pin Kit, Dipper Cyl. Barrel End
02967675
1
Pin Kit, Swing Cyl. Rod End
02967679
1
Pin Kit, Lift Cyl. Barrel End
02967681
1
Pin Kit, Link Arm to Dipper
02967694
1
Pin Kit, Link Arm to Linkage
02966791
1
Pin Kit, Linkage Asy to Hitch Post.
02868803
a/r Pin Bushing
Note: there is also a Turning Arm Upgrade Kit which
includes a new 1 piece king pin, All Bushings and
Turning arm (Kit # 02972211) which is not shown
here.
Continued Next Page

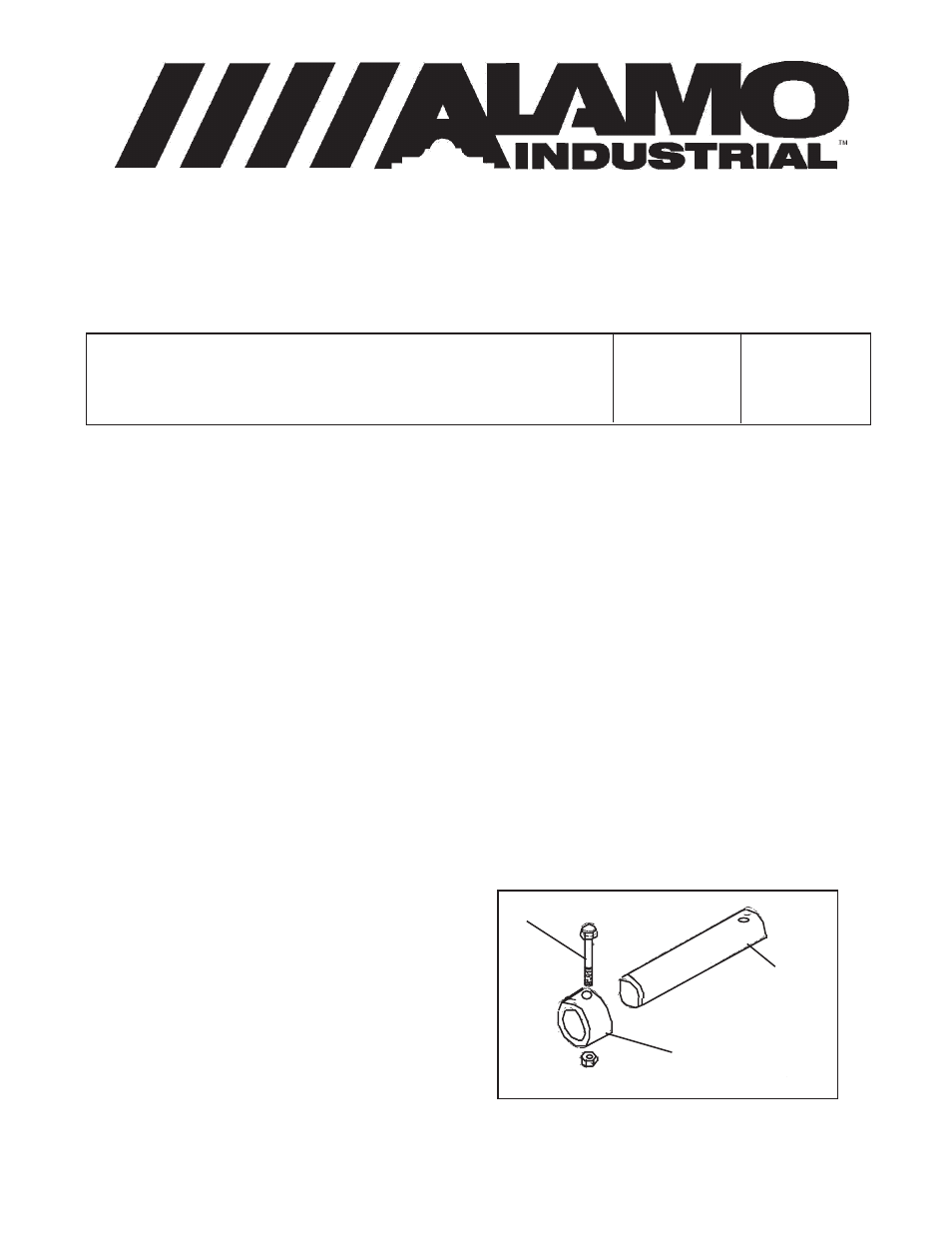

Figure 1
Weld on Boss
New
Pin
Bolt & Nut
