MACHETE

TECHNICAL INFORMATION BULLETIN No. 041101

Alamo Industrial ™ Technical Services Department

1502 East Walnut

Seguin, Texas 78155

830-372-2708

Models:

All Alamo Industrial Products using the

Buzz Bar Head are affected.

Date:

Apr. 11, 2001

Bulletin No:

041101

This document does not authorize the repair or replacement of parts under warranty

Buzz Bar Drive Coupling Design change:

There has been a design
change to the drive coupler
assembly for the Buzz bar
Cutting Head. If a flexible cou-
pler, Alamo Industrial P/N
02974245 (for Machete) or P/
N 02974246 (for A-Boom &
Slopemower), are ordered they
will be a different design. The
new flexible coupler design will
be molded rubber with metal
inserts. The new molded rub-
ber version will directly replace
the machined design using the
same part number. An instal-
lation drawing, that describes
the assembly in detail, will be
shipped if a new coupler is
ordered. this bulletin is to in-
form you of the design change
(see Figure 1) If there are
further questions please con-
tact Alamo Industrial's Techni-
cal Service Department. Also
See Manual Insert Sheet P/N
02978337.

Motor

Flexible Coupler

Hub

Pulley Sheave

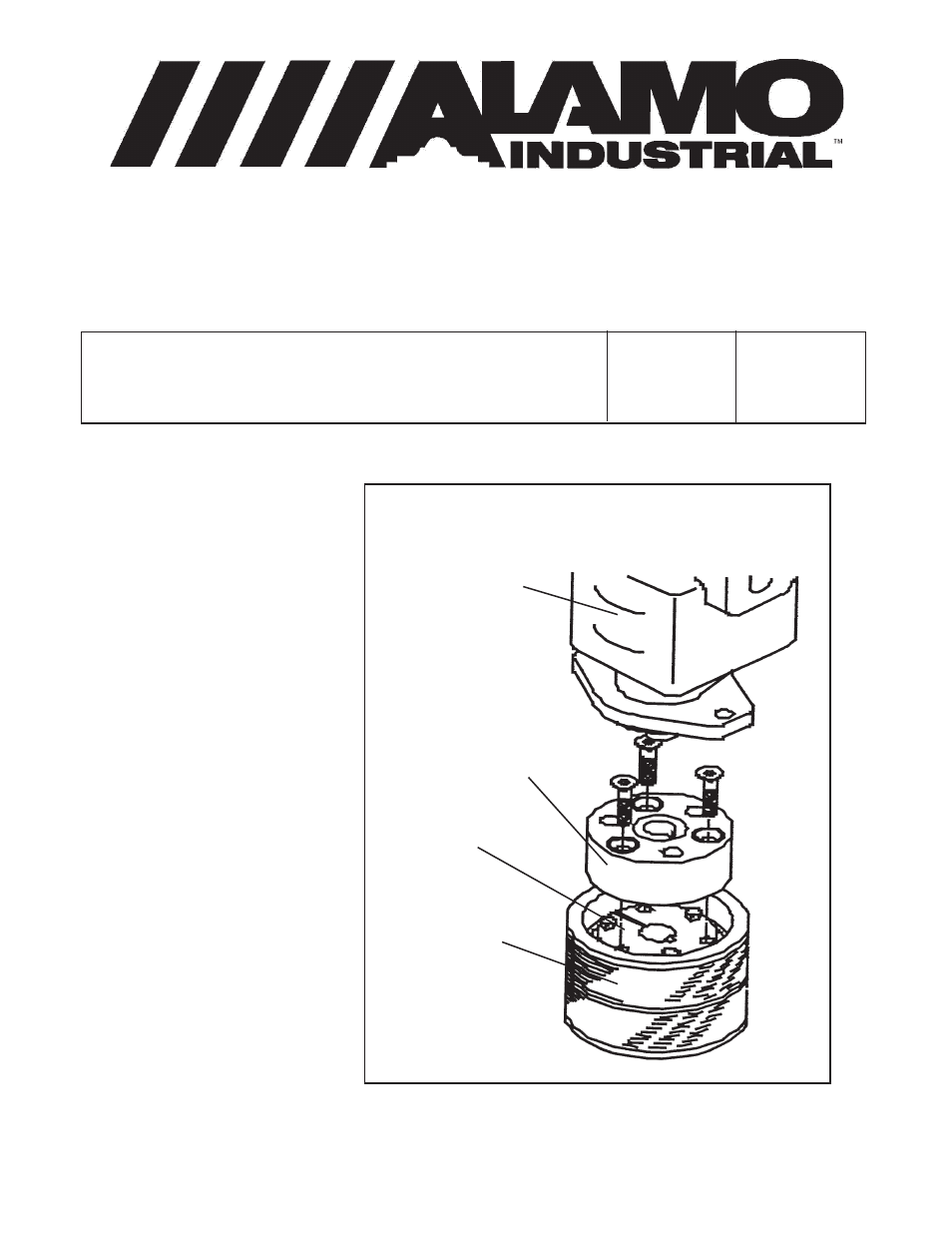

Figure 1
