MACHETE

TECHNICAL INFORMATION BULLETIN No. 011304

Alamo Industrial ™ Technical Services Department

1502 East Walnut

Seguin, Texas 78155

830-372-2708

Models:

All Machete Boom, Brahma & A-Boom

Mounted on New Holland "TS" Series Tractors

Date:

Jan. 13, 2004

Bulletin No:

011304

Alamo Industrial has designed a new Driveline upgrade kit for units mounted on the New Holland

"TS" Series Tractor, This kit will include all component required to install driveline and pump mount
weldment. Some models the Hoses will have to be changed as well as the tank rail weldments and some
will not have these changed. Always check the Insert Sheet that pertains to the model that the kit is
ordered for.

The Machete will need the Cylinder hoses changed, the Brahma will not need any hoses

replaced, the A-Boom needs only the Suction Hose replaced.

The Machete and Brahma needs the tank rail weldments replaced and the A-Boom will not, the

A-Boom will use the same tank rail weldments. Use the existing hardware to install new Tank Rails.

Kits will include Driveline, Pump Mount, Pump Mount Cover, Required Hardware (nuts Bolts,

washers) and Insert Sheet with mounting instructions. Kit may include hoses and tank rail weldments
depending on model. Use only the instruction Insert Sheet that is included with kit as all kits do not have
the same parts.

KIts Available:

Model

Kit P/N

Insert Sheet

Machete Boom........... 02980404................... 02980638
Brahma...................... 02980631................... 02980639
A-Boom...................... 02980636................... 02980640

Driveline Update Kit:

Continued Next Page

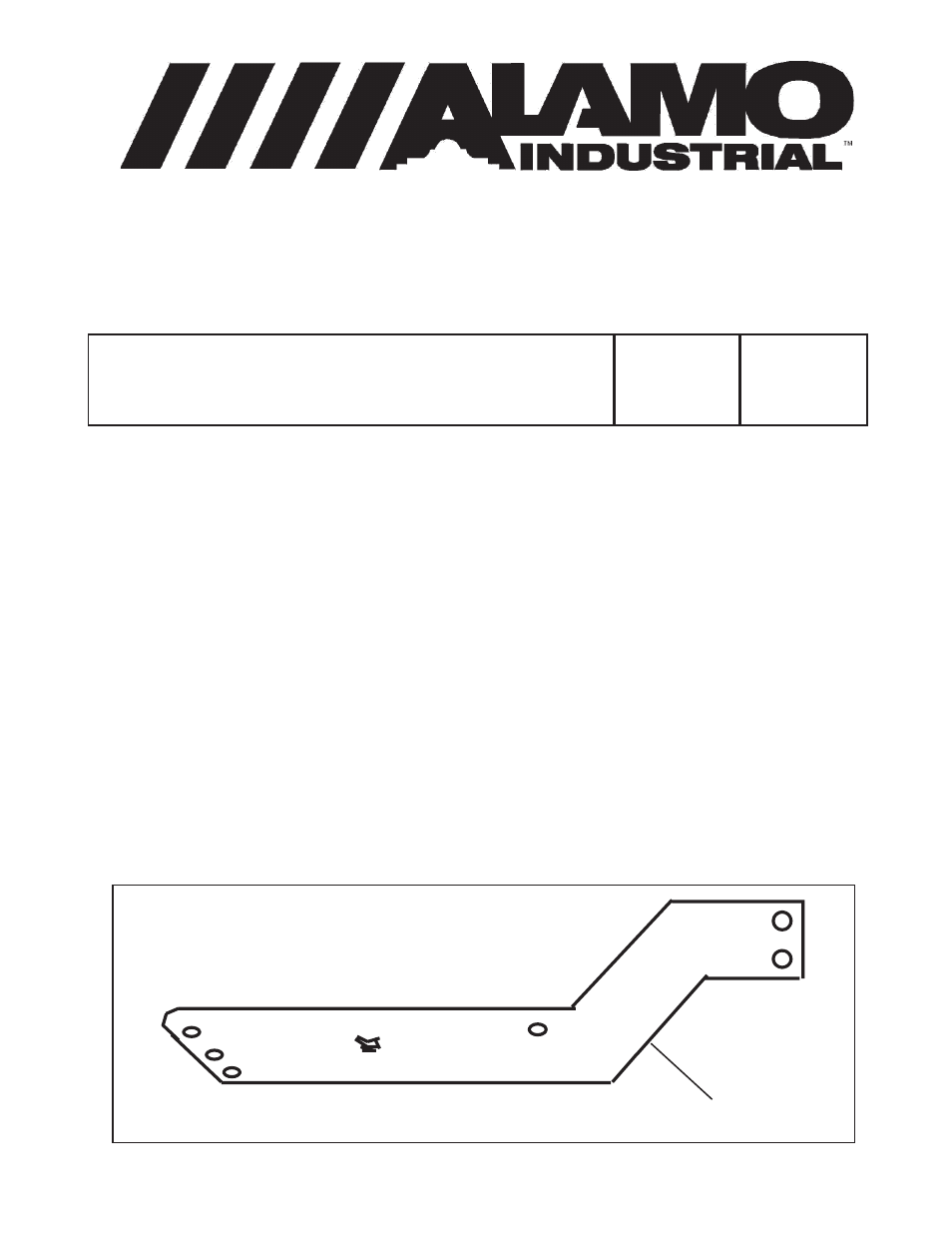

Tank Rail Weldment

Figure 1

LH Tank Rail Weldment Shown
RH Tank Rail Weldment Not Shown
