TECHNICAL INFORMATION BULLETIN No. 012097

Alamo Industrial ™ Technical Services Department

1502 East Walnut

Seguin, Texas 78155

830-372-2708

Models:

Machete, MB21 & MB24

Date:

Jan. 20, 1997

Bulletin No:

012097

This document does not authorize the repair or replacement of parts under warranty

Interference between Tube Clamps and Main Frame:

It is possible that the boom hydraulic tube clamps may contact the main frame when boom

is raised to its highest position. This condition effects only machines with certain frames. If you have
a machine that has this interference problem use the procedures described in this bulletin to correct
the problem. (See Figure 1).

If the parts on your unit are damaged, loosen the six bolts that hold the three tubes. Cut the

bracket away from the boom. Relocate the bracket on the boom so it clears the frame. Weld in place
and paint. Tighten the six bolts. Total time to perform this modification will be approximately 1.5 hours
time or less. If parts are required there is a kit that can be installed, the Kit # 02971938.

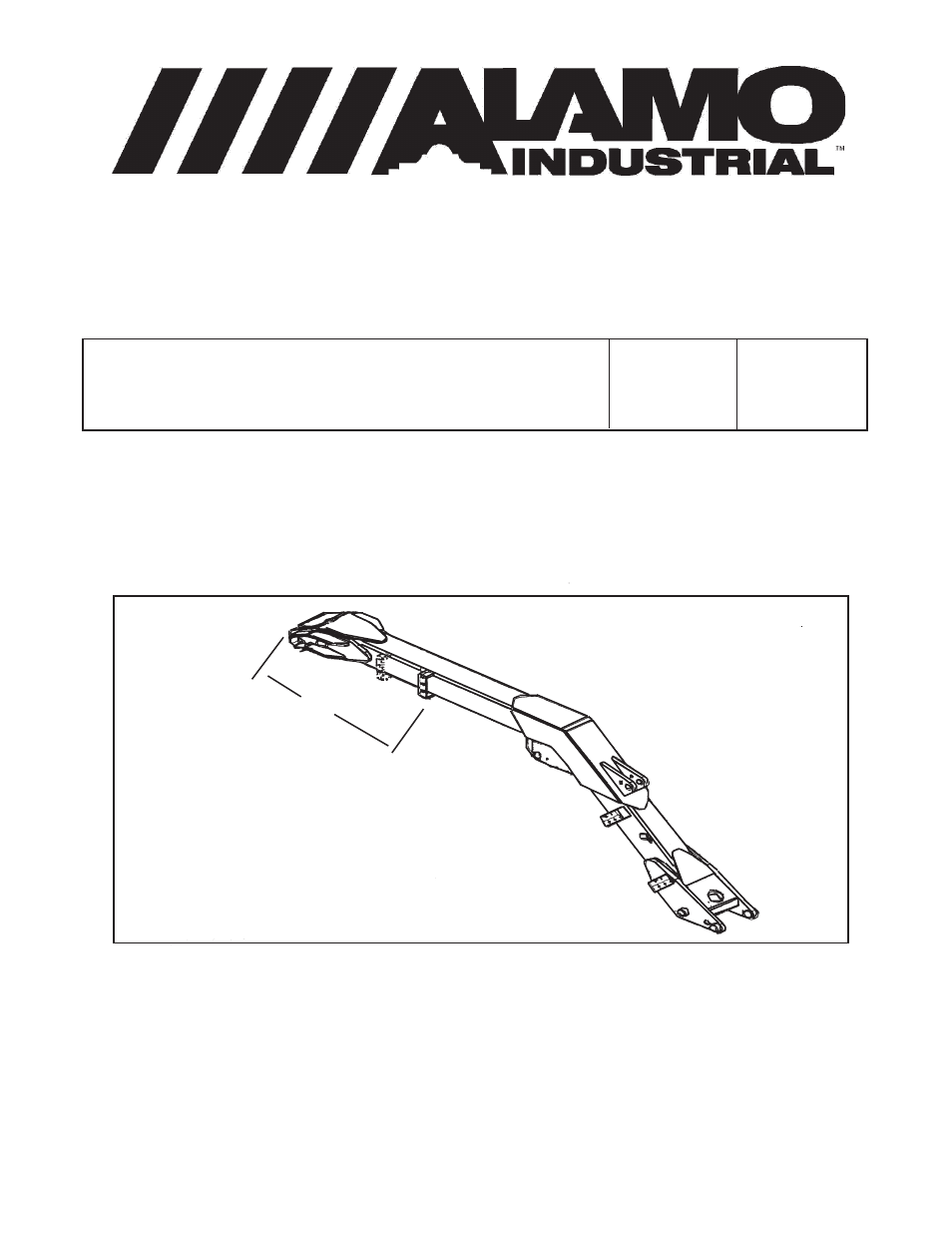

25"

To prevent interference of the
hydraulic pipe clamps with the
frame move the clamps to this
new 25" distance

Figure 1
