MACHETE

TECHNICAL INFORMATION BULLETIN No. 061897

Alamo Industrial ™ Technical Services Department

1502 East Walnut

Seguin, Texas 78155

830-372-2708

Models:

Machete, MB21 S/N 01001 - 01071, 03507 & 02684

& MB24 S/N 01001 - 01040 & 03459

Date:

Jun. 18, 1997

Bulletin No:

061897

New Thick Blade Bar & Larger Bolts:

Early October 1996, in order to ensure an extended service life, a new blade bar was introduced

which featured larger blade bar leaf bolts (from 7/8" to 1-1/4") and a thicker bottom leaf. As a result,
longer mounting bolts (from 3-1/2" to 4") are required to ensure adequate thread engagement into the
spindle shaft.

When ordering a replacement blade bar using the original number, the new blade bar design

will automatically be sent. However, the 4 longer mounting bolts may not be included.

Therefore, when ordering a replacement blade bar, ensure that the proper length mounting

bolts (P/N 02964861 which is a 4" Bolt) are also replaced. DO NOT attempt to mount the new style blade
bar using the old shorter bolts. The best way is to always check the replacement bottom leaf thickness
as compared to the bottom leaf that was removed. If the replacement is thicker then the new longer
bolts will be needed. Another way to determine which one you have check the Leaf retaining bolt size.

This document does not authorize the repair or replacement of parts under warranty

Note: Replaces / Same as Bulletin No. 061897A

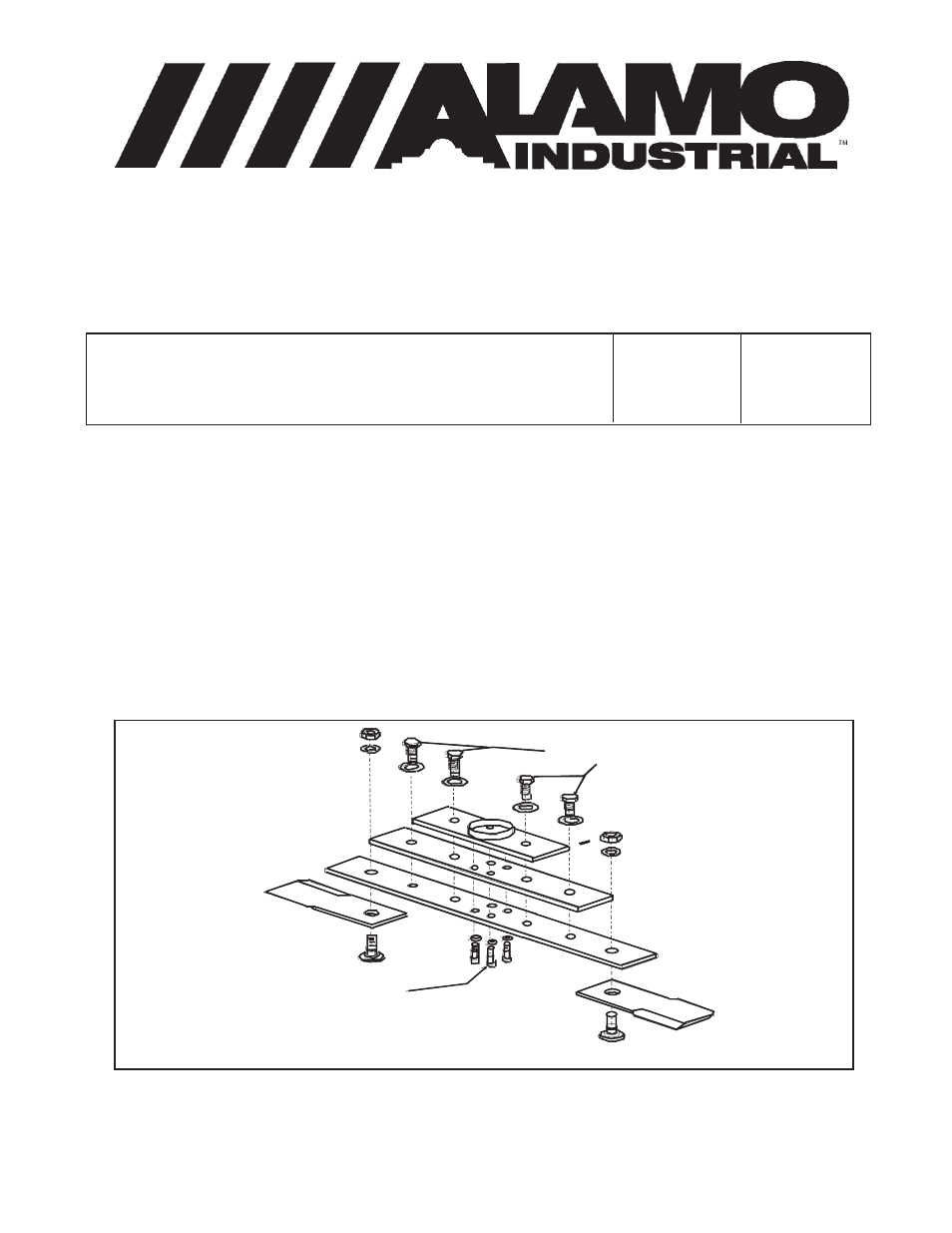

Blade Leaf Bar Bolts (Torque
1-1/4" bolts to 2000 ft. lbs.)

Blade Bar Mounting Bolts
(Torque to 400 ft lbs.)

Figure 1
