Experiment Guide

Teacher’s Guide

35

Method B

Average wavelength: 2.81 cm

Frequency: 1.07 x 10

10

Hz

Answers to Questions

The value obtained by the first method was 5.6% off, and the second was 1.5% off. If it is possible to take more data points on
the second method, you may get better results.

Experiment 4: Refraction Through a Prism

Notes on the Procedure

1. The empty foam prism absorbs the radiation by a very slight amount.

  = 7° (± 1°)

4

 

1

= 22°

2

= 29°

5. Our experimental value was: n

1

= 1.3 ± 0.05

6. Our experimental value was: n

1

= 1.3 ± 0.05

Answers to Questions

1. This assumption is valid. According to Snell’s law, if the angle of incidence is zero, the angle of refraction is zero also.

2. The index for a solid styrene prism would be higher, due to the greater “optical” density of the solid material.

General Notes

The prism mold may be filled with other materials as well. We used water for one such test. The water absorbs most of the
microwave energy (this is how a microwave oven works) but enough gets through that it may be measured on the most sensi-
tive scale of the receiver. We found that n = 1.4 ± 0.05.

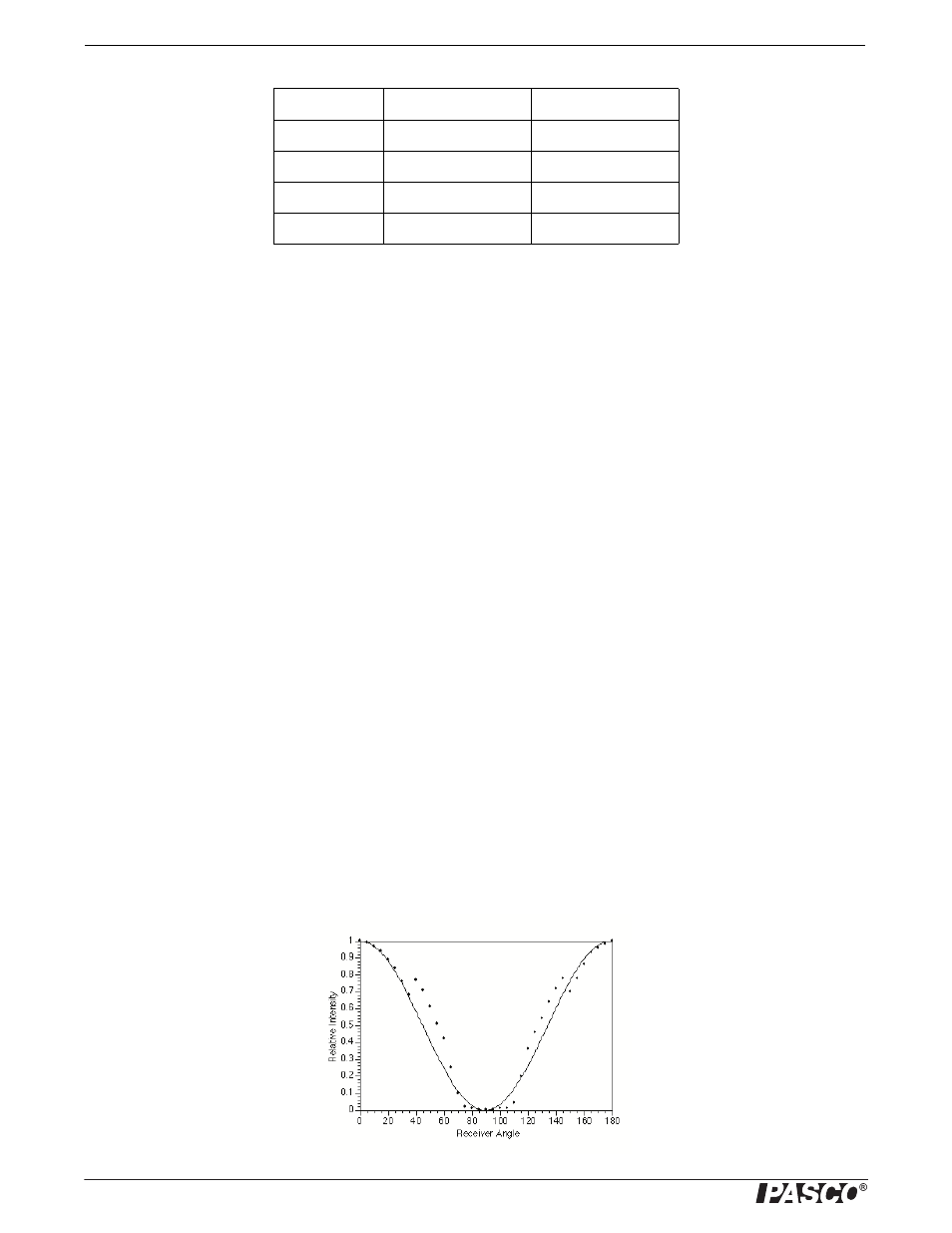

Experiment 5: Polarization

Notes on the Procedure

2.

Antinodes

Distance (cm)

Wavelength (cm)

5

7.1

2.84

10

14.1

2.82

15

20.0

2.67

20

27.5

2.89
