D
ATA
DISPLAY
23
D
ISPLAYING
DATA
IN
A
GRAPH

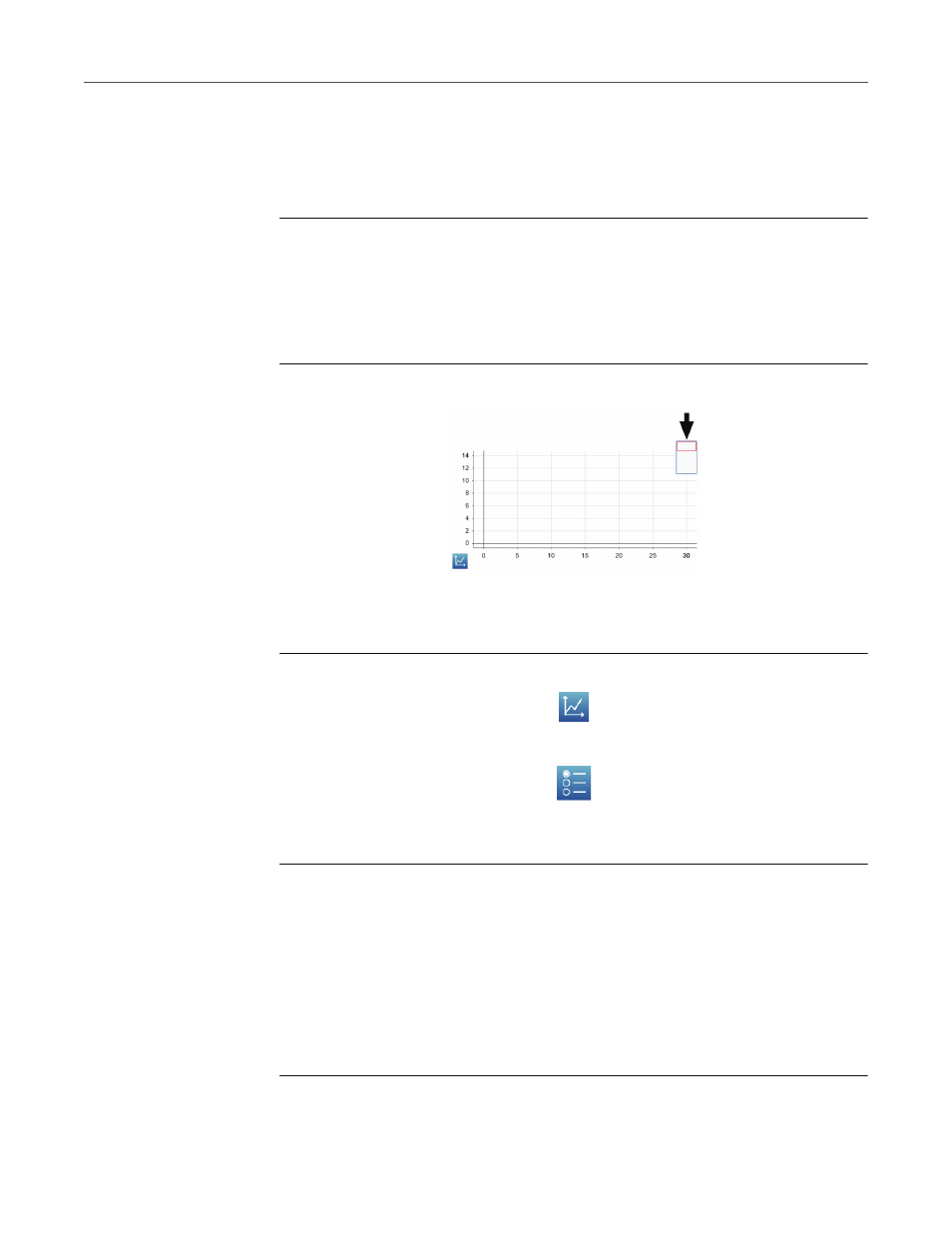

Selecting data to show in an existing graph
Showing and hiding data runs in a graph
1.
Touch the graph legend.
The legend enlarges to show available data runs.
2.
Select or clear the check box next to each data run that you want to
show or hide.
3.
Optionally, touch outside the legend to reduce the size of the legend.
Graph legend
Changing the variable on the x- or y-axis
1.
Touch the Graph Tools button to open the tool palette.
2.
Touch the Properties button to open the Properties screen.
3.
For each axis, touch the Measurement: box and select a measurement
or other variable.
Selecting data for operation in a graph
Selecting a data run for operation in a graph
In the graph legend, a red outline surrounds the run that is selected for
operation. Complete these steps to change which run is selected:
1.
Touch the graph legend.
The legend enlarges.
