Connectors
2-16 ADSP-21364 EZ-KIT Lite Evaluation System Manual
Connectors
This section describes the connector functionality and provides informa-
tion about mating connectors.
Figure 2-7 shows the connector locations.
Expansion Interface (J1–J3)
Three board-to-board connectors ( J1–3 ) provide signals for most of the
processor’s peripheral interfaces. The connectors are located at the bottom
of the board. For more information about the interface, see
“Expansion
Interface” on page 2-7 . For the J1–3 availability and pricing, contact
Samtec.

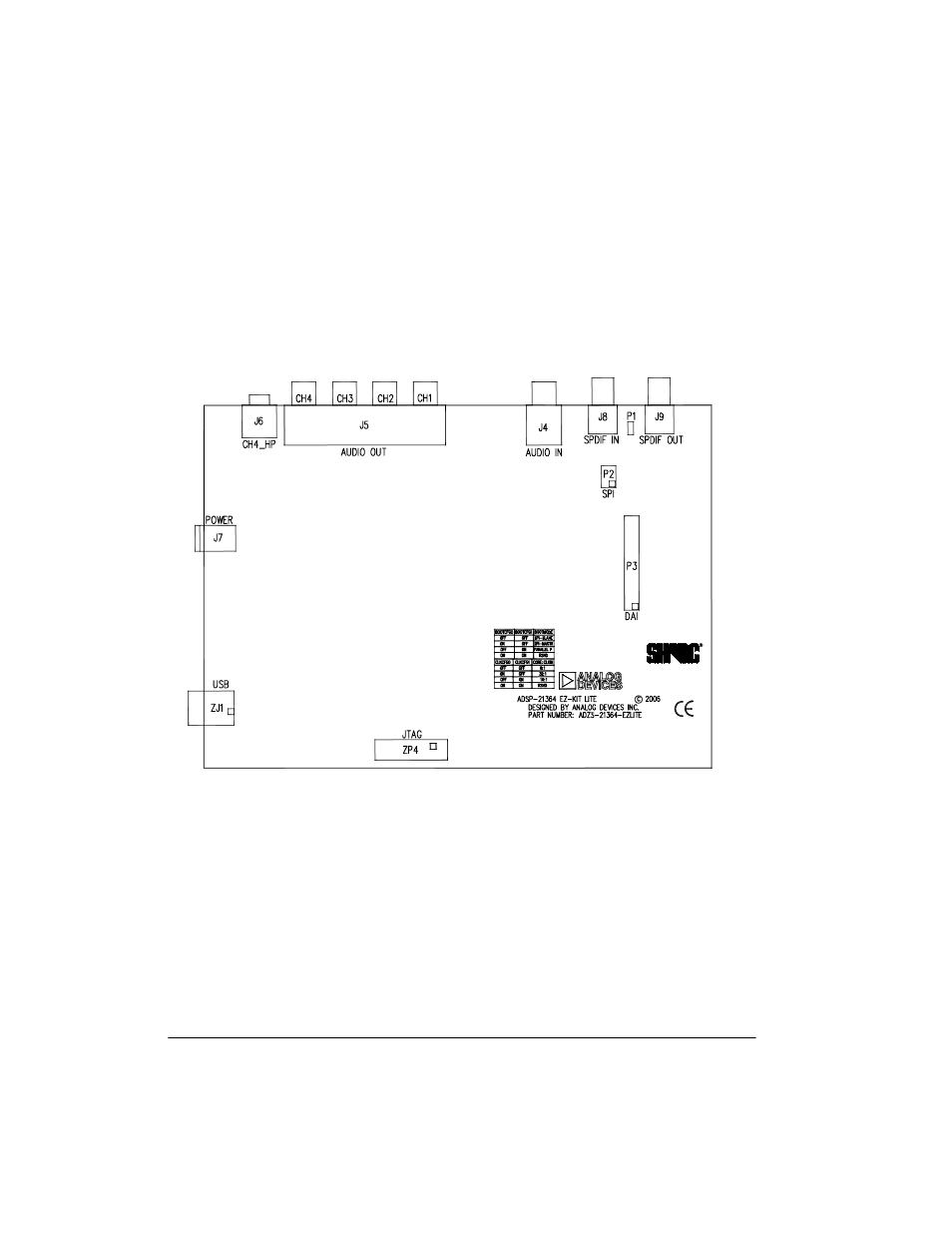

Figure 2-7. Connector Locations
