Default Configuration
1-4
ADSP-21364 EZ-KIT Lite Evaluation System Manual
3. Plug the provided power supply into
J7
on the EZ-KIT Lite board.
Visually verify that the green power LED (
LED10
) is on. Also verify
that the red reset LED (
LED9
) goes on for a moment and then goes
off, and, finally,
LED1
through
LED8
are blinking sequentially.
4. Connect one end of the USB cable to an available full speed USB
port on your PC and the other end to
ZJ1
on the ADSP-21364
EZ-KIT Lite board.

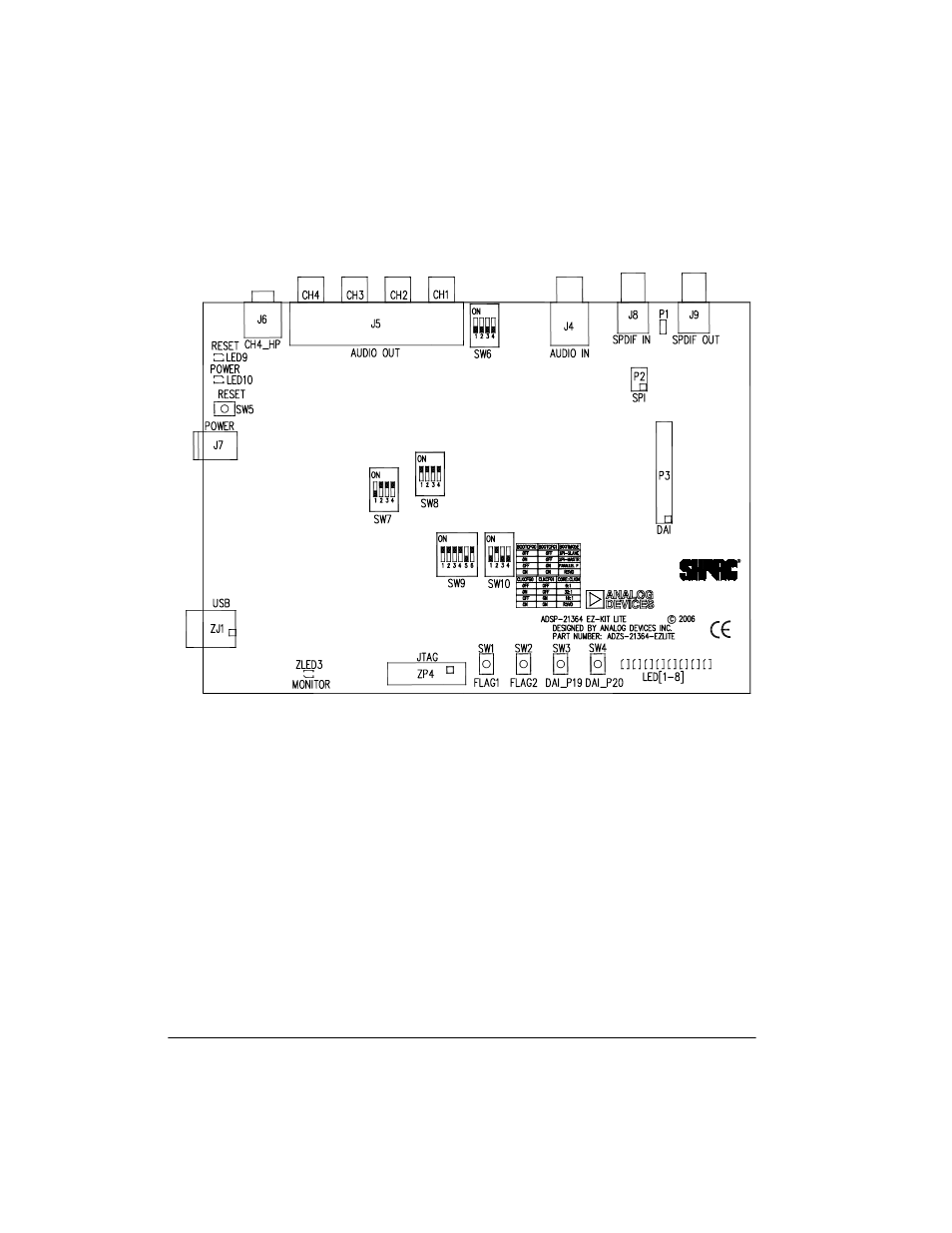

Figure 1-1. EZ-KIT Lite Hardware Setup
