System Architecture
2-2 ADSP-21364 EZ-KIT Lite Evaluation System Manual
System Architecture
This section describes the processor’s configuration on the EZ-KIT Lite
board shown in
Figure 2-1 .
This EZ-KIT Lite has been designed to demonstrate the capabilities of the
ADSP-21364 processor. The processor core is powered at 1.2V, and the
IO is powered at 3.3V. Two 0-ohm resistors give access to the processor’s
power planes and allow to measure the power consumption of the proces-
sor. The
R79 resistor provides access to the IO voltage of the processor,
and the R80 resistor provides access to the core voltage plane of the
processor.

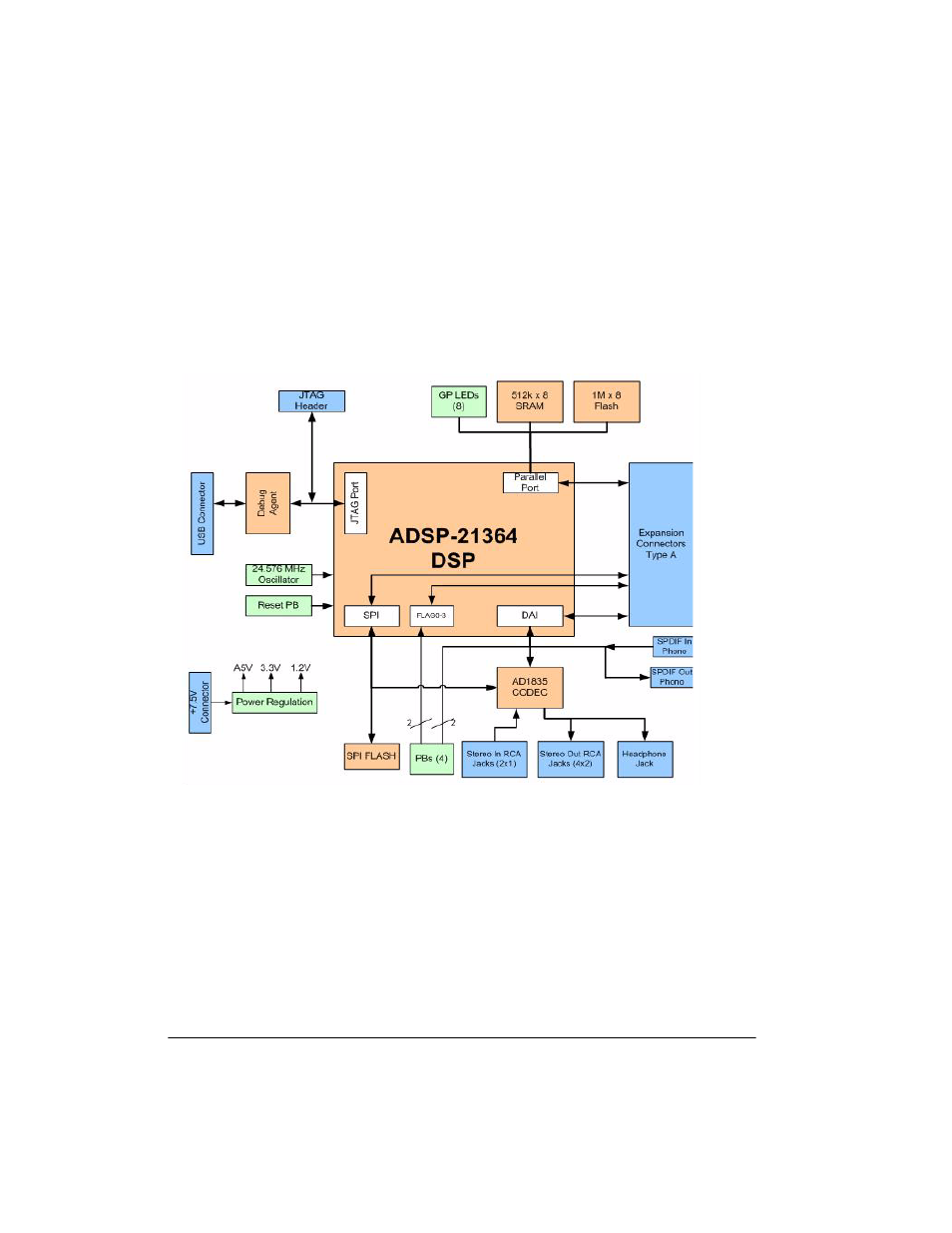

Figure 2-1. System Architecture Block Diagram
