Luminex xPONENT 3.1 Rev 2 - Manual (Page 54)

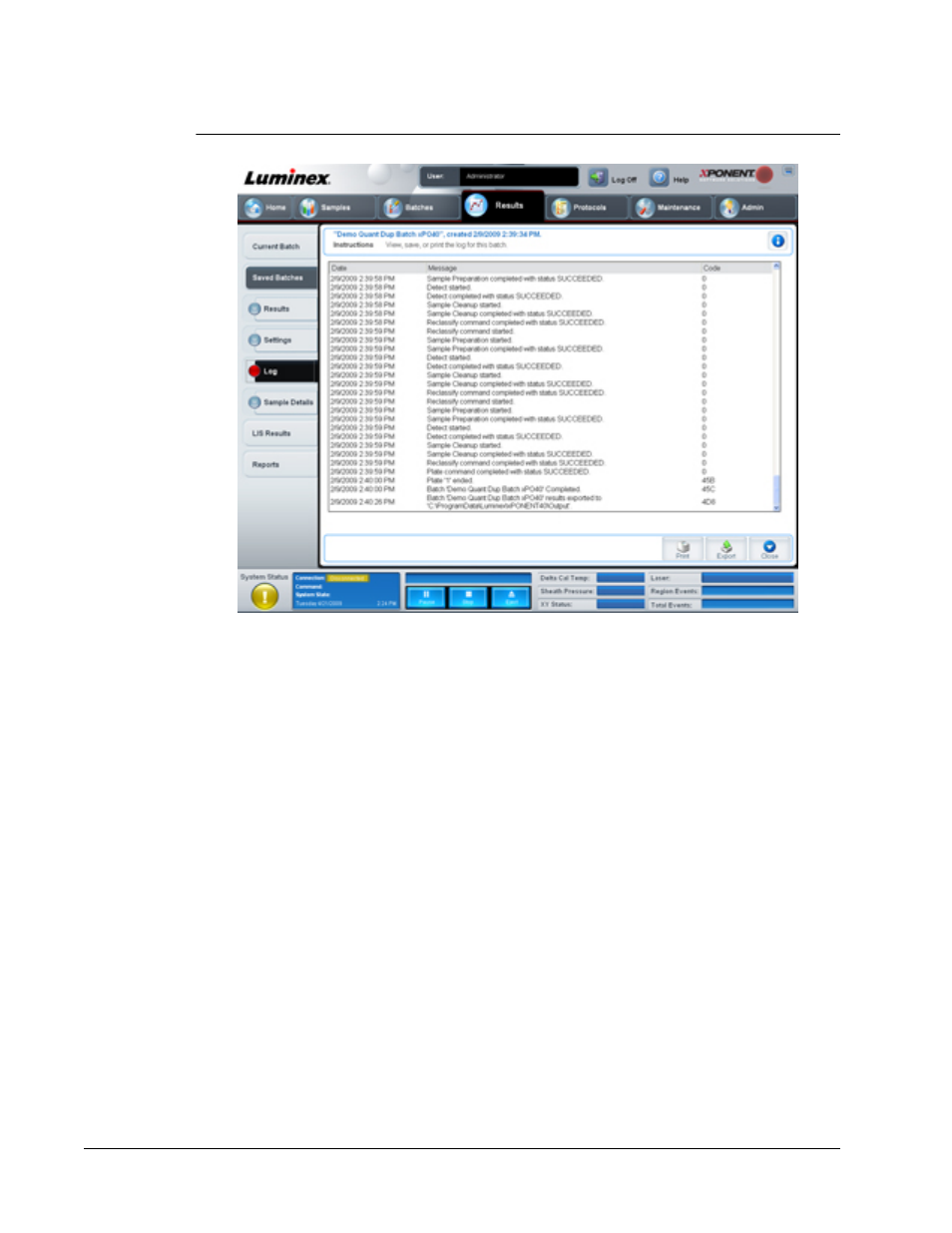

FIGURE 22. Log Tab
This tab displays the following information about each activity:
• Date
• Message
• Code
Log entries display yellow if a well was acquired but there was a possible problem. They
display red if a problem occurred during the acquisition.
Print - Prints the log.
Export - Opens the Save As dialog box to save the batch log file. Select a location and click
Save.
Close - Reopens the Saved Batches tab.
Sample Details Tab
Use this tab to view sample results.
Touring the Software
41
