Luminex xPONENT 3.1 - Manual (Page 71)

59
Touring the Software
Std/Ctrl Details Tab
The Std/Ctrl Details tab lets you create or edit a standard and control lot. You can also
group a lot as a kit.

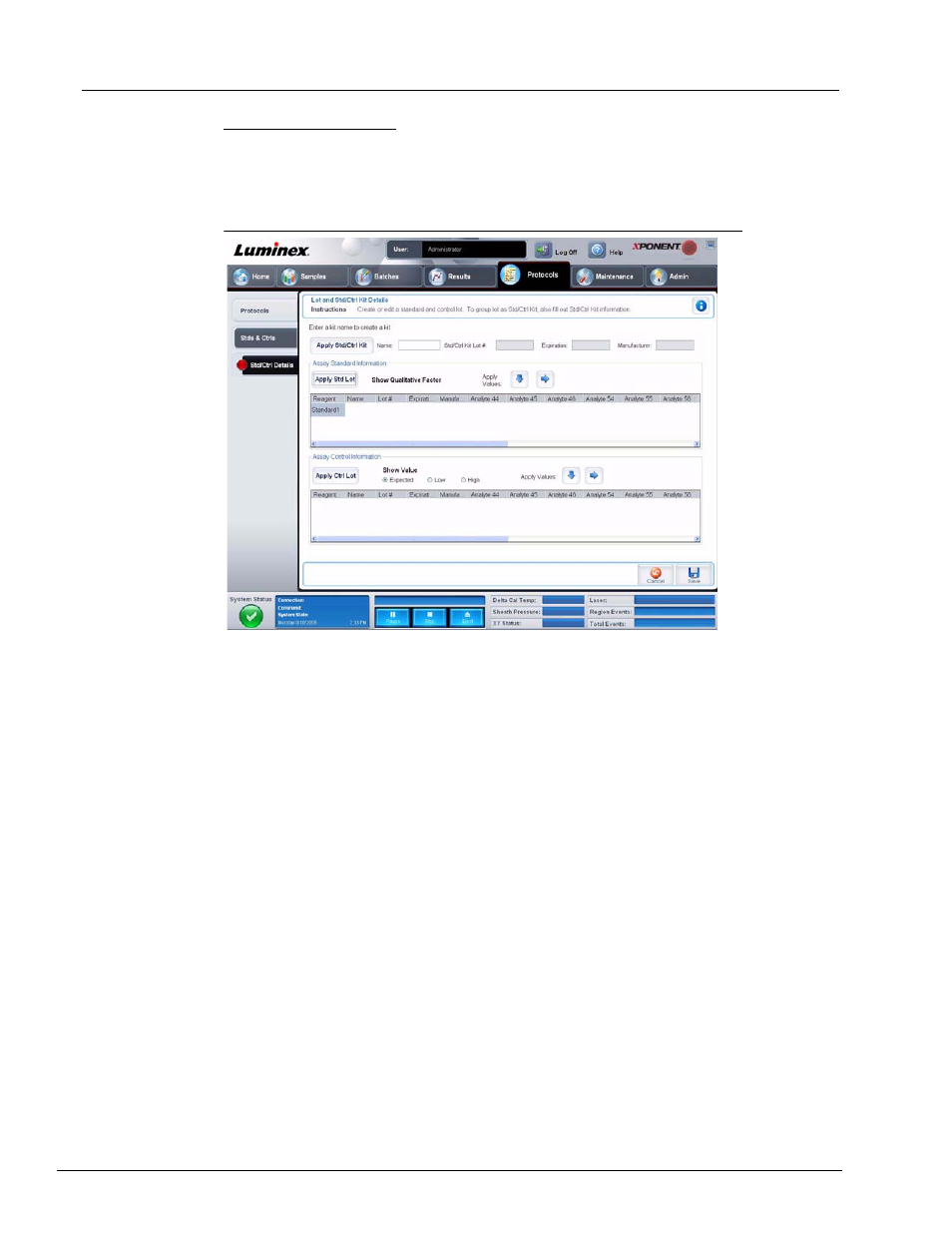

FIGURE 36. Std/Ctrl Details Tab
This tab contains the following:
Apply Std/Ctrl Kit. Opens the Select Std/Ctrl Kit dialog box. The dialog box displays the
Std/Ctrl Kit Lot #, Std/Ctrl Kit Name, Expiration, and Manufacturer for the kit. Select a
Std/Ctrl kit from the list and then click OK to close the dialog box. The kit information will
display in the boxes to the right of the Apply Std/Ctrl Kit button. The selected kit must be
associated with the same analyte names.
Manually type information by clicking in the Name, Std/Ctrl Kit Lot #, Expiration, and
Manufacturer boxes and typing the information.
Assay Standard Information. Displays the selected standard reagents in a list. The list
displays the Reagent, Name, Lot #, Expiration, Manufacturer, and expected
concentration value of each analyte.
• Apply Std Lot - Opens the Select Lot dialog box. Select a lot from the list and then
click OK to apply the lot.
• Apply Values - Applies a value across or down the Reagent, Name, Lot #,
Expiration, and Analyte fields. Type a value in these fields by double-clicking on
them, and then using one of the two Apply Values arrows to apply that value down or
across the list of analytes.
NOTE: The Dilution list and Apply Dilution button only appear if a
quantitative analysis has been selected.
• Dilution - Contains the following dilution options:
• 1:2 - Halves the standard from each previous iteration.
