23
Touring the Software
Plate Navigation. Displays a smaller plate image for the current batch.
Single Step. Instructs the system to acquire one well and then stop. Use this to ensure
the system is working correctly before you run the whole batch.
Off Plate Area. Designates an alternate location for maintenance commands in the
Commands: list. Highlight a command, and then click the reservoir in the Off Plate Area
to select a location for the command.
Save Prtcl. Opens the Save Protocol dialog box to save the protocol and or kit.

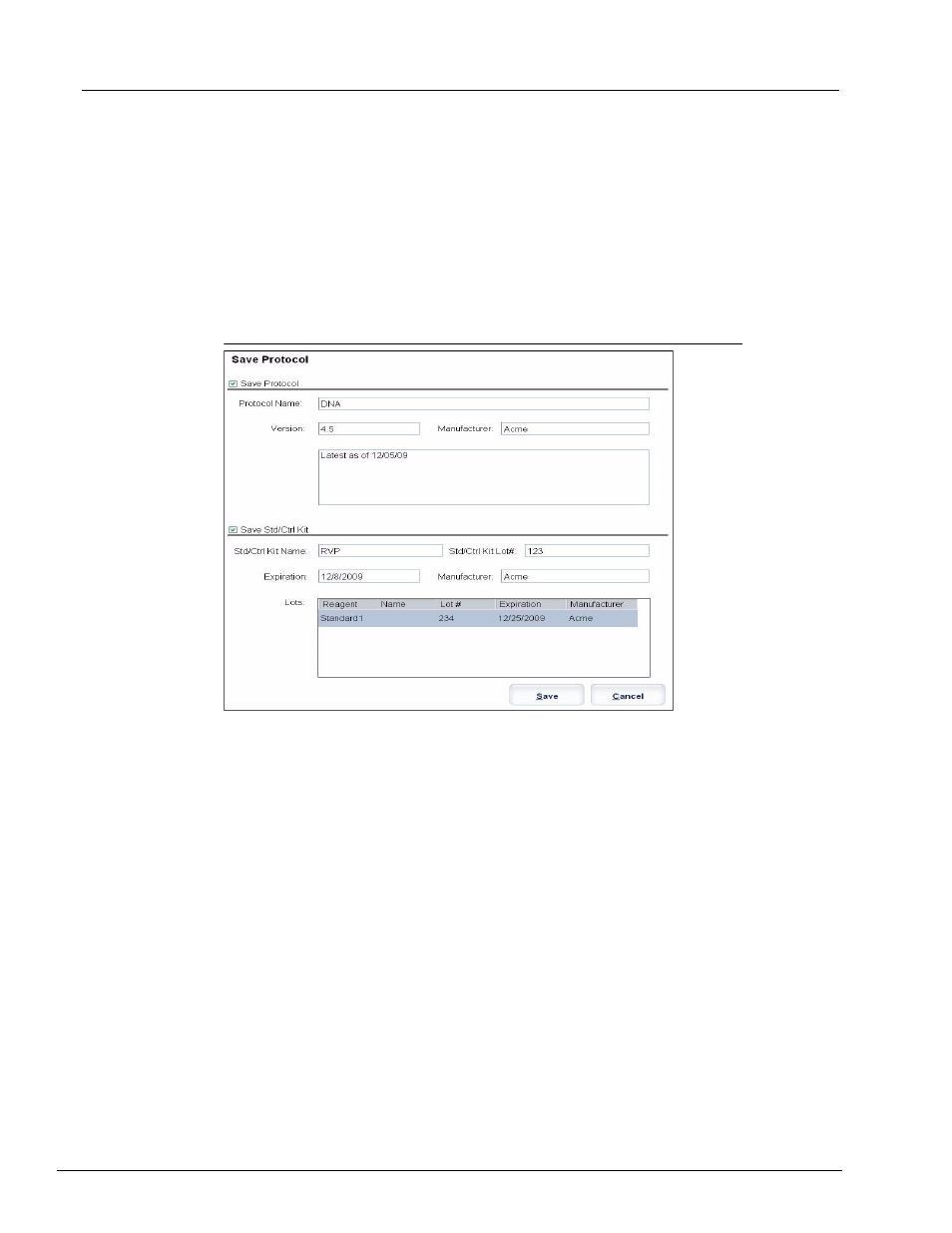

FIGURE 11.
Save Protocol Dialog Box
•
Select Save Protocol and/or Save Std/Ctrl Kit to save the protocol and/or kit.
•
Type information in the following boxes and click Save to save the protocol or kit.
•
Protocol Name
•
Version
•
Manufacturer
•
Optional Description
•
Std/Ctrl Kit Name
•
Std/Ctrl Kit Lot#
•
Expiration
•
Manufacturer
Save. Saves the information as a pending batch.
Cancel. Returns to the Batches tab.
Back. Returns to the previous window.
