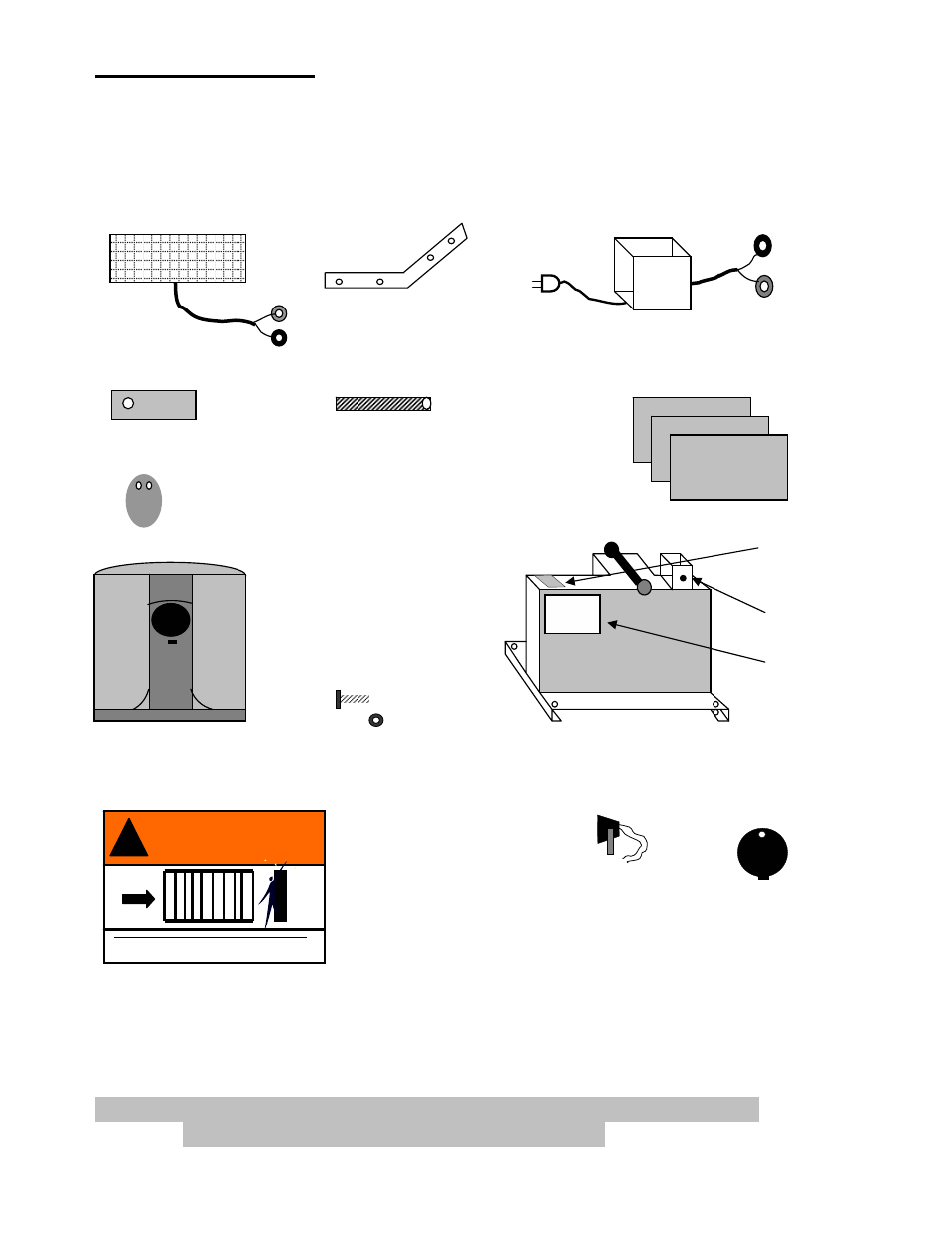

PARTS INCLUDED
The Patriot RSL slide gate operator is shipped in two separate boxes. One box contains the operator
chassis, emergency release access cover and the operator cover. The second box contains charging device
(with bracket for solar), secondary entrapment siren, chain brackets, chain, transmitter, chain adjustment
bolts, and the installation/user manual with safety placards.
5 watt Solar Panel and
Bracket OR
Chain Bracket
2 supplied
2”x6” (1/2” hole)
CHAIN #41
3 – 10’ boxes
4 – Master links
UV treated
Polyethylene Cover
4 – ¼” bolts/washers
! WARNING
A MOVING GATE HAS THE POTENTIAL OF INFLICTING SERIOUS INJURY OR DEATH
Persons are to keep clear! The gate is able to be moved without prior warning.
Do not let children operate the gate or play in the gate area.
Persons are to operate the gate only when the gate area is in sight and free of people and obstructions.
•
Placards (Two supplied) should be visible from inside and outside of gate.
NOTE: 12 Volt DC deep cycle battery (33-amp hour minimum) required.
(Not Included) Gel or AGM type recommended
Safety Placards
2 supplied.
Battery
Charger
2- ½” x 6” Chain Adjustment
Bolts
4- ½ inch Nuts
Secondary
Entrapment
Siren +12vdc
2 push in
Emergency release
access cover
1 – cover, screw and nut
Low Current
Receiver
Gear motor
Patriot Control
Board
Operator Chassis
1- 2 button
Transmitter
