SAFETY SECTION
Remedies for Safety Concerns
Zone 4
This area is best protected with a photo eye or contact edge wired to the secondary entrapment
input or safety loop input depending on the desired function of the safety device. The beam should
be installed parallel to the gate and extend across the drive area to prevent the gate from closing or
opening on an object in the path of the gate. If the intent of the beam is to prevent the gate from
closing when an object is present. Wire the photo eye to safety loop input on the control board.
Zone 5
Safety edges and photo eyes are the most common types of protection available. The safety device
used should be wired to the secondary entrapment input.
Every installation is unique and it is the installer's responsibility to recognize and remedy all safety concerns.
Please consult a qualified dealer or the factory for a complete explanation of the remedies shown above and
additional tips pertaining to your installation.

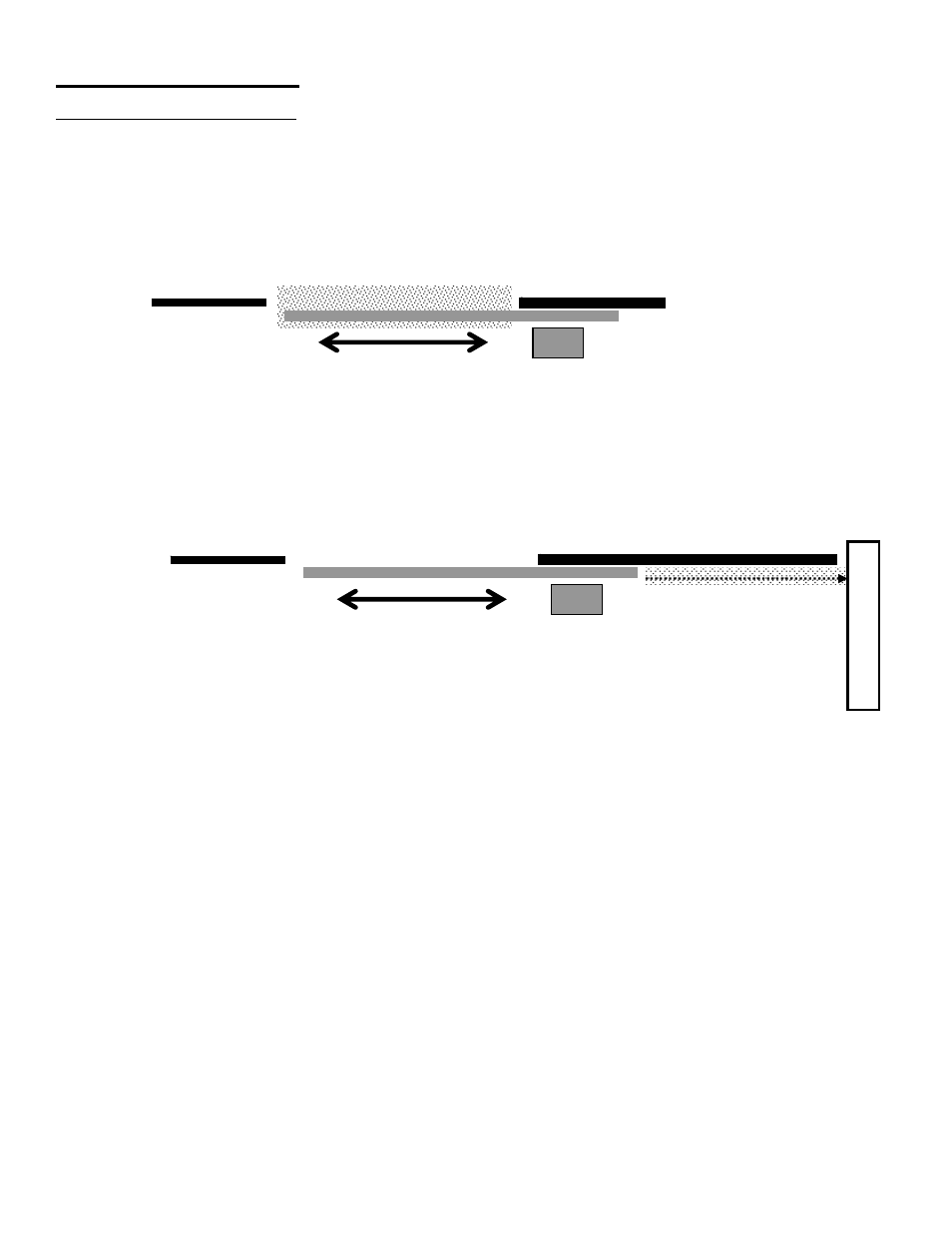

Zone 4
O
B
J
E
C
T
GATE
Entrapment area
see safety section page
19 part a, 1 through 4.
