16

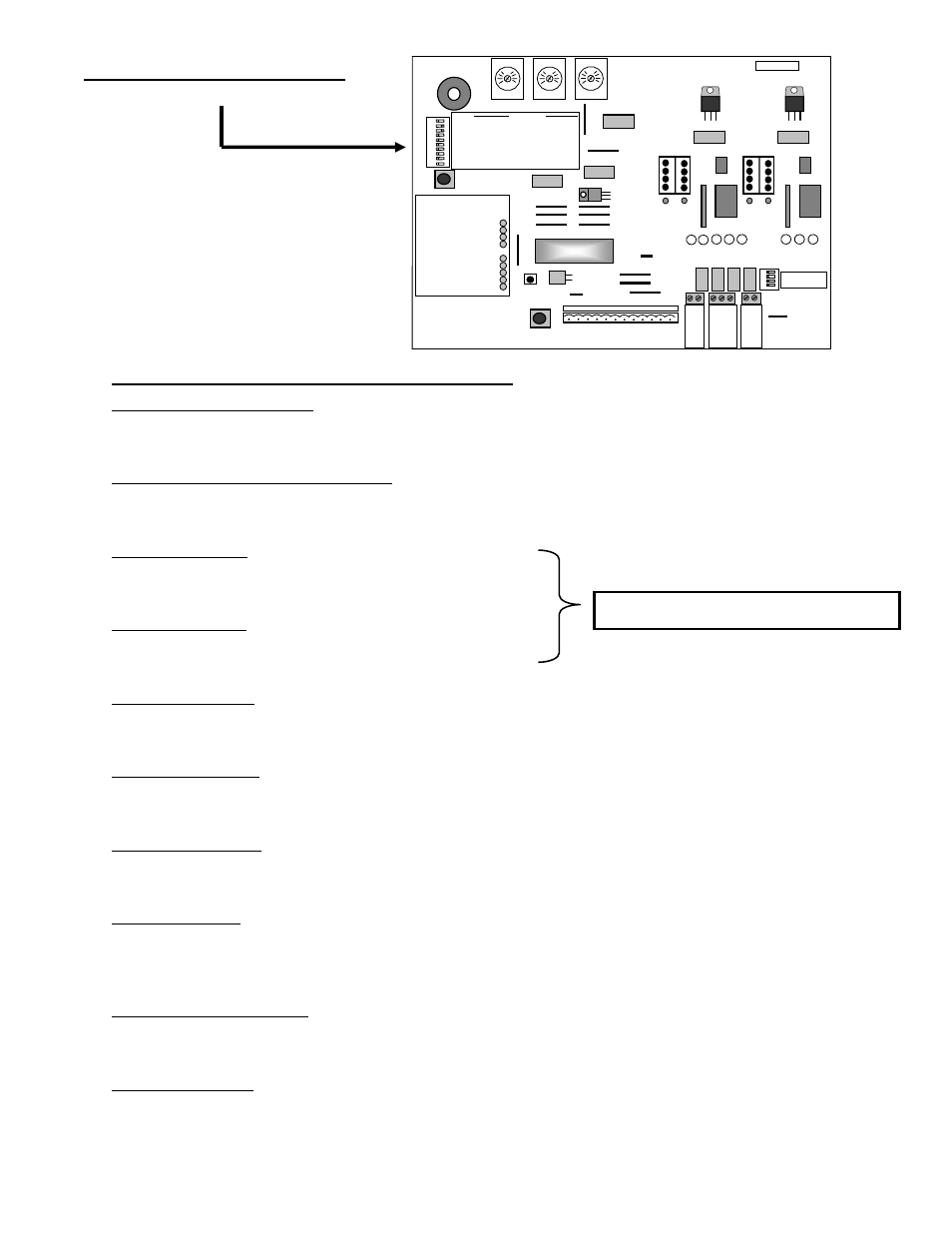

DS1 Programming Switches










Factory settings are shown in bold italic type

1 Automatic close timer enable

ON

Timer to close is activated (Safety accessories recommended if turned on)

OFF

Timer to close is disabled

2 Timer to close will activate on limit only

ON

Timer to close activates only if open limit is activated

OFF

Timer to close works from any point the gate is stopped

3 Master Gate Enable

ON

Master gate operator enabled to function

OFF

Master gate operator disabled

4 Slave Gate Enabled

ON

Slave gate operator enabled to function

OFF

Slave gate operator disabled

5 Solenoid lock option
ON

In addition to solenoid lock DS2, outputs 12vdc when gate is moving

OFF

Disables 12vdc output when gate is moving

6 Soft stop open enable (Right hand installation, if switch 9 is on then close enable)

ON

Enables soft stop for open position

OFF

Disables soft stop for open position

7 Soft stop close enable (Right hand installation, if switch 9 is on then open enable)

ON

Enables soft stop for extend position

OFF

Disables soft stop for extend position

8 Stop circuit enable

ON

Allows for a stop button input to be utilized

* a normally closed pushbutton is required

OFF

Disables the stop button function

9 Operating Direction Reverse

ON

Left Hand Slider installation (See note bottom page 11)

OFF

Right Hand Slider Installation

10

Not used at this time

ON

N/A

OFF N/A

Siren Output

OPEN/CLOSE
COMMAND

Vehicular Gate Operator

Gate Weight Max. Load: 650 lbs.

LED INDICATOR

S2

RESET

Entrapment

S
E
C
U
R
I
T
Y

S
H
U
N
T

C
O
M
M
O
N

G
N
D

M
A
G
L
O
C
K

S
O
L
O
N
O
I
D
L
O
C
K

C
O
M
M
O
N

G
N
D

O
U
T
P
U
T
+
1
2
V

O
N

2
3
4

1

SOLONOID LOCK ENABLE
MAGNETIC LOCK ENABLE
SECURITY SHUNT ENABLE
MOTION DETECTOR ENABLE

15

5

0

10

TIMER TO CLOSE

ADJUSTMENT

Timer

ADJUSTMENT

Class I or Class II per UL325

J2

INDICATORS

1-

+12V OUT 1.5 AMP MAX


2- COMMON

GROUND


3-

PUSH BUTTON INPUT


4-

OPEN SAFETY EDGE


5- CLOSE

INPUT


6-

SECONDARY ENTRAPMENT DEVICE INPUT


7- COMMON

GROUND


8-

STOP CIRCUIT INPUT N/C


9-

FREE EXIT / OPEN INPUT


10-

UNDER GATE / CENTER LOOP INPUT


11-

SAFETY LOOP / REVERSING EDGE INPUT


12-

MOTION DETECTOR INPUT

1

2

3

4

5

6

7

8

9 10 11 12

J2

BOTH ON FOR DUAL

DS1 SWITCH SETTINGS

FACTORY SETTINGS

SW-1

AUTO CLOSE TIMER ENABLE

OFF

SW-2

TIMER TO CLOSE WILL ACTIVATE ON LIMIT ONLY

ON

SW-3

MASTER GATE ENABLE

ON

SW-4

SLAVE GATE ENABLE

OFF

SW-5

SOLENOID LOCK OPTION, SEE INSTALLATION MANUAL

OFF

SW-6

SOFT STOP RETRACT ENABLE

OFF

SW-7

SOFT STOP EXTEND ENABLE

OFF

SW-8

STOP CIRCUIT ENABLE

OFF

SW-9

OPERATING DIRECTION REVERSE

OFF

SW-10

SOFT START ENABLE FOR SW6 AND SW7

OFF

1
2
3
4
5
6
7
8
9
10

O
N

DS1

PATRIOT CONTROL BOARD

USAutomatic

MADE IN USA

CURRENT SENSE
ADJUSTMENT

0

10

5

MASTER

Sensitivity

CURRENT SENSE
ADJUSTMENT

0

10

5

SLAVE

Sensitivity

15

Both must be on for dual gate operation
