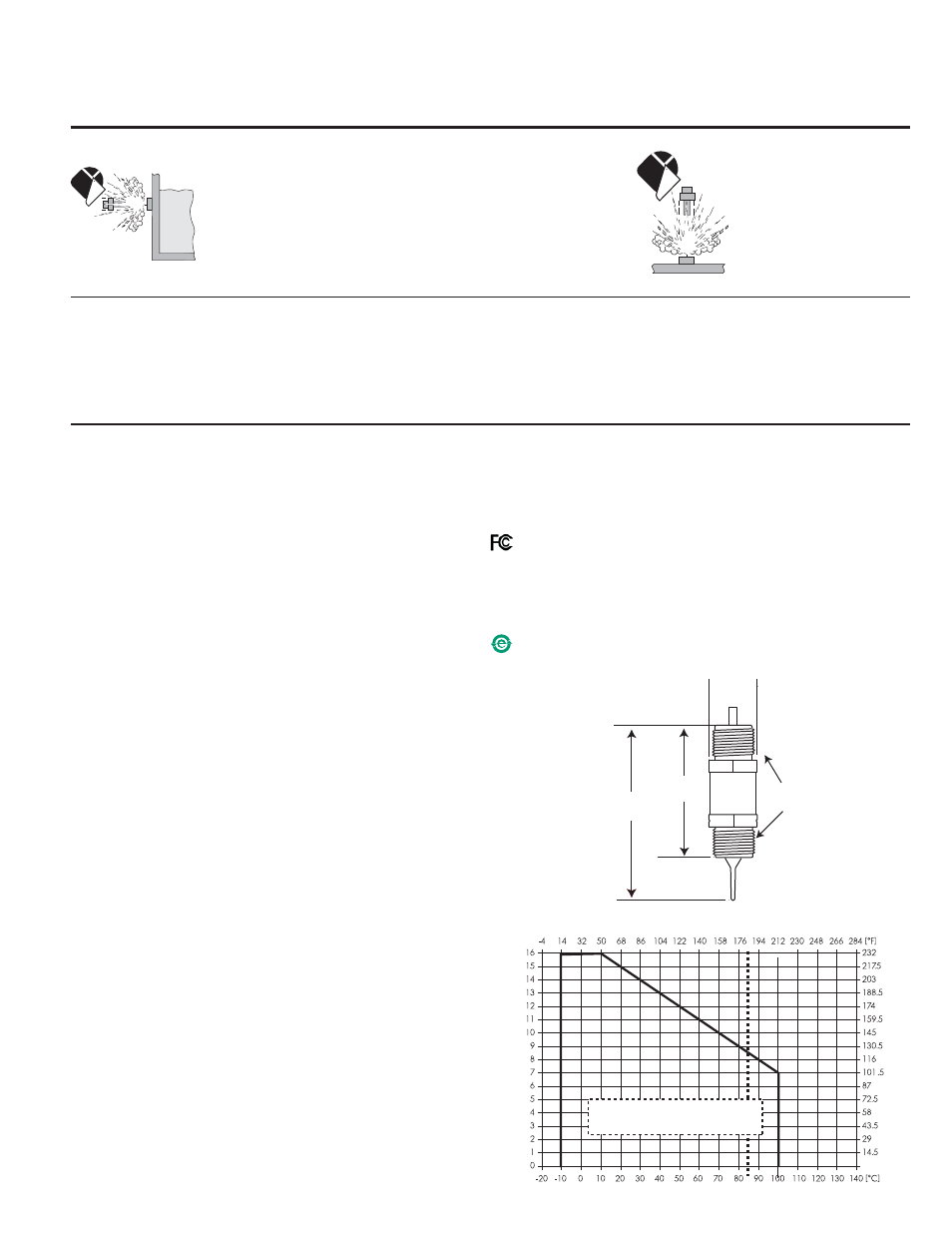

Signet 2350 temperature sensor, Application limits, Description

background image

Safety Instructions
1. Prior to installation or removal:

• Depressurize and vent system
• Drain below sensor level

2. Confi rm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifi cations.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. Dispose of properly; DO NOT INCINERATE!

Signet 2350 Temperature Sensor

1. Description

The Signet 2350 Temperature Sensor has a one-piece injection molded PVDF body that is ideal for use in high purity applications. It
also outlasts metal sensors in aggressive liquids and eliminates the need for costly custom thermowells. These sensors are available
with Digital (S

3

L) or fi eld-scaleable 4 to 20 mA output. Dual threaded ends (

3

/

4

in. NPT) allow submersion in process vessels, or in-line

installation with conduit connection. Integral adapters (sold separately) may be used to create a compact assembly with fi eld mount
versions of the 8350 Temperature Transmitter.

2. Specifi cations

Dimensions

General
Compatibility:

Signet 8350 Temperature Transmitters

Signet 8900 Multi-Parameter Controller

Signet

9900

Transmitter

Wetted material:

PVDF

Measurement range:
• In-line installation:

-10 °C to 100 °C (14 °F to 212 °F)

• Submersible installation: -10 °C to 85 °C (14 °F to 185 °F)
Response time,

:

10 seconds

Process connection:

3

/

4

in. NPT male thread

Rear connection:

3

/

4

in. NPT male thread

Cable type:

3 cond + shield, 22 AWG

Standard cable length:

4.6 m (15 ft)

Shipping weight:

0.22 kg (0.5 lb)

Electrical
Power requirements:
• (S

3

L) models:

5 VDC ±10%, <1.5 mA

• 4 to 20 mA models:

12-24 VDC ±10%

Short circuit & reverse polarity protected
Digital (S

3

L) output:

Serial ASCII, TTL level 9600 bps

• Accuracy:

±0.5 °C (±0.9 °F)

• Repeatability:

±0.1 °C (±0.2 °F)

• Resolution:

0.01 °C (0.02 °F)

• Update rate:

<100 ms

4 to 20 mA output:
• Accuracy:

±32 μA

• Repeatability:

±0.1 °C (±0.2 °F)

• Resolution:

<5 μA

• Factory Span:

0 °C to 100 °C, fi eld-scaleable.

• Max loop impedance:

50 Ω @ 12 V

325

Ω @ 18 V

600

Ω @ 24 V

• Update rate:

<100 ms

Environmental
• Relative humidity:

0 to 95% (Non-condensing)

• Storage temperature:

-55 °C to 100 °C (-67 °F to 212 °F)

Table of Contents
1. Description
2. Specifi cations
3. Installation
4. Digital (S

3

L) wiring

5. 4 to 20 mA wiring
6. 4 to 20 mA
span

adjustment

7. Ordering information

109 mm

(4.27 in.)

82 mm

(3.22 in.)

¾ in. NPT

30 mm

(1.18 in.)

Submersible installations
are limited to 85 °C (185 °F)

Application Limits

Pressure (bar)

Pressure (psi)

Temperature

3-2350.090-1 Rev. K 03/13 English

*3-2350.090-1*

English

Approvals & Standards
• CE
• RoHS Compliant
• Manufactured under ISO 9001 for Quality,

ISO 14001 for Environmental Management and
OHSAS 18001 for Occupational Health and Safety.

Declaration of Conformity according to FCC Part 15.

This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received,
including interference that may cause undesired operation.

China RoHS (Go to www.gfsignet.com for details)
