GF Signet 2270 Ultrasonic Level Sensor - Manual (Page 4)

Ordering Information
Mfr. Part No. Code Description
Versions with BSP thread
2270-P-1B-4
159 300 155 Range 4 m, PP body, 4 to 20 mA 2-wire/HART, BSP thread
2270-P-1B-6 159 300 156 Range 6 m, PP body, 4 to 20 mA 2-wire/HART, BSP thread
2270-V-1B-4 159 300 162 Range 4 m, PVDF body, 4 to 20 mA 2-wire/HART, BSP thread
2270-V-1B-6 159 300 163 Range 6 m, PVDF body, 4 to 20 mA 2-wire/HART, BSP thread
Versions with NPT thread
2270-P-1N-4
159 300 169 Range 4 m, PP body, 4 to 20 mA 2-wire/HART, NPT thread
2270-P-1N-6 159 300 170 Range 6 m, PP body, 4 to 20 mA 2-wire/HART, NPT thread
2270-V-1N-4 159 300 176 Range 4 m, PVDF body, 4 to 20 mA 2-wire/HART, NPT thread
2270-V-1N-6 159 300 177 Range 6 m, PVDF body, 4 to 20 mA 2-wire/HART, NPT thread

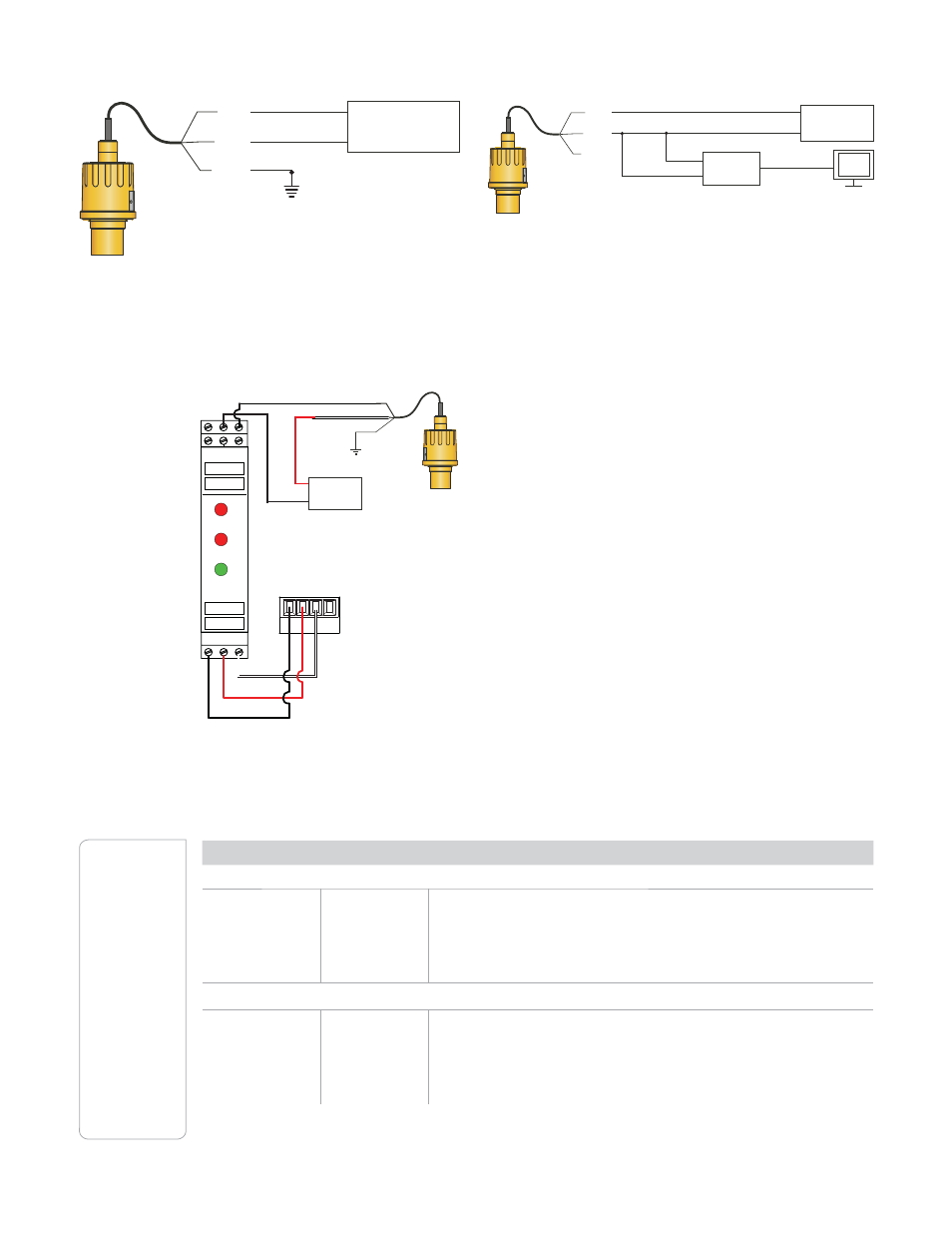

4 to 20 mA Loop Wiring HART Interface Wiring
Wiring to 9900 Universal Transmitter
White
Brown
Black
4 to 20 mA loop
+
-
Power Supply
White
Brown
Black
3 2 1
6 5 4
7 8 9
Loop1
PWR
N/C
S L
DATA
3
Loop2
PWR
+GF+ SIGNET
8058 iGo
Signal Converter
DA
T
A
GND
V+
SHLD
BLACK
WHITE
RED
9900 S 3 L
Terminals
+
-
Power
Supply Red
Black
White
Brown
Black
4 to 20 mA loop
+
-
Power Supply 5ȍ
HART
Modem
PC
USB Interface
