6
Description
Type 8025 UNIVERSAL
5 DEScRIpTIoN
5.1 Area of application
The▶transmitter▶8025▶Universal▶can▶be▶connected▶to▶a▶remote▶flow▶
sensor▶which▶emits▶a▶frequency▶signal.▶The▶specifications▶of▶the▶flow▶
sensor▶which▶can▶be▶connected▶to▶the▶transmitter▶are▶described▶in▶
chapter▶„6▶Technical▶data“.
When▶connected▶to▶a▶flow▶sensor,▶the▶device▶makes▶it▶possible▶to▶
switch▶a▶solenoid▶valve,▶activate▶an▶alarm▶or▶generate▶a▶flow▶rate▶pro-
portional▶frequency,▶thanks▶to▶a▶transistor▶output▶and,▶for▶some▶versions,▶
by▶means▶of▶two▶relay▶outputs,▶fully▶configurable,▶and▶to▶establish▶a▶
control▶loop▶thanks▶to▶a▶4-20▶mA▶current▶output.
5.2 Description of the name plate
LFLOW 8025 PANEL SUPPLY: 12-36V= 210 mA
DO1: 5-36V= 100mA AO1:4-20mA
DO2&3: 2xRelay 30 and 42V peak or 60V... max. IP20
S/N 20 000
00564417 W46MA
M
ade in Franc
e
1
10
6
7 8 11 12
3 5
9
4 2
1.▶ Measured▶value
2.▶ Type▶of▶the▶device,▶housing
3.▶ Specifications▶of▶the▶transistor▶output▶DO1
4.▶ Specifications▶of▶the▶analogue▶output▶AO1▶
5.▶ Supply▶voltage▶and▶max.▶current▶consumption
6.▶ Protection▶class▶of▶the▶device
7.▶ Manufacturing▶code
8.▶ Conformity▶logos
9.▶ Warning:▶Before▶using▶the▶device,▶take▶into▶account▶the▶tech-
nical▶specifications▶described▶in▶these▶operating▶instructions.
10.▶Specifications▶of▶the▶relay▶outputs▶DO2▶and▶DO3
11.▶Serial▶number
12.▶Order▶code

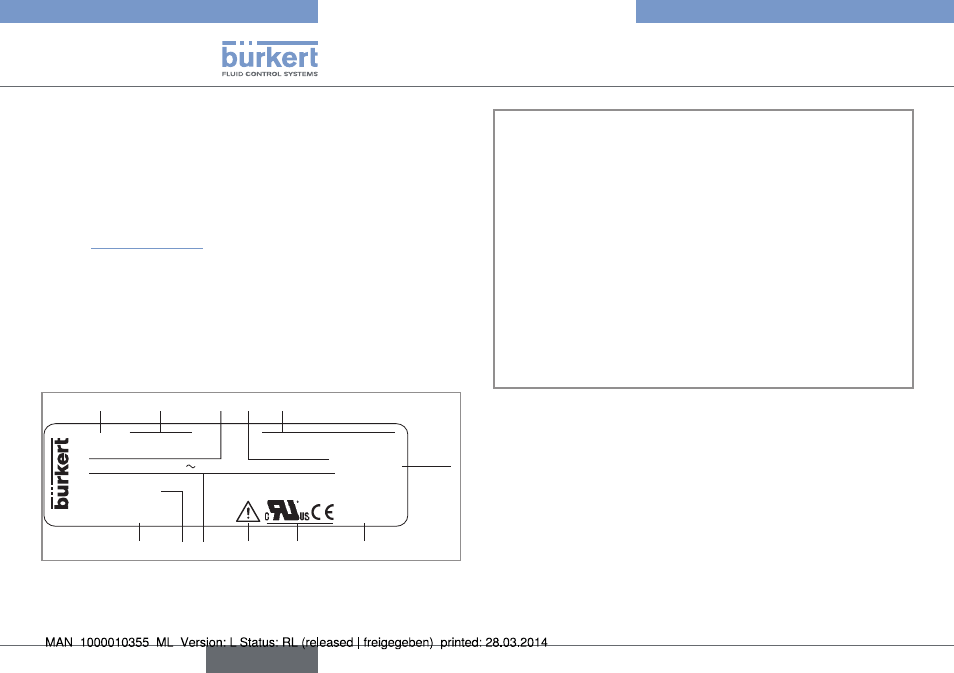

Fig. 1: Name plate of transmitter 8025 Universal (example)
English
