Section 2 Installation
2-19-5 Alarm Output (Analog I/O versions only)
The Alarm Output is an open collector or "contact" type that is CLOSED
(on) whenever an alarm is active. The Alarm Output may be set to indicaqte
any one of various conditions.

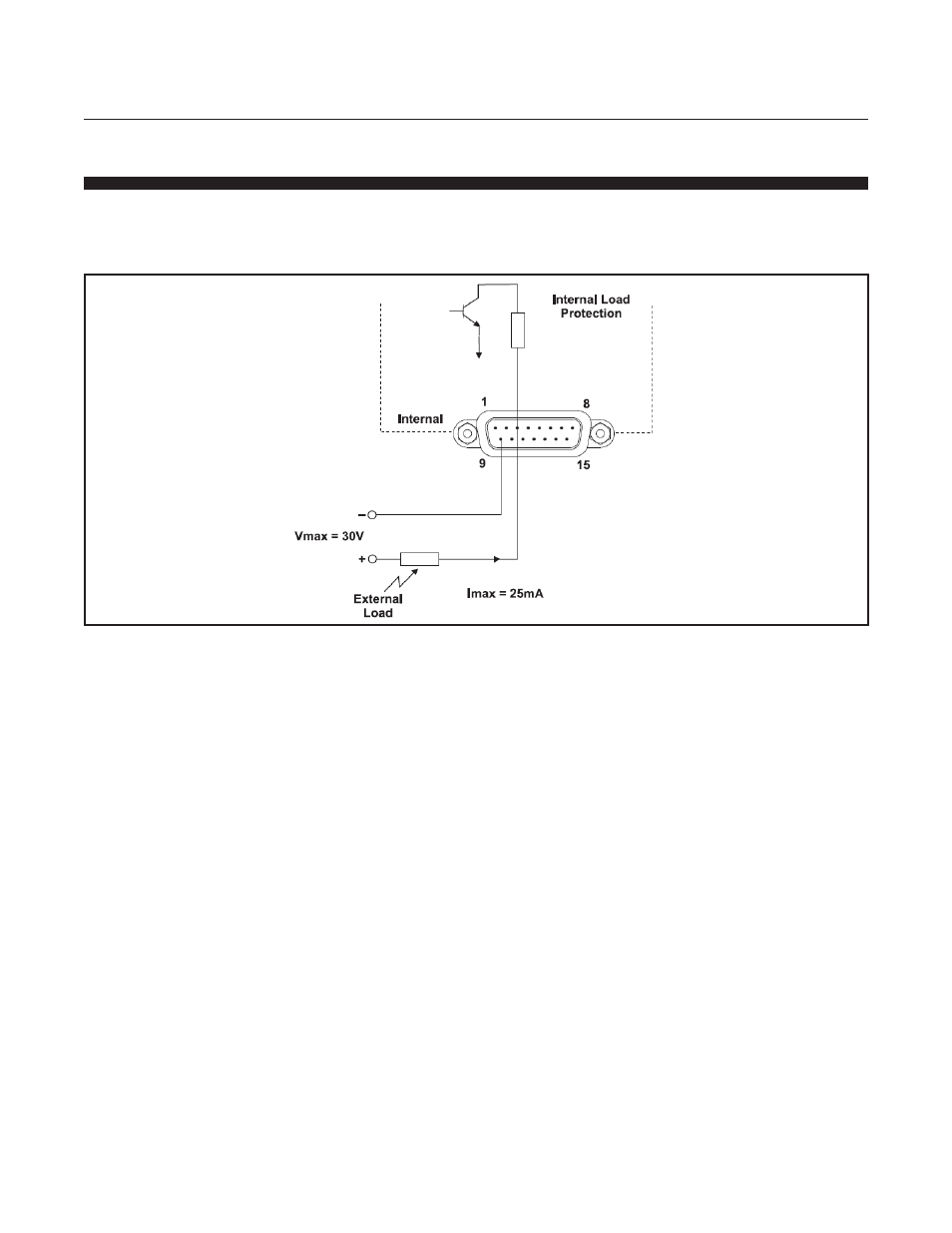

Figure 2-12 Alarm Output Schematic
