2-14
Brooks
®
GF40/GF80/GF81 Devices
Installation and Operation Manual
X-TMF-GF40-GF80-Series-MFC-eng
Part Number: 541B161AAG
June, 2013
Section 2 Installation
2-19-3 Profibus Connections
The GF40/GF80/GF81 Series devices are available with the Profibus
connections as shown in Figure 2-10.

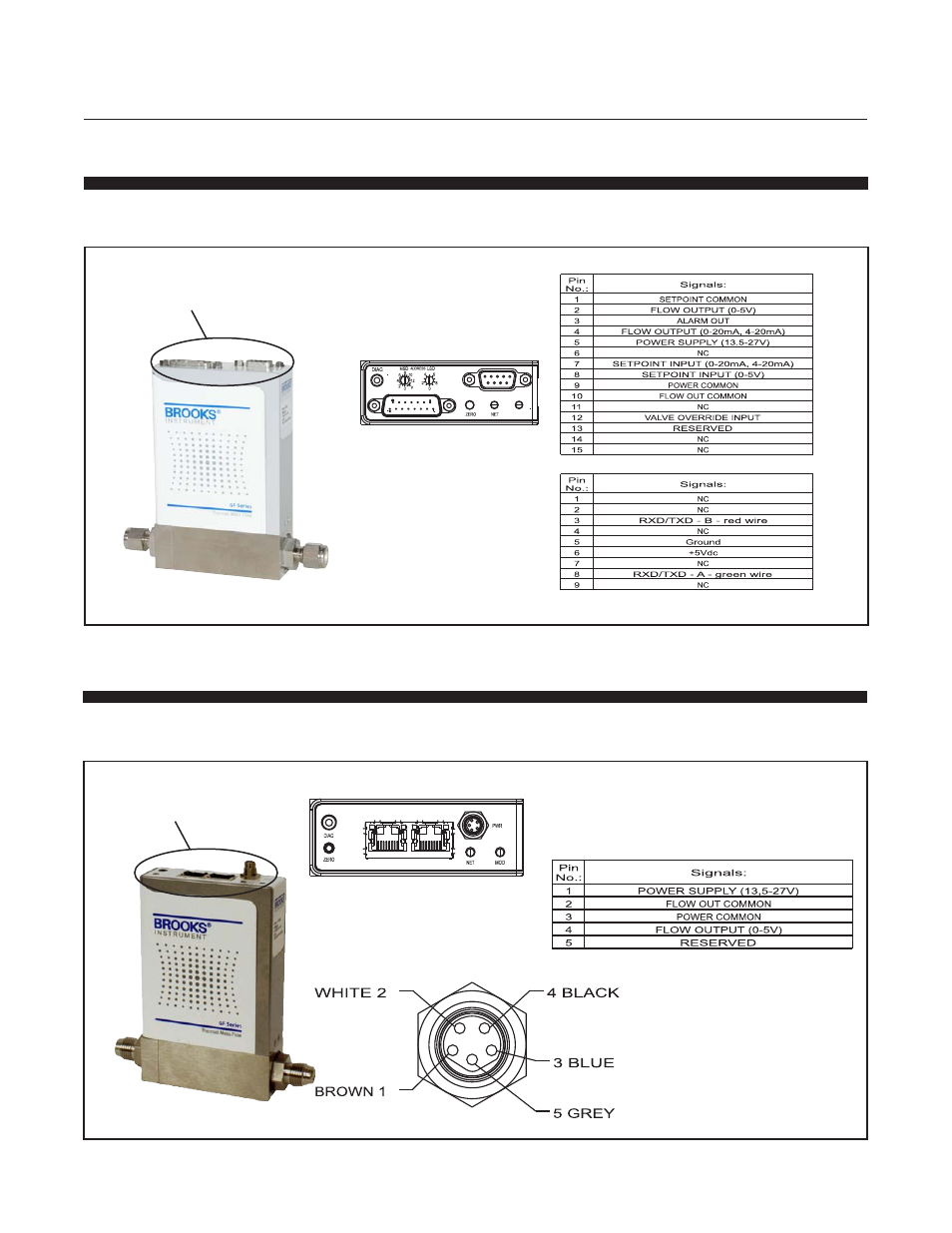

Figure 2-10 GF40/GF80/GF81 Series Profibus Connections and Pinouts
Profibus
Connectors
2-19-4 EtherCAT Connections
The GF40/GF80 Series devices are available with the EtherCAT
connections as shown in Figure 2-11.
Figure 2-11 GF40/GF80 Series EtherCAT Connections and Pinouts
EtherCAT
Connectors
