Draw-Tite 59550 CARGO CARRIER - PREMIUM FOLDING User Manual
Page 3
Product Code:
Product Name:

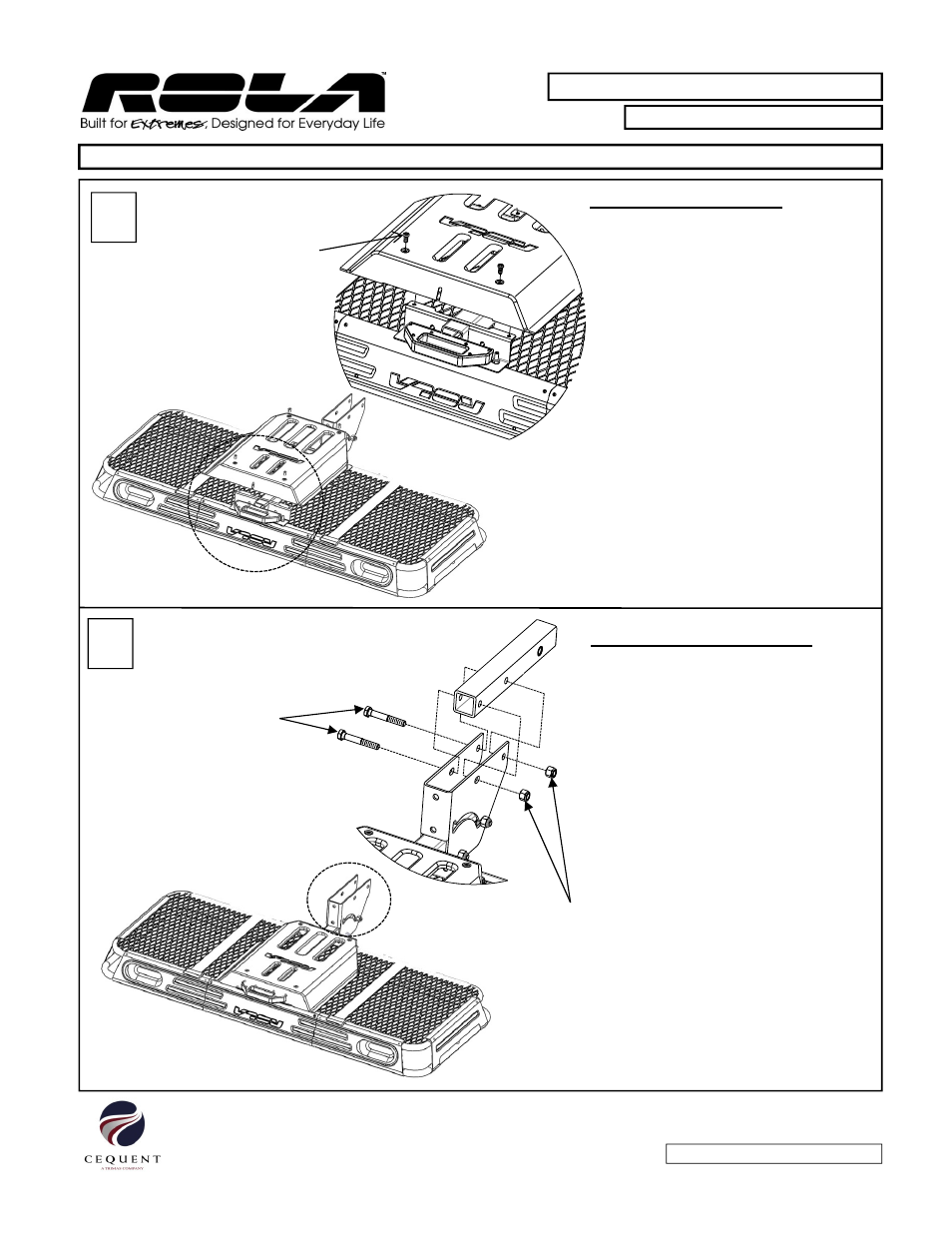

ATTACH BOTTOM PANEL
•
Use (4) four M6 pan head screws to
attach the bottom cover to basket as
shown.
M6-1.0 x 18mm
Pan head screw
(4) places
4
Please read all instructions carefully before assembly, installation and/or use of this product.
59550
DART CARGO BASKET
www.rolaproducts.com
Cequent Performance Products, Inc.
Plymouth, MI 48170
59550N Rev E 5-1-12
ATTACH SHANK TO BASKET
•
Align the 2” square shank tube with
basket shank assembly as shown.
•
Install the (2) two ½-13 x 3-1/4” hex
bolts through bracket, tube, and
spacer.
•
Install (2) two ½” lock nuts and
tighten to 50 ft•lb
5
½-13 x 3-1/4” Hex Bolt
(2) Places
½-13 Lock Nut
(2) Places
Printed in China
