5-2. WORKING WITH THE RCS

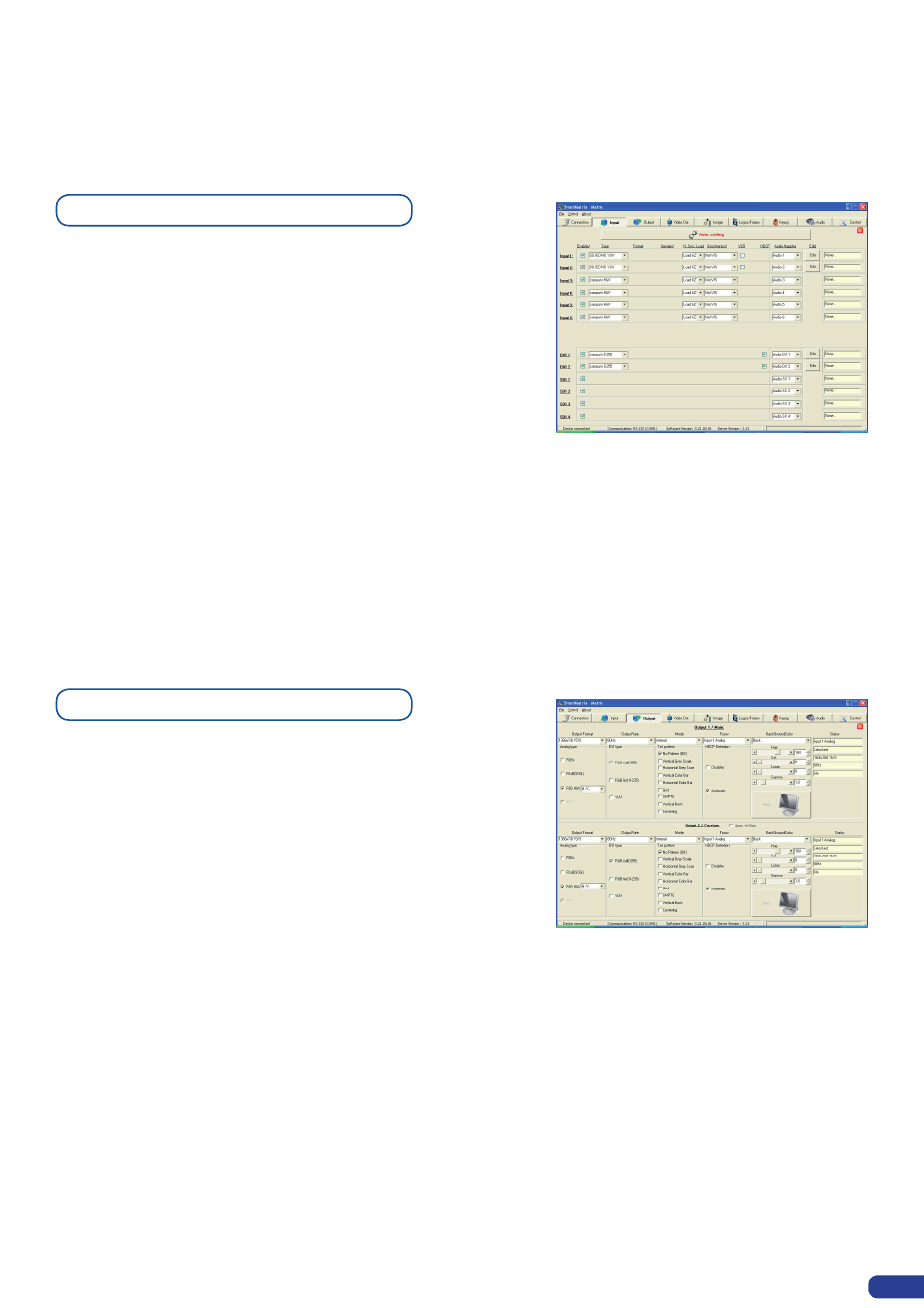

Source input configuration
Once your Smart MatriX is wired up to your PC, the first step
in properly configuring your machine is to individually select and
parameter your inputs.
1. Click on the “Inputs” tab of the RCS.
2. In the Plug column of the “Input” page, select the plug type by
clicking the appropriate field.
3. Activate the input in the Enabled column if it is not.
4. In the scroll-down menu of the Type column, select the signal type connected to that plug.
5. Repeat steps 2 to 4 for all sources connected to the rear panel of your Smart MatriX.
6. Click on the “Inputs” tab to return to the main screen.
Source output configuration
1. Click on the “Outputs” tab of the RCS.
2. Select the type of plug which is connected to outputs # 1 &
# 2 of your Smart MatriX by clicking in the appropriate field in
Analog Type or DVI Type for both Main and Preview outputs.
3. Select the appropriate output format and output rate.
4. Click on the “Outputs” tab to return to the main screen.
The Output menu also allows you to generate test patterns. The test patterns available through the Output
menu let you quickly and reliably setup your projectors.
* NOTE * : Be sure to turn the test pattern off to display your sources again.
