Outputs #1 and #2
The
Smart MatriX rear panel is equipped with 12 universal digital and analog inputs. Inputs #1 through #4
(3) are universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the
included Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).
The outputs (6) will allow for the
Smart MatriX high resolution digital and analog signals to be viewed on
screen and/or on a preview monitor (see also Output Specifications in this chapter).
The extra Video Out card installed on the
Smart MatriX, can be used for recording, broadcasting or previewing
purposes in a wide range of formats for maximum compatibility with industry viewing or recording equipment.
Finally, the audio in and output card will let users mix audio with any source, accurately balance or tweak
sound sources and outputs.
1 : AC outlet and on/off switch
2 : IP-LAN connector
3 : Universal Computer/TV/HDTV inputs
4 : DVI-D inputs
5 : HD-SDI inputs
6 : Analog and DVI outputs #1 & #2
7 : SD-HD/SDI output
8 : SD/HDTV output
9 : Audio inputs
10 : Audio outputs
11 : RS-232 connector
12 : Serial #

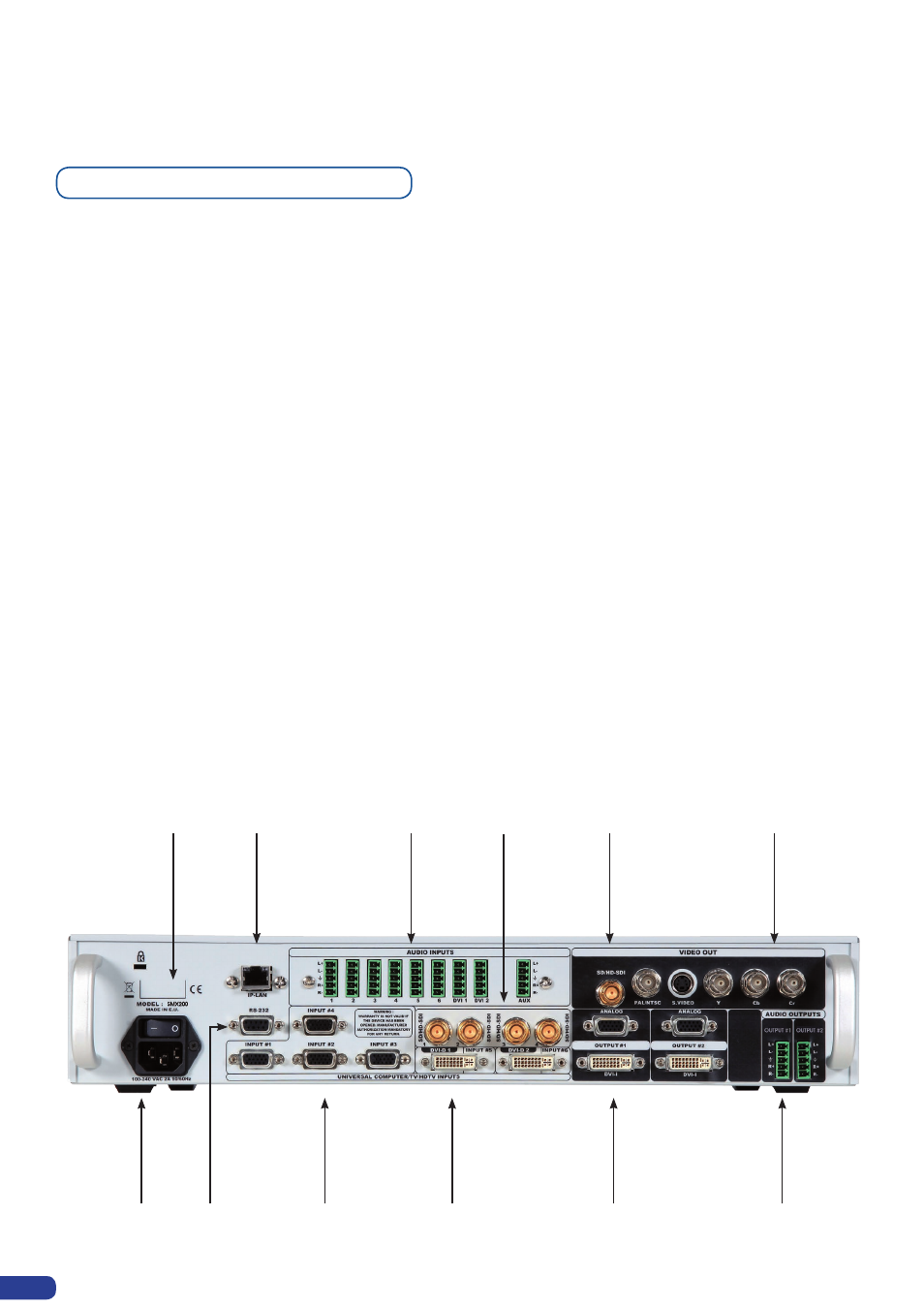

3-2. THE SMART MATRIX REAR PANEL
1
3
4
6
10
11
2
12
9
7
5
8
