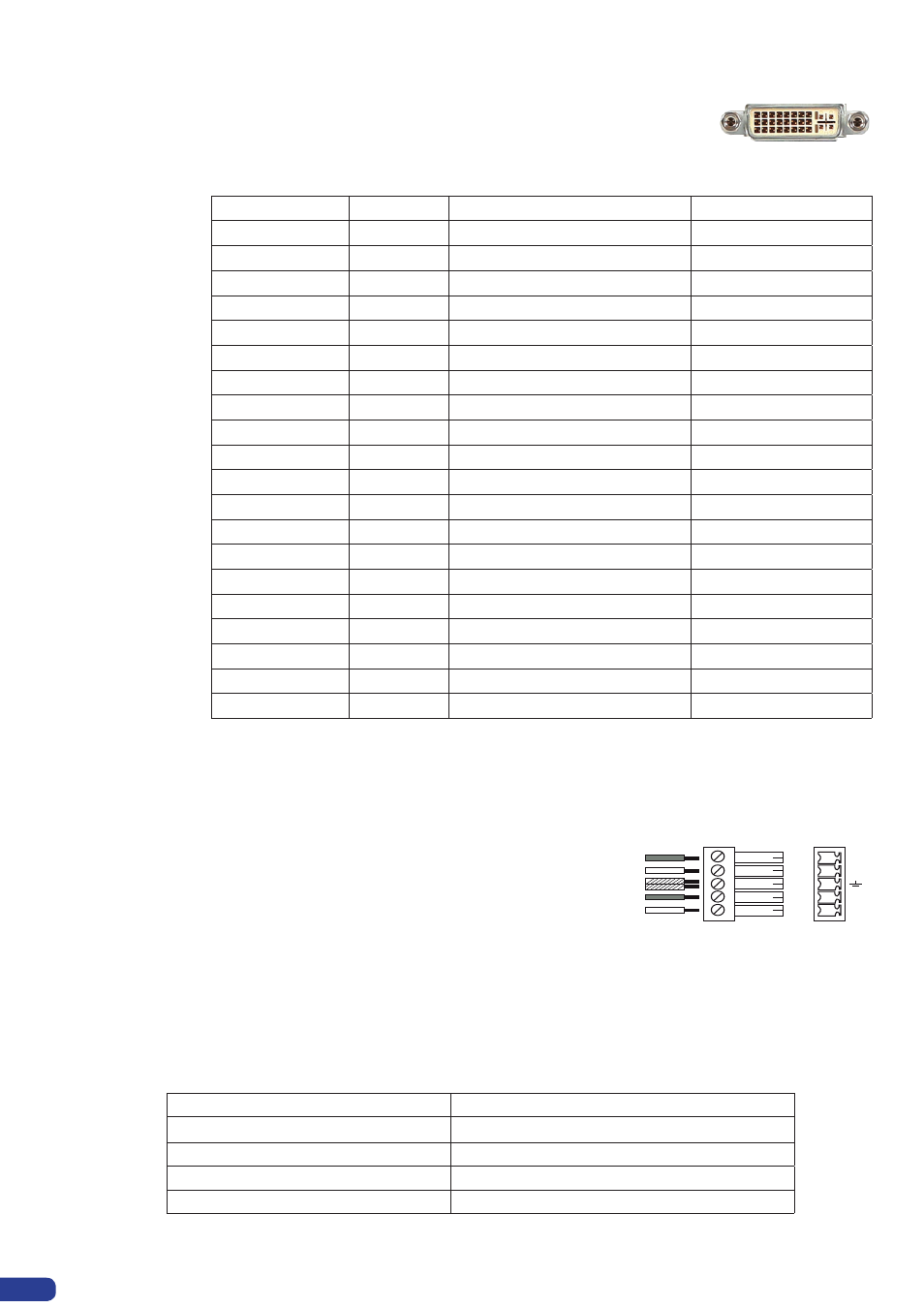

• DVI (Digital Video Interface) OUTPUTS
Connector: Outputs #1 & #2: female DVI-I (digital pins).
Signal:
Digital Visual Interface (DVI)-TMDS single link.
Resolutions:
Format
Ratio
Refresh Rate
Reduced Blanking
640 x 480
4 : 3
50Hz 60Hz 72Hz 75Hz
800 x 600
4 : 3
50Hz 60Hz 72Hz 75Hz
848 x 480
16 : 9
50Hz 60Hz 72Hz 75Hz
1024 x 768
4 : 3
50Hz 60Hz 72Hz 75Hz
1280 x 720
16 : 9
50Hz 60Hz
1280 x 768
15 : 9
50Hz 60Hz 72Hz 75Hz
1280 x 800
16 : 10
50Hz 60Hz 72Hz 75Hz
1280 x 1024
5 : 4
50Hz 60Hz 72Hz 75Hz
1360 x 768
16 : 9
50Hz 60Hz 72Hz 75Hz
1366 x 800
15 : 9
50Hz 60Hz 72Hz 75Hz
1400 x 1050
4 : 3
50Hz 60Hz 72Hz 75Hz
1440 x 900
16 : 10
50Hz 60Hz 72Hz 75Hz
1600 x 1200
4 : 3
50Hz 60Hz
1680 x 1050
16 : 10
50Hz 60Hz
1920 x 1080
16 : 9
50Hz 60Hz 72Hz 75Hz
YES
1920 x 1080 B
16 : 9
50Hz 60Hz
YES
1920 x 1080 C
16 : 9
50Hz 60Hz
YES
1920 x 1080 HD
16 : 9
50Hz 60Hz
YES
1920 x 1200
16 : 10
50Hz 60Hz
YES
2048 x 1080
19 : 10
50Hz 60Hz
YES
• AUDIO OUTPUT
Connector: Output #1 and #2: 2 Balanced or unbalanced
mono/stereo outputs (on 5-pin MCO male connector).
Vo max: Unbalanced = +15dBu (at 300Ω load)
Balanced = +21dBu (at 600Ω load)
Zo = 600Ω balanced
Zo = 300Ω unbalanced
G = 0 dB nominal
4
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
Outputs #1 to #2: Balanced & unbalanced connection
The video output generates a SDI signal in which is embedded only one stereo audio stream.
Settings
Availability
Gain
Yes: from -
∞
to+18dB
Balanced Audio
Left and Right
Auxiliary Input Mixing
Yes
Adjusting Audio Delay
Yes: from 0 to 80ms (Automaticaly or Manual)
