2- Clone mode:

The output #1 and #2 will be the same. All changes on the output #1 will be affected to the

output #2. Layers will have the same position and size.

For the ❶, ❷, ❸ & ❹ modes:

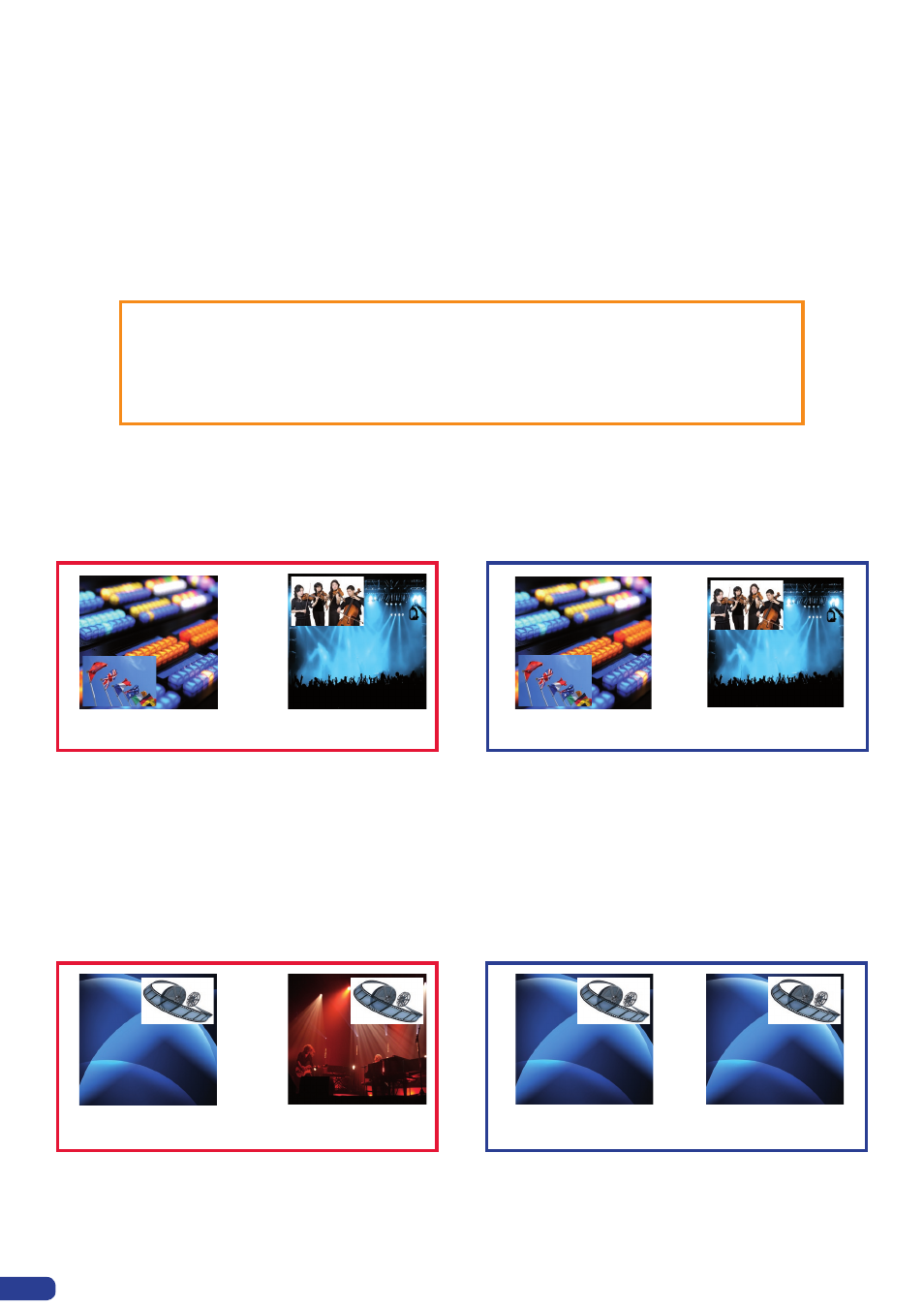

Red case:

Mirror Mode activated only for the PIP layer

Blue case:

Mirror Mode activated for PIP layer and Background live Layer

Using the Matrix Mode, several configuration are available, the Simple Mode and the Mirror Mode.

Using the Mirror Mode:

OUTPUT #1

OUTPUT #2

Select the chosen layer and go in the layer menu, then select the “Layer Copy Mode” menu.
There are several mirror positioning options:

To use the Mirror Mode, simply select the Matrix Mode through the Main menu, then the Mirror Mode can be

activated layer by layer thanks to the layers menu.

1- No Copy:

this mode is the standard matrix mode, output

1 and

2 are independent...

❶

❷

OUTPUT #1

OUTPUT #2
