DVI Inputs #1 and #2
Outputs #1 and #2
OUTPUTS #1 and #2:
ANALOG: 1x analog output for the main display
device on female HD15 connector.
DIGITAL/ANALOG: 1x main output on female DVI-I connector
(simultaneous analog and digital).
DVI & ANALOG SOURCES :
DVI Inputs # 1- # 2 on the Smart MatriX accept up to 2 live sources in Digital format.
DVI-I: 1x digital (DVI) and 1x analog input on female DVI-I universal connector.
For analog sources, please use the breakout cable supplied.
SD/HD-SDI SOURCES :
SD/HD-SDI Inputs # 1- # 2 on the Smart MatriX accept up to 2 live sources
in Digital formats.
SD/HD-SDI: 1x digital input on female BNC connector.
SD/HD-SDI Inputs #1 and #2
RGBS VIDEO SOURCES:
This signal is widely used in broadcasting and is available
on European DVD player. The RGB/S signal is transmitted
with 4 coaxial cables, and also has a better picture quality
than COMPOSITE and S.VIDEO signals. The RGB/S
connectors are usually BNC connectors for Broadcasting
equipment, and SCART connector for DVD players.

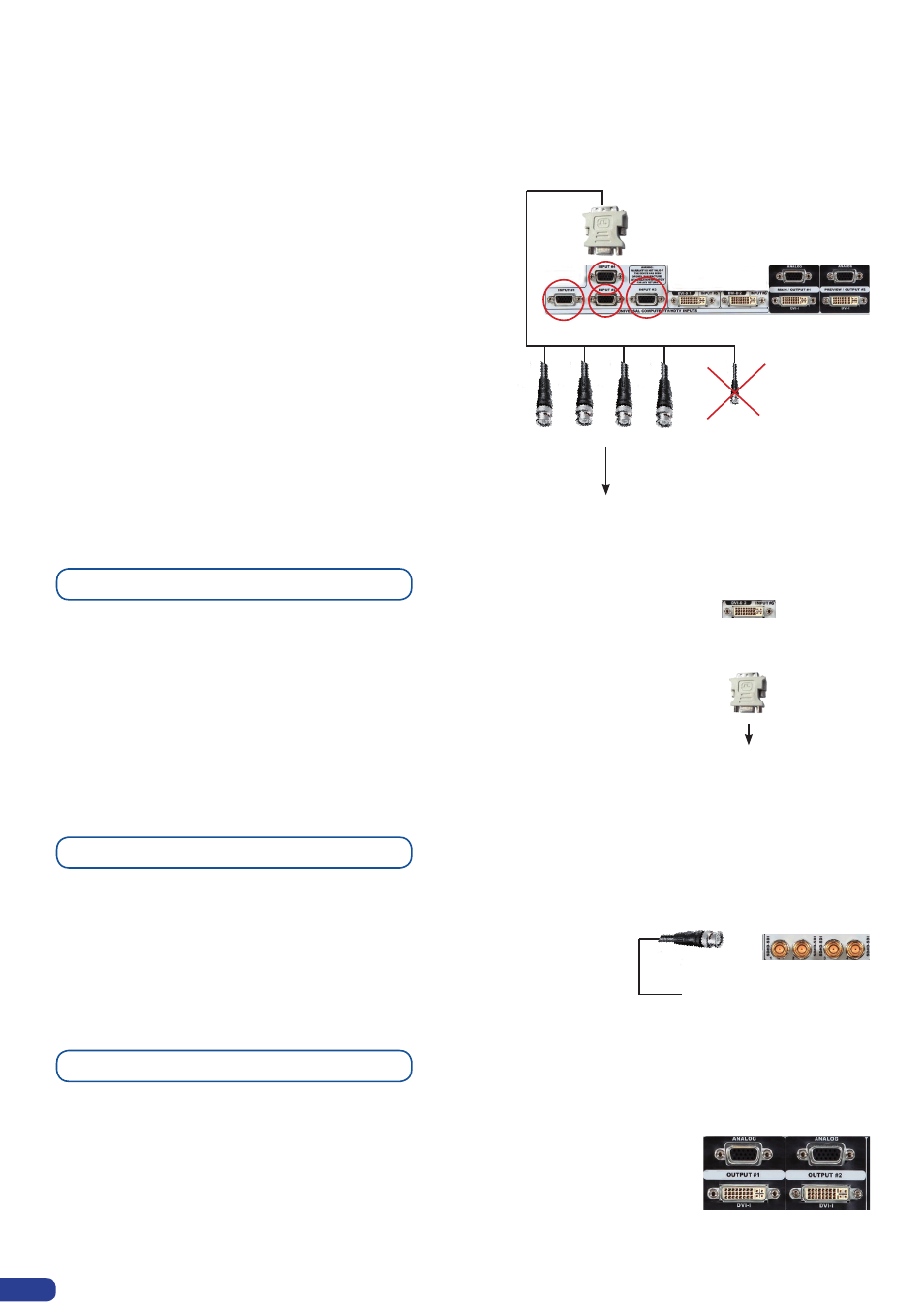

For inputs #1 to #4: connect a HD15 to 4x BNC cable
between the HD15 connector of the device and your
RGB/S source.
HD/SDI Source
BNC
Analog Computer Sources
DVI-D
G B S R
RGBS Source
COMPUTER SOURCES:
The device accepts the following computer signals: RGBHV,
RGB/S and RGsB on inputs #1 to #6.
