Accessories
Climax Portable Machining & Welding Systems Web site: climaxportable.com
Worldwide Phone:
1.503.538.2185 N. America Toll-Free: 1.800.333.8311 Fax: 1.503.538.7600 E-mail: [email protected]
page 6
Further customize your BB3000 Boring Machine with these main boring bar options.
Order separately (special customized bars available upon request)
• All bars are 1-¼ inch (31.8 mm) in diameter, and made of 1045 S-CPO chrome-plated steel.
• After machining, bars are straightened.
• Bars come packaged in a fitted steel container with quick-release latches.
• First hole is 1 inch from the end of the bar, for all bar lengths and hole spacing.
NOTE: Maximum recommended unsupported bar length (between bearing supports) is 18 inches (457.2 mm)

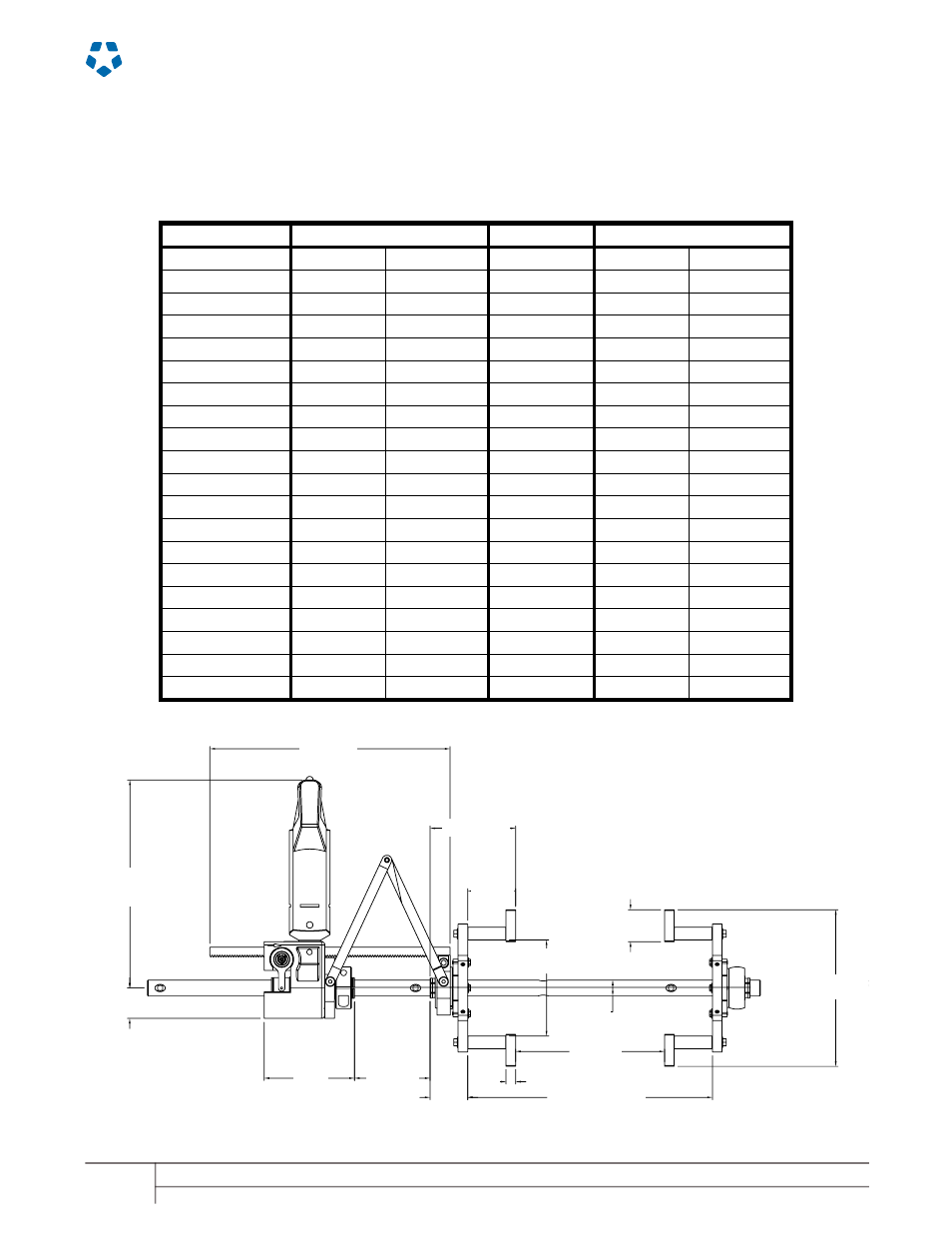

18.8 (477.5)
6.69 (169.9)
3.75 (95.3)
16.28 (413.5) Elec CE
12.53 (318.3) Elec US
9.83 (249.7) Pneumatic
2.38 (60.5)
7.07
(179.6)
2.94
(74.7)
0.75
(19.1)
10 (254) max
feed stroke
‘X’
Workpiece
Ш1.25 (Ш31.8)
2.5 (63.5)
12.25 (311.2) Max
9.75 (247.7) Min
Max unsupported bar
length 18 (457.2)
7.25 (184.2) Max
4.75 (120.7) Min
Dimensions in Inch (mm)
Here’s how to determine the length of the boring bar you will require:
 
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
     
 
