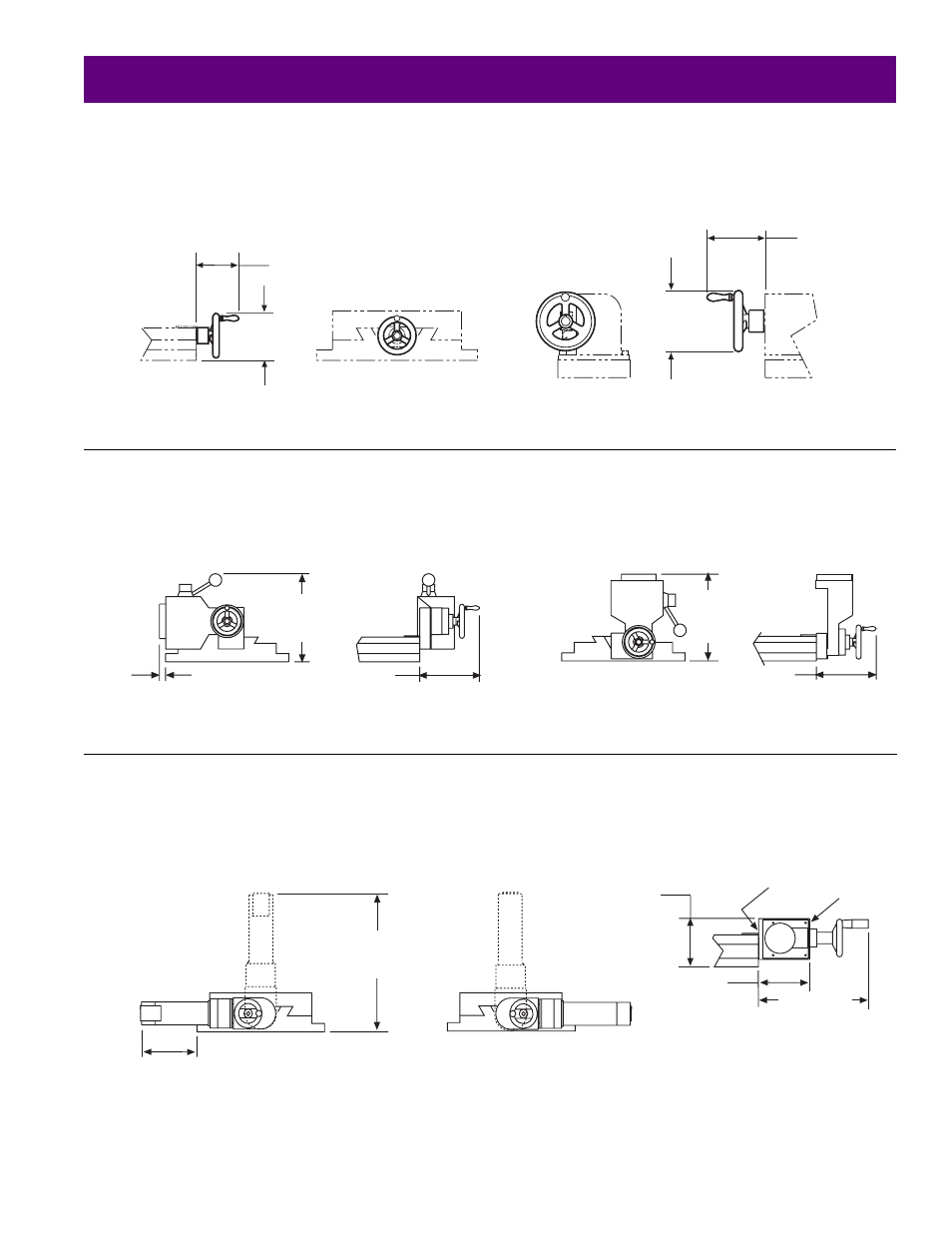

PM5000 Feed Assemblies
MANUAL FEED
12.0
(304.8)
3.2 (81.3) 8.25 (209.6)
Side Mounting
12.0
(304.8)
9.5 (241.3)
Upright Mounting
HEAVY-DUTY ELECTRIC FEED
(Includes limit switches)
Recommended for vertical or overhead applications
MANUAL FEED (X-AXIS) MANUAL FEED (Y-AXIS)
4.2 (106.7)
4.75
(120.7)
5.7 (144.8)
6.3 Dia.
(160.0)
Inches (mm)
Manual and electric feed units are available for X and Y
axes. The Z-axis comes complete with manual feed
(electric feed is not available).
Feed units available:
• Manual
• Standard electric with local control
• Heavy-duty electric with local control
• Heavy-duty electric with remote control
STANDARD ELECTRIC FEED
(Includes limit switches)
Standard feed system recommended for horizontal applications only. For vertical or
overhead applications use the heavy-duty feed system.
Side A
Side B
8.75 (222.2)
4.86 (123.4)
10 (254)
5.25 (133.3)
17.5
(444.5)
Side A mounted to bed
(multiple feed positions
shown)
Rotated gear box Side B mounted to
bed with handwheel repositioned
(multiple feed motor positions shown)
