05/99 15
NO. DESCRIPTION

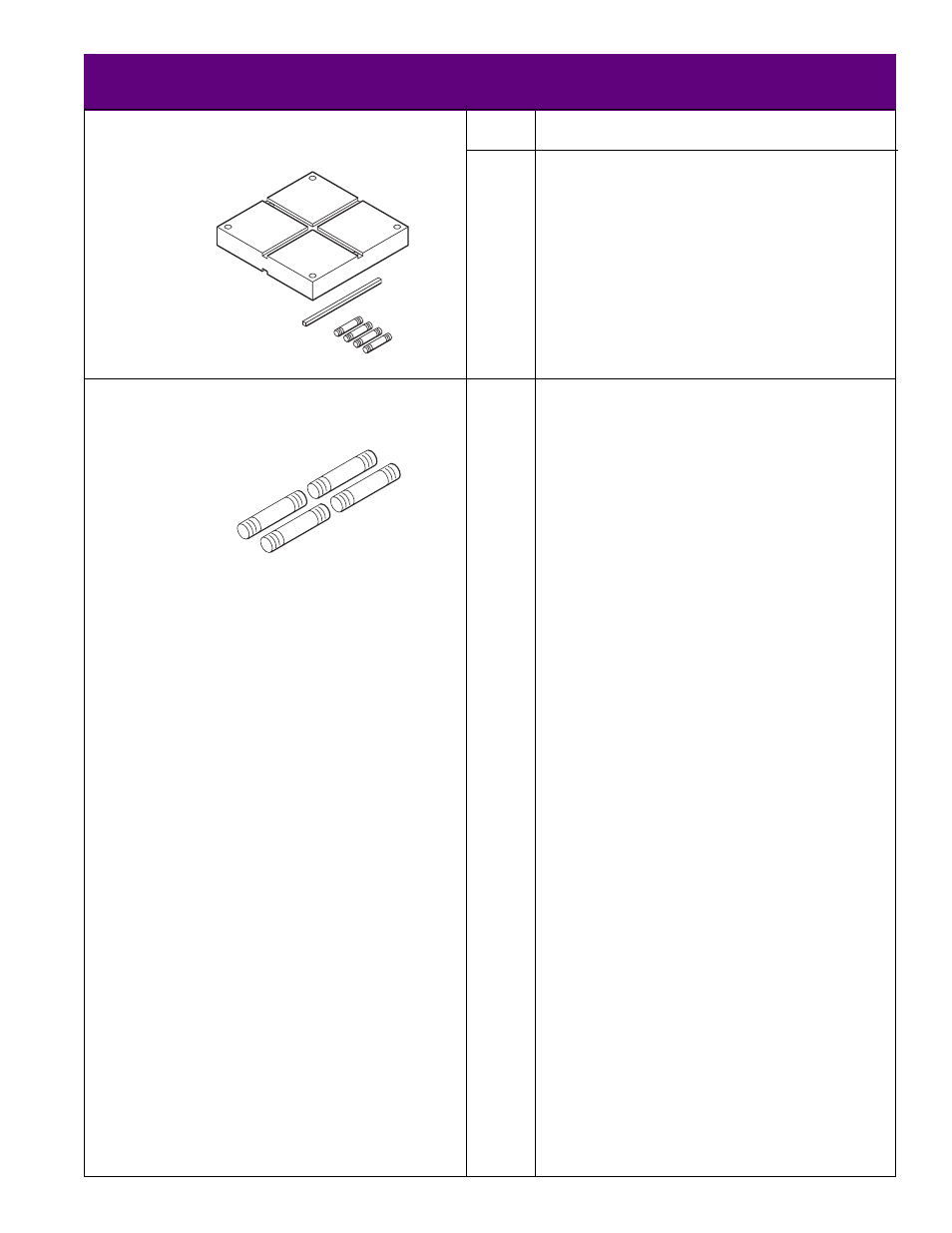

(I) Riser assembly
Riser assembly raises the milling head up from the
main bed. Assembly includes riser, studs and nuts, and
key.
For overhead milling, riser(s) totaling a
minimum of 3" (76.2 mm) are required. Risers
totaling 5" (127 mm) or more are recommended.
25021 1" (25.4 mm) Riser assembly
21593 2" (50.8 mm) Riser assembly
25022 3" (76.2 mm) Riser assembly
25023 4" (101.6 mm) Riser assembly
25024 5" (127.0 mm) Riser assembly
25025 6" (152.4 mm) Riser assembly
Optional riser studs
Order optional riser studs when using a combination of
risers to raise the milling head up from the main bed.
Four studs required.
25030 Stud - 1" (25.4 mm) total riser height
21595 Stud - 2" (50.8 mm) total riser height
25031 Stud - 3" (76.2 mm) total riser height
25032 Stud - 4" (101.6 mm) total riser height
25033 Stud - 5" (127.0 mm) total riser height
25034 Stud - 6" (152.4 mm) total riser height
25040 Stud - 7" (177.8 mm) total riser height
PM5000 Components
Drawings may not represent
actual product.
