Portable on-site
milling solves
your difficult
repair
problems

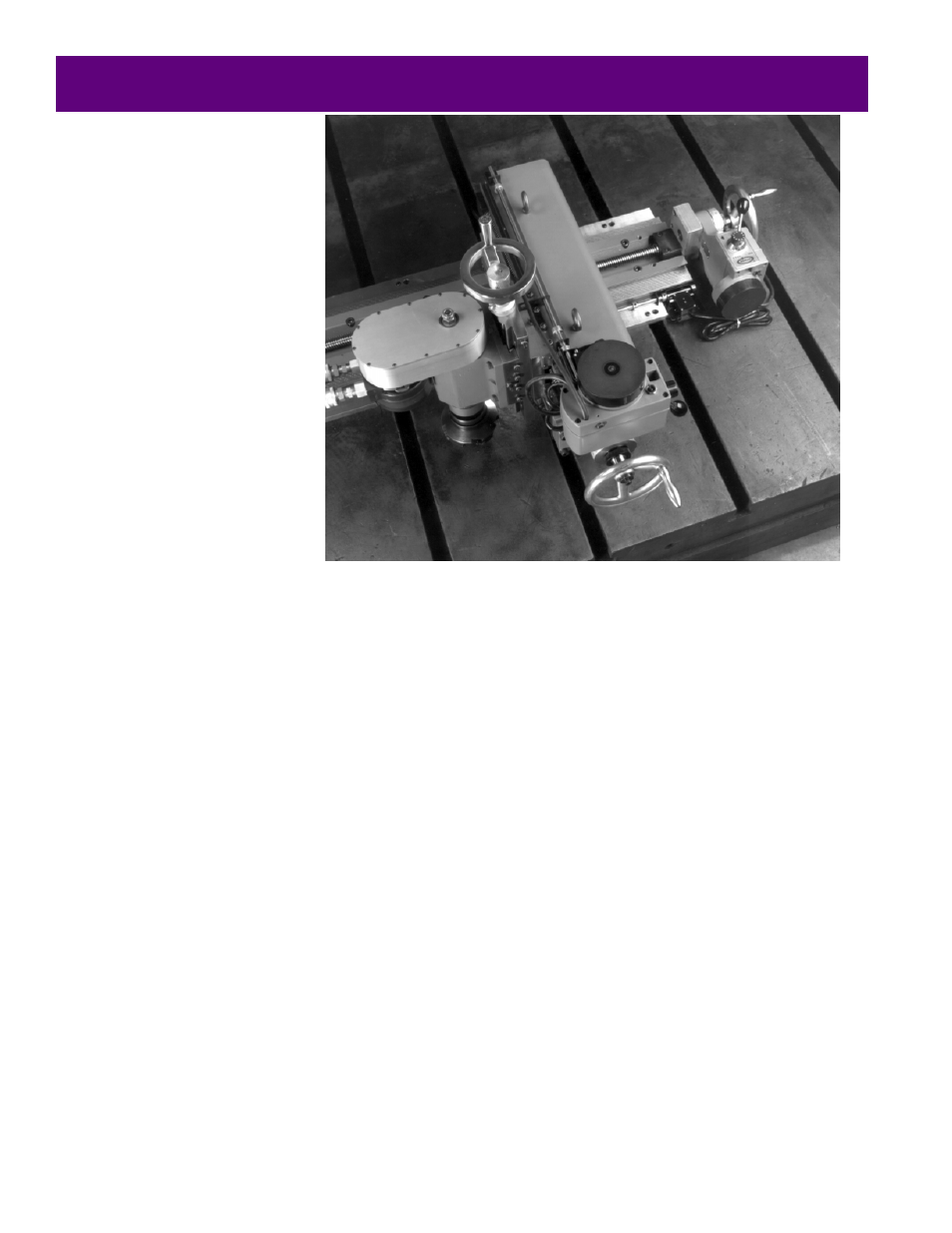

The Model PM5000
Portable Milling
Machine
The versatile PM5000 three-axis hydraulic
milling machine consists of a 12" (305 mm)
wide bed with an 8" (203 mm) wide saddle.
A 22" (559 mm) long cross carriage ram
provides up to14" (356 mm) travel and can
be
centered across the bed, extended over
either side of the bed, or positioned parallel
to the bed. The bed’s dovetail ways feature
a high-lubricity polymer for smooth
operation.
The milling head is belt driven. A drawbolt
holds the machine tool in the spindle. The
spindle has a 3" (76.2 mm) diameter hard
chrome-plated quill and hardened helical
drive gears. The spindle gear box rotates
around the spindle centerline. The heavy-
duty quill clamp can be indexed in 90 0
increments and offset mounted to increase
machining reach. Spindle travel is provided
by a 6" (152 mm) dovetail slide with manual
feed. Tools attach by a #40 machine tool
taper with drawbolt retention. Power feeds
are available for the X and Y axes.
Standard or heavy-duty power feeds are
available. The standard feed can be used in
normal horizontal milling applications.
Vertical or overhead milling requires the
heavy-duty power feed. Combine this unit
with remote pendant controls and mount it
in various positions on the end of the bed or
cross carriage to avoid obstructions. Three
hydraulic spindle motors are available so
you can match the spindle rpm range to
your application. Five and ten hp hydraulic
power units are available.
