62
3. Insert component into the input sockets or
connect alligator leads into the banana jack input
terminals and connect the clips to the component
leads as illustrated in Figure 13.
4. Press button until the desired test
frequency is displayed on screen.
5. Read the display readings for impedance
measured values.
+ -
R
!
AUTO
@ OFF
SMD
D
PAL
kHz
Z
USB
D/Q/
/ESR
L/C/R/Z
POWER
REC
REL
HOLD
CAL P S
FREQ
TOL
UTIL
LCR Meter 879B

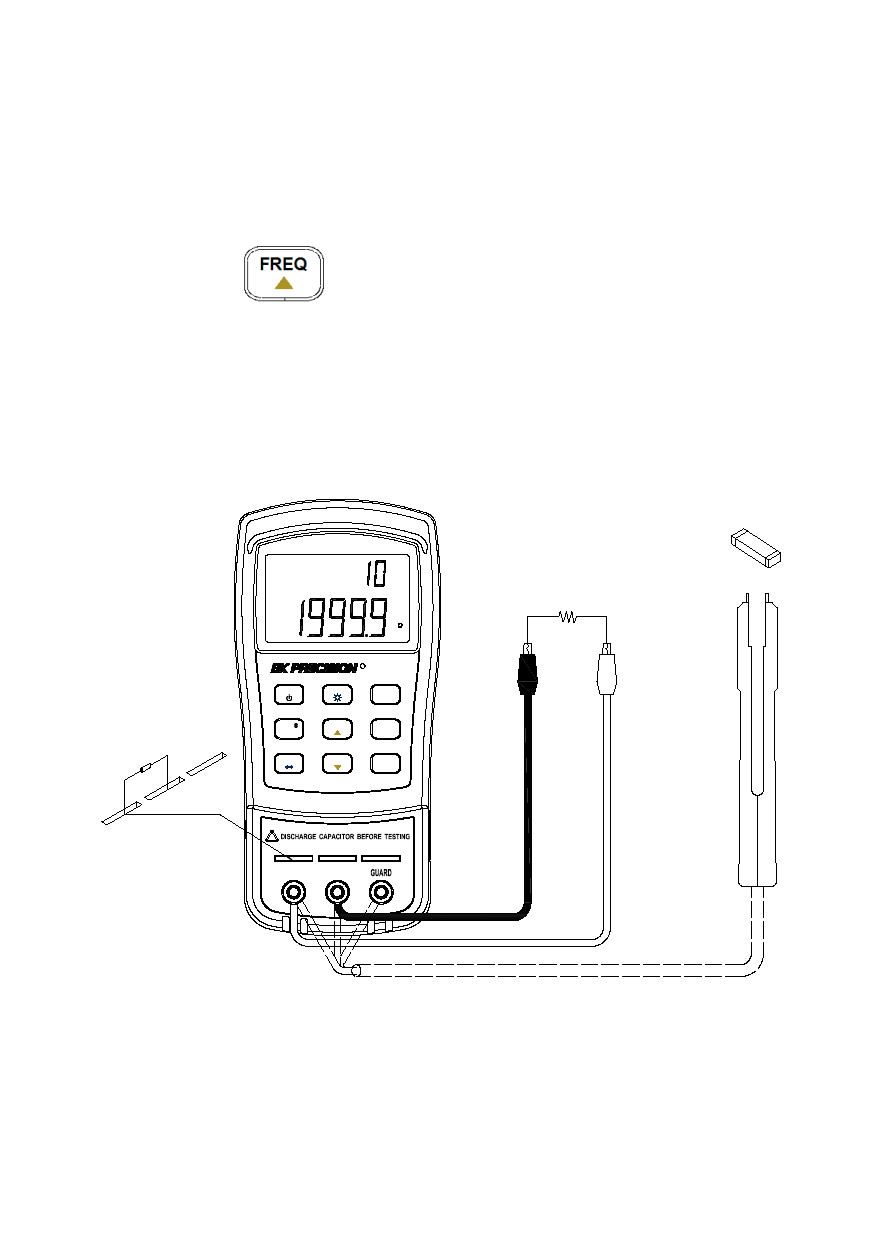

Figure 13 - Impedance Measurement Setup
