Autel MaxiTPMS TS601 - Manual (Page 63)

61
7. Review Data
The Review Data function allows user to view and print out saved
data of the latest TPMS diagnostic recordings and all diagnostic data
retrieved from the ECUs of the OBD II-compliant vehicles by the
service tool.
Use the UP/DOWN and LEFT/RIGHT scroll button to select
Review Data from Main Screen (Figure 3.1), and wait for the review
data menu to appear.(Figure 7.1)
1) Use the UP/DOWN scroll button to select TPMS or OBDII
from Review Data and press the Y button. (Figure 7.1)

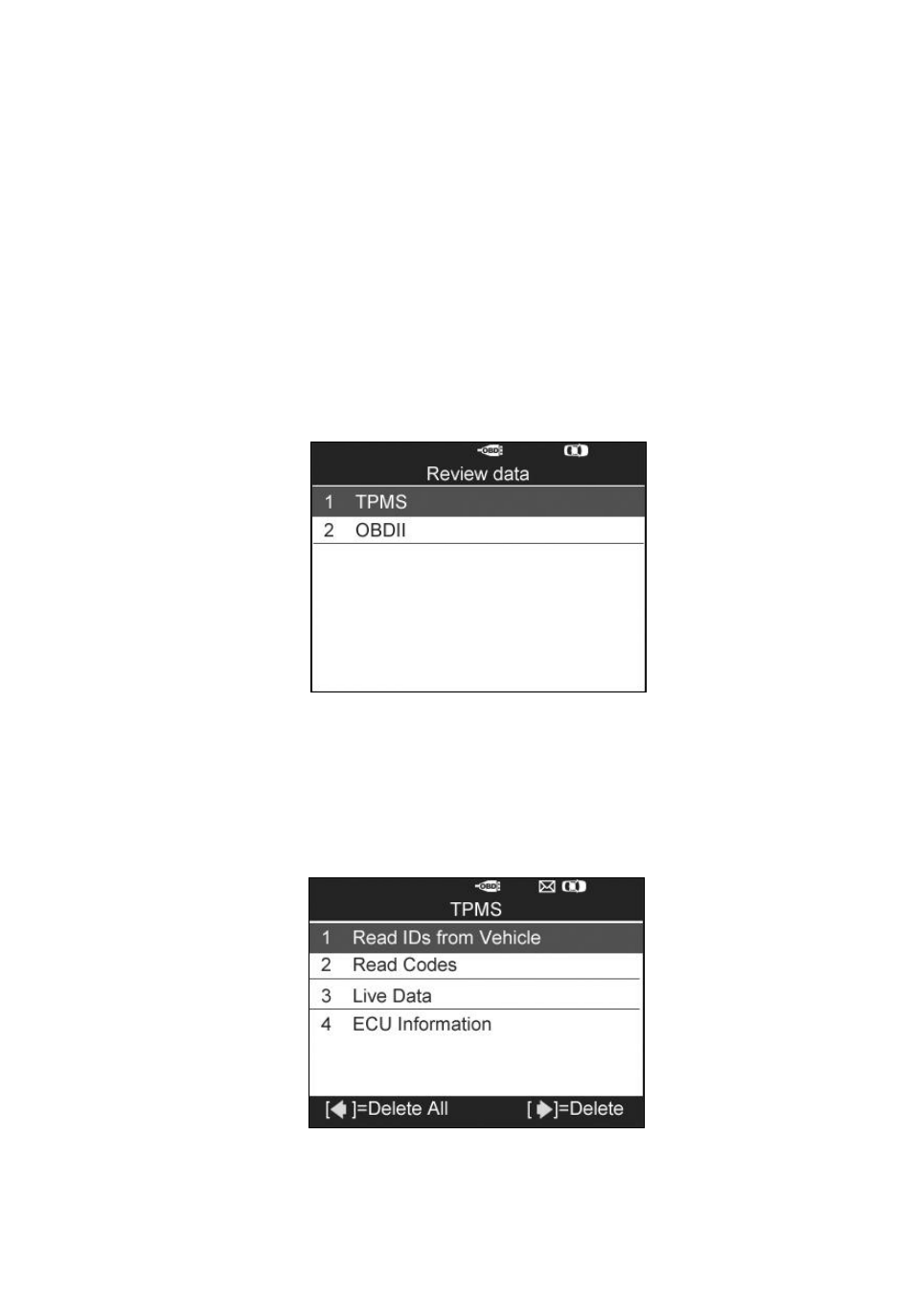

Figure 7.1
2) Use the UP/DOWN scroll button to select the desired stored data
(taking Read IDs from Vehicle as an example) from TPMS
menu and press the Y button.
Figure 7.2
