48

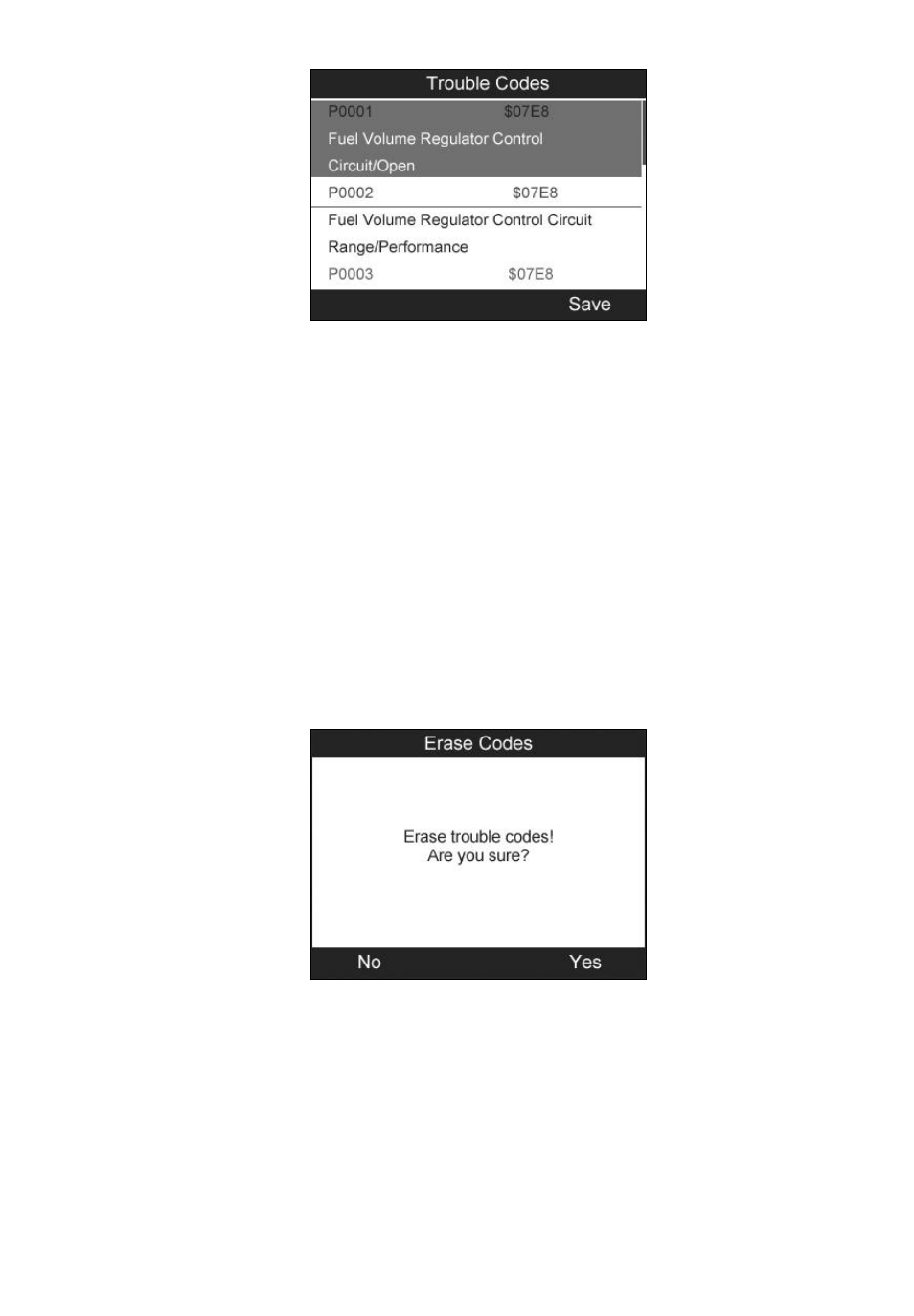

Figure 6.5
6.2 Erase Codes
 This function is performed with key on engine off (KOEO). Do
not start the engine.
1) Use the UP/DOWN scroll buttons to select Erase Codes from
Diagnostics Menu and press the Y button. (Figure 6.3)
2) A confirm screen will show up. Press the corresponding
FUNCTION BUTTON ‗Yes‘ to continue; otherwise press the
corresponding FUNCTIN BUTTON ‗NO‘ to exit. (Figure 6.6)
Figure 6.6
3) If the codes are cleared successfully, an ―Erase Done!‖ message
shows on the screen. Press any key to continue. (Figure 6.7)
