41
6) Press the corresponding FUNCTION BUTTON „Back‟ to
return to previous screen.
H. ECU Part Number
1) To retrieve ECU part number, use the UP/DOWN scroll button
to select ECU Part Number function item from the TPMS
Diagnosis Menu. (Figure 4.22)
2) The ECU part number will be displayed once it‘s successfully
retrieved. Press the corresponding FUNCTION BUTTON
‗Save‘ to store for later playback and printing. (Figure 4.42)

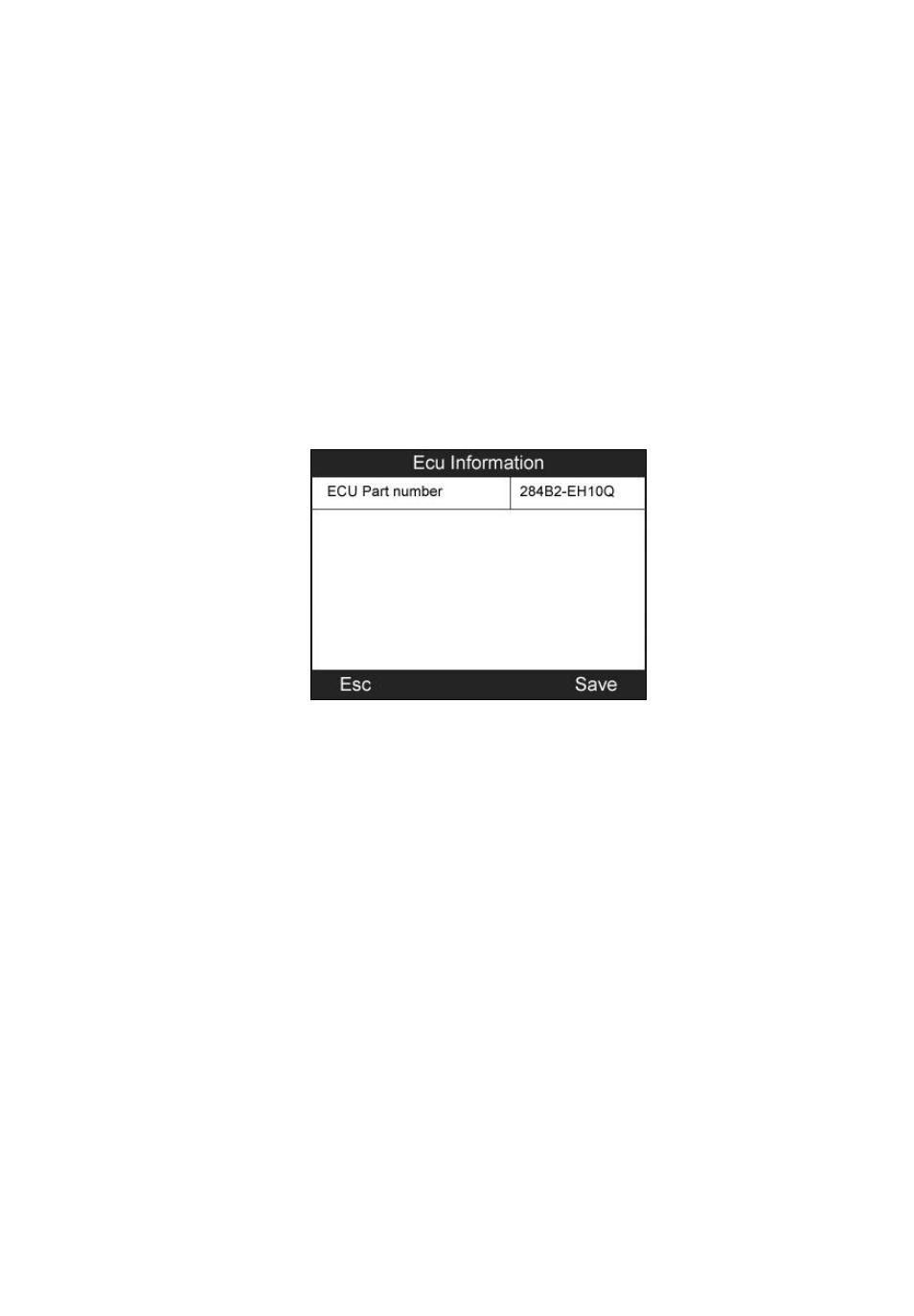

Figure 4.42
3) Press the corresponding FUNCTION BUTTON ‗Esc‘ to return
to previous menu.
4.3 Audit Report
After the user finished the TPMS test, the tool is capable of
presenting all of its stored TPMS data in a HTML file when
connected to a PC via an USB cable.
The tool will automatically pop up a explorer window in PC screen
when connected to an active USB port on the PC. Make sure the tool
is powered on. Otherwise, there will be no communication between
the tool and computer.
