56
5) Press the corresponding FUNCTION BUTTON ‗Save‘ to store
to Review Data for later playback and print or press the N button
to return to previous menu. (Figure 6.20)

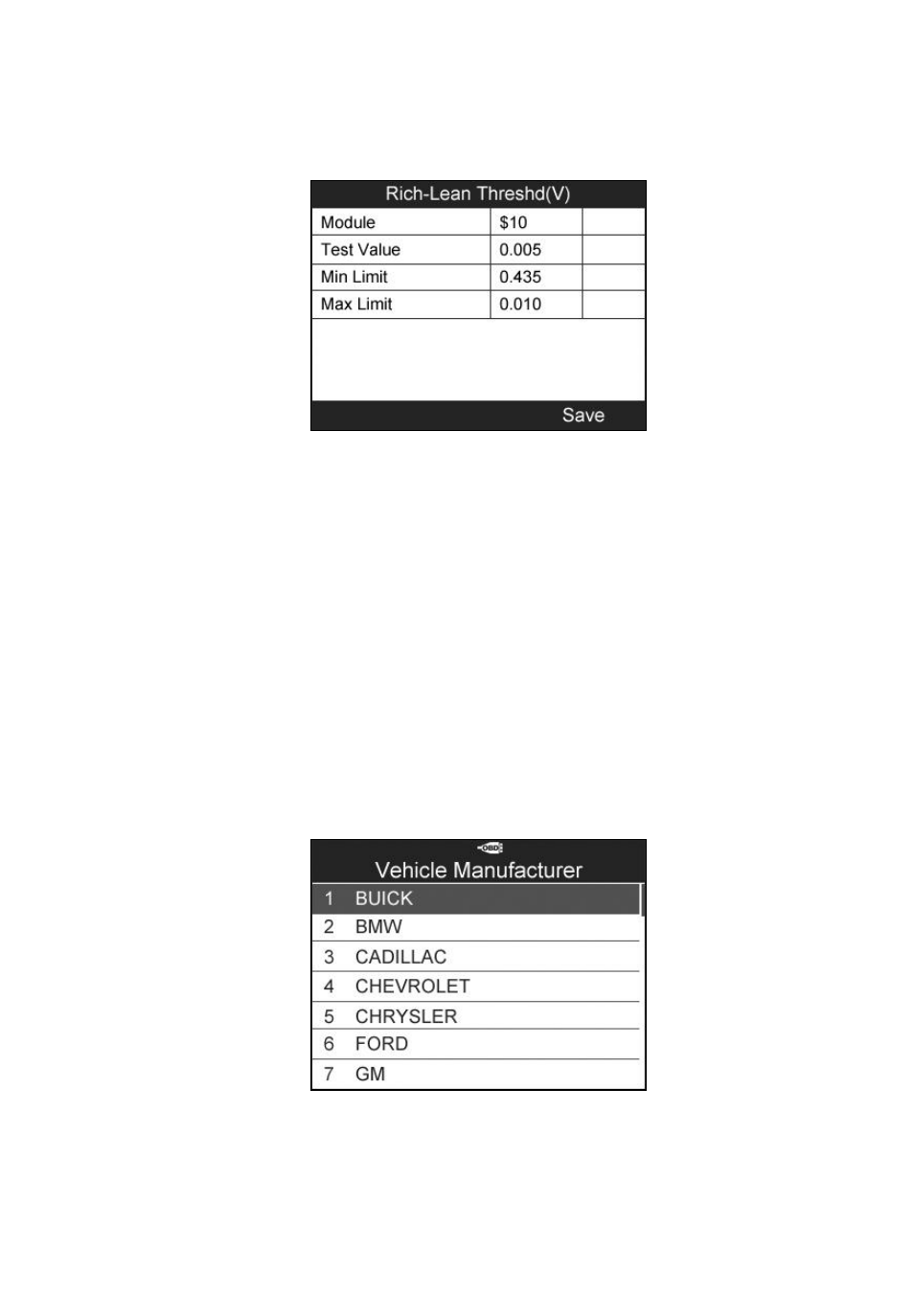

Figure 6.20
6.7 On-Board Monitor Test
1) Use the UP/DOWN scroll button to select On-Board Monitor
Test from Diagnostic Menu and press the Y button. (Figure
6.3)
2) Wait a few seconds while the scan tool validates the PID MAP.
3) Select the vehicle make and press the Y button. (If you have
selected the vehicle before, the Vehicle Manufacturer screen
would not appear again)
Figure 6.21
