Wheels to test – Autel MaxiTPMS TS601 User Manual
Page 15
13
1)
From System Setting screen, use the UP/DOWN scroll button
and LEFT/RIGHT scroll button to select Temperature Unit,
and press the Y button.
2)
From Temperature Unit screen, use the LEFT/RIGHT scroll
button to select the desired unit of temperature.(Figure 3.7)

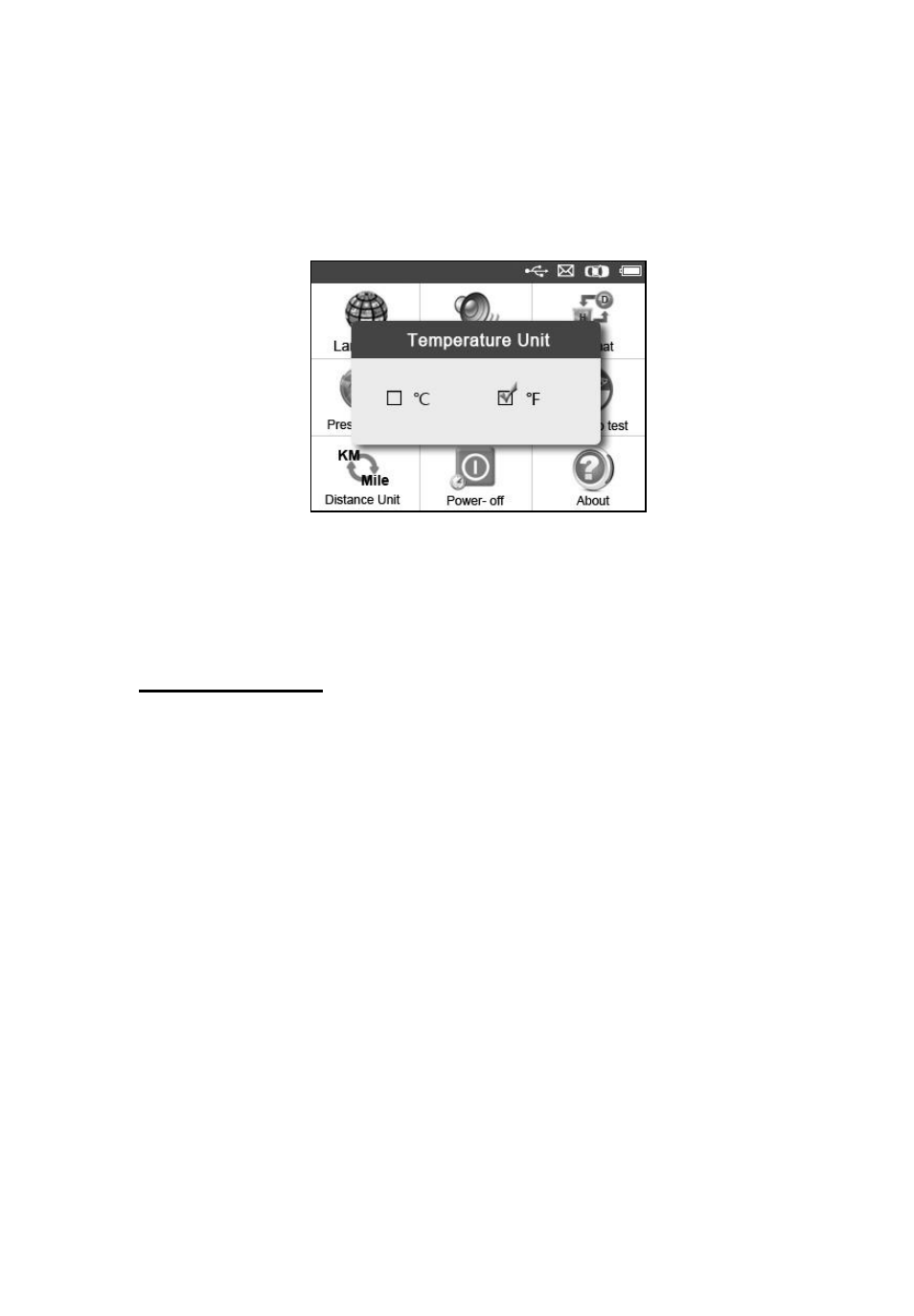

Figure 3.7
3)
Press the Y button to save your settings and return to previous
menu, or press the N button to exit without change.
Wheels to Test
This function gives you choice to test TPMS sensor in All Wheels
mode or One Wheel mode.
1)
From System Setting screen, use the UP/DOWN scroll button
and LEFT/RIGHT scroll button to select Wheels to Test, and
press the Y button.
2)
From Wheel to test screen, use the LEFT/RIGHT scroll
button to select All Wheels or One Wheel mode for TPMS
sensor testing. (Figure 3.8)
