Page 53
51

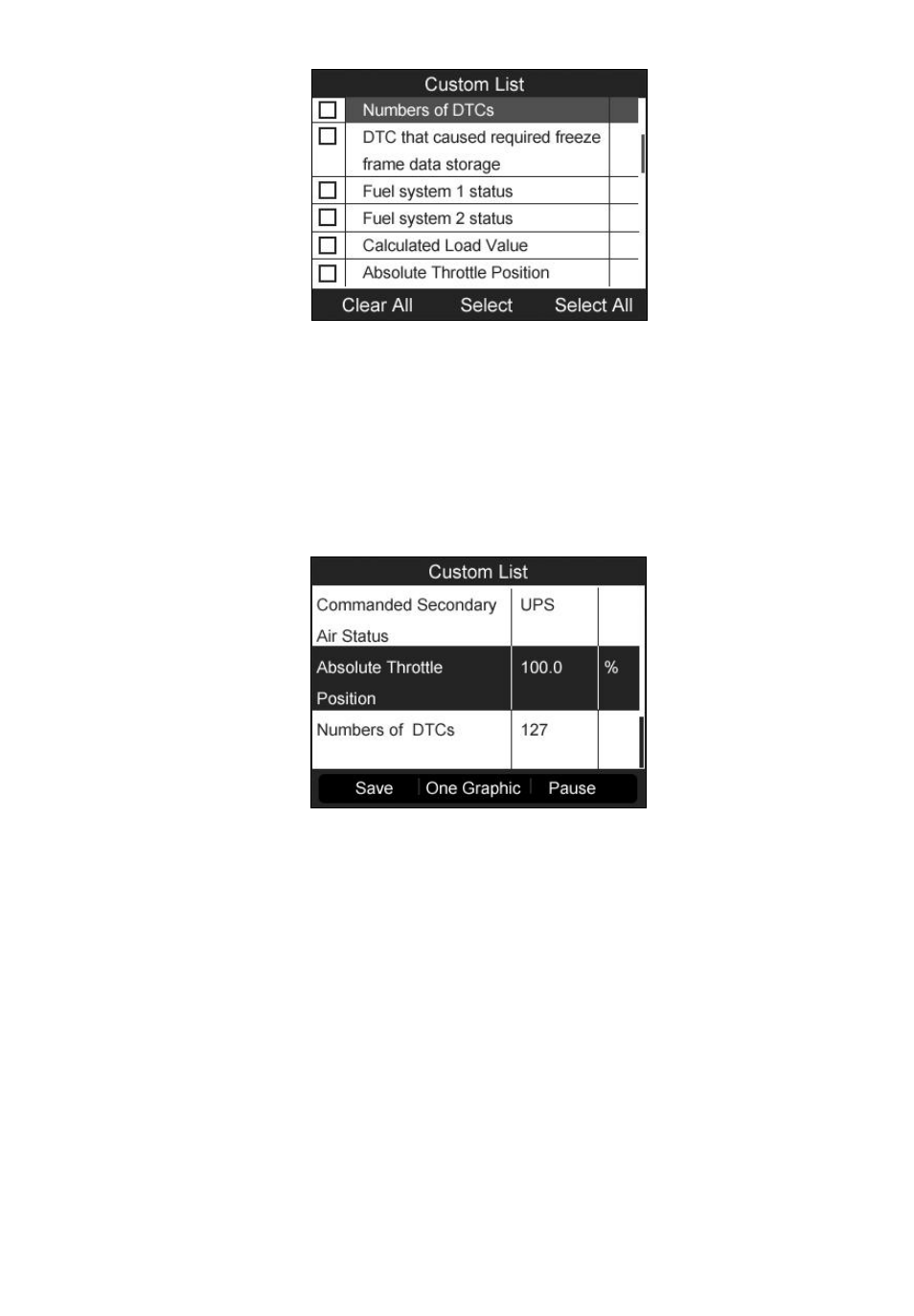

Figure 6.11
3) Press the corresponding FUNCTION BUTTON ‗Clear‘ to
unselect items, or press the corresponding FUNCTION
BUTTON ‗Select All‘/‗Clear All‘ to select or unselect all items.
4) Press the Y button to view selected PIDs on screen. (Figure 6.12)
Figure 6.12
5) Press the N button to return to previous menu.
6.4 Freeze Frame
1) To view freeze frame data, use the UP/DOWN scroll button to
select Freeze Frame from Diagnostic Menu and press the Y
button. (Figure 6.3 )
2) Wait a few seconds while the scan tool validates the PID MAP.
