Absolute level accuracy in CW mode [ALC off, relative to ALC on] ±0.35 dB (typ)
Absolute level accuracy in digital I/Q mode [ALC on, relative to CW]
300 MHz to 2.5 GHz ±0.25 dB
3.3 to 3.8 GHz ±0.45 dB
5.0 to 6.0 GHz ±0.25 dB

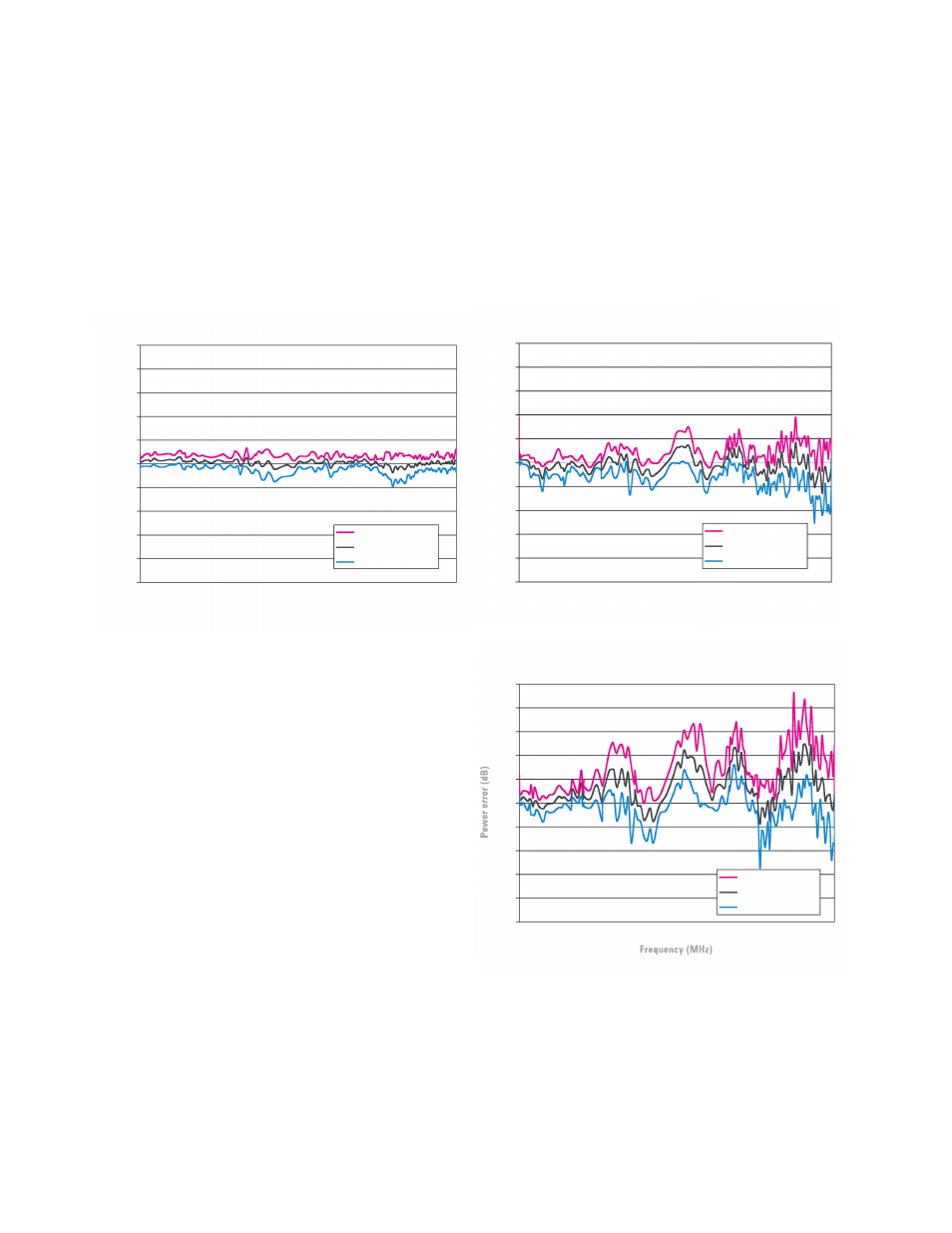

Level accuracy at –140 dBm
Frequency (MHz)
Power error (dB)
1
0.8
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
–0.8
–1
Upper std dev (1 σ)
Mean
Lower std dev (1 σ)
0 1000 2000 3000 4000 5000 6000
Level accuracy at –110 dBm
Frequency (MHz)
Power error (dB)
1
0.8
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
–0.8
–1
Upper std dev (1 σ)
Mean
Lower std dev (1 σ)
0 1000 2000 3000 4000 5000 6000
Level accuracy at –130 dBm
Frequency (MHz)
Power error (dB)
1
0.8
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
–0.8
–1
Upper std dev (1 σ)
Mean
Lower std dev (1 σ)
0 1000 2000 3000 4000 5000 6000
