25
3GPP2 cdma2000 distortion performance
Offset Configuration Frequency Standard (typ) Option UNV (typ) Option UNV with
Option 1EA (typ)
Power ≤ –7 dBm 3 Power ≤ –7 dBm 3 Power ≤ 5 dBm 3
885 kHz to 1.98 MHz 9 channel
forward link
800 to 900 MHz
1800 to 2200 MHz
–78 dBc –79 dBc –77 dBc
> 1.98 to 4.0 MHz –83 dBc –87 dBc –87 dBc
> 4.0 to 10 MHz –88 dBc –93 dBc –93 dBc
-76
-77
-78
-79
-80
-81
-82
-83
-84
-85
-86
-8 -6 -4 -2 0 2 4 6

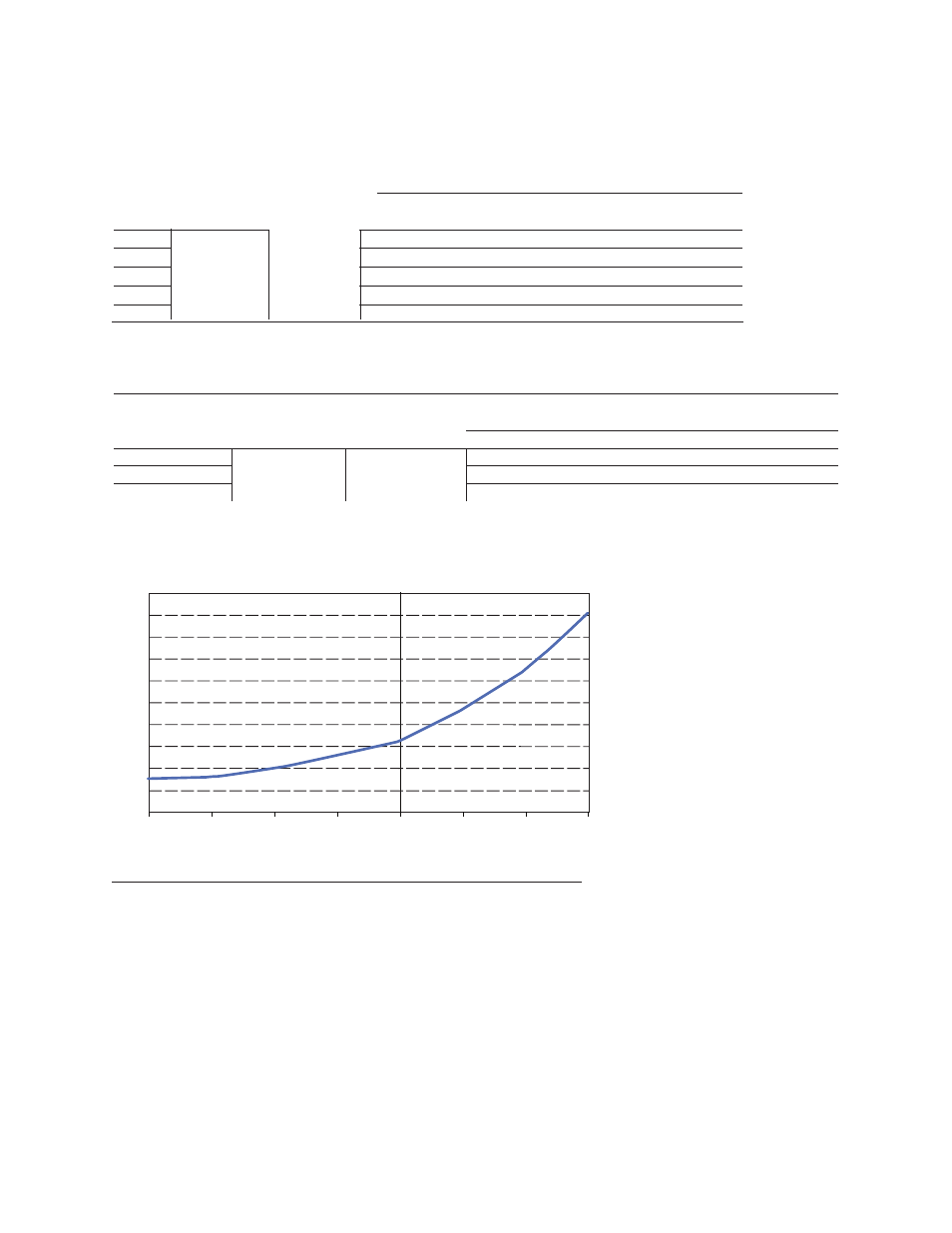

3GPP2 cdma2000 ACLR 9 channel forward link
(with Option UNV and 1EA)
Power level (dBm)
ACLR (dBc)
GSM / EDGE output RF spectrum (ORFS) 1
GSM EDGE
Offset Configuration Frequency 2 Standard Option UNV Standard Option UNV
(typ) (typ) (typ) (typ) (typ)
200 kHz 800 MHz –33 dBc –37 dBc –35 dBc –39 dBc
400 kHz to 900 MHz –67 dBc –71 dBc –67 dBc –71 dBc
600 kHz 1800 MHz –79 dBc –83 dBc –78 dBc –82 dBc
800 kHz to 1900 MHz –80 dBc –84 dBc –80 dBc –84 dBc
1200 kHz –82 dBc –86 dBc –81 dBc –85 dBc
800 to
900 MHz
1800 to
1900 MHz
1 normal
timeslot,
bursted
1. Specifications apply for power levels ≤ +7 dBm.
2. Performance evaluated at bottom, middle and top of bands shown.
3. This is rms power. How to convert from rms to peak envelope power (PEP): PEP = rms power
+ crest factor. Example: 3GPP Test model 1 with 64
DPCH has a crest factor >11 dB ,therefore at +5dBm rms the PEP = 5 dBm + 11dB = +16
dBm PEP.
