6
Output power 1
Minimum output power -110 dBm
with Option 1EQ -127 dBm 2
Range Standard 3 Option 1EA
100 kHz to 50 MHz +13 dBm +15 dBm
> 50 MHz to 3 GHz +13 dBm +23 dBm
> 3 GHz to 5.0 GHz +13 dBm +17 dBm
> 5.0 GHz +11 dBm +16 dBm
1. Quoted specifications between 20 and
30 °C. Maximum output power typically
decreases by 0.04 dB/°C for temperatures
outside this range.
2. Settable to –144 dBm with Option 1EQ,
but unspecified below –127 dBm.
3. Specifications apply to units with serial
numbers ending with 4818xxxx or greater.
For units with lower serial numbers refer
to the Archive Section at the end of this
document.
4. SWR values apply to units with serial
numbers ending with 4818xxxx or greater.
For units with lower serial numbers refer
to the Archive Section at end of this
document.

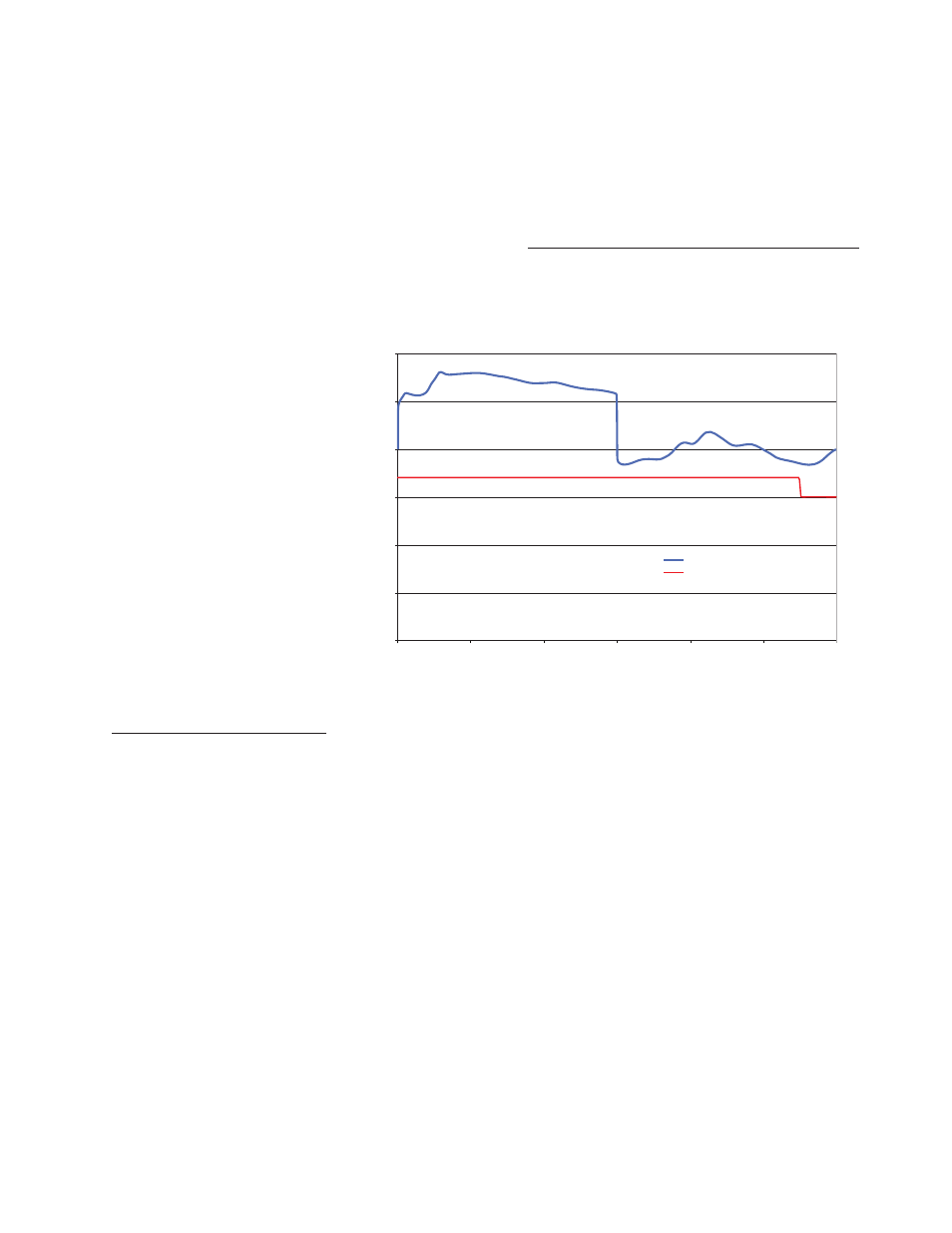

Amplitude
Frequency (GHz)
Maximum power with Option 1EA
Maximum standard power
0 1 2 3 4 5 6
30
25
20
15
10
5
0
Output power (dBm)
Resolution 0.01 dB (nom)
Step attenuator 0 to 130 dB in 5 dB steps (110 dB without Option 1EQ),
electronic type
Connector 50 Ω (nom)
SWR 4
≤ 1.7 GHz 1.4:1 (typ)
> 1.7 to 3 GHz 1.55:1 (typ)
> 3 to 4 GHz 1.7:1 (typ)
> 4 to 6 GHz 1.6:1 (typ)
Maximum reverse power
Max DC voltage 50 VDC (nom)
100 kHz to 6 GHz 2 W (nom)
