Residual FM [CW mode, 300 Hz to 3 kHz BW, CCITT, rµs] < N x 2 Hz (typ)
Harmonics 1 [CW mode, output level]
Range (< +4 dBm) 1EA (< +12 dBm)
250 kHz to 3 GHz < –35 dBc < –30 dBc
> 3 to 4 GHz < –41 dBc (typ) < –30 dBc (typ)
> 4 to 6 GHz < –53 dBc (typ) < –40 dBc (typ)
Nonharmonics 1
[CW mode]
> 10 kHz offset
250 kHz to 250 MHz < –62 dBc, < –70 dBc (typ)
> 250 to 375 MHz < –68 dBc, < –81 dBc (typ)
> 375 to 750 MHz < –57 dBc, < –73 dBc (typ)
> 750 MHz to 3 GHz < –54 dBc, < –62 dBc (typ)
> 3 to 6 GHz < –47 dBc, < –56 dBc (typ)
Subharmonics 1
[CW mode]
250 kHz to 3.0 GHz < –73 dBc
> 3.0 to 4.5 GHz < –68 dBc
> 4.5 to 5.5 GHz < –56 dBc
> 5.5 to 6 GHz < –52 dBc
Jitter 2
Carrier SONET/SDH
Frequency Data rate rms jitter BW µUI rms Femtoseconds
155 MHz 155 MB/s 100 Hz to 1.5 MHz 84 537
622 MHz 622 MB/s 1 kHz to 5 MHz 47 75
2.488 GHz 2488 MB/s 5 kHz to 20 MHz 178 72
Phase coherence (Option 012)
LO input frequency range: 250 MHz to 6 GHz (nom)
LO input power: 0 dBm to +7 dBm (nom)
LO output frequency range: 250 MHz to 6 GHz (nom)
LO output power: 0 dBm to +7 dBm (nom)
1. Harmonics, subharmonics, and non-har-
monics apply to instruments with serial
number prefixes 4818xxxx or greater and
are typical outside the frequency range
of the instrument. Refer to the Archive
Section at end of this document for
specifications for units with lower serial
numbers.
2. Calculated from phase noise performance
in CW mode at +10 dBm. For other
frequencies, data rates, or bandwidths,
please consult your sales representative.

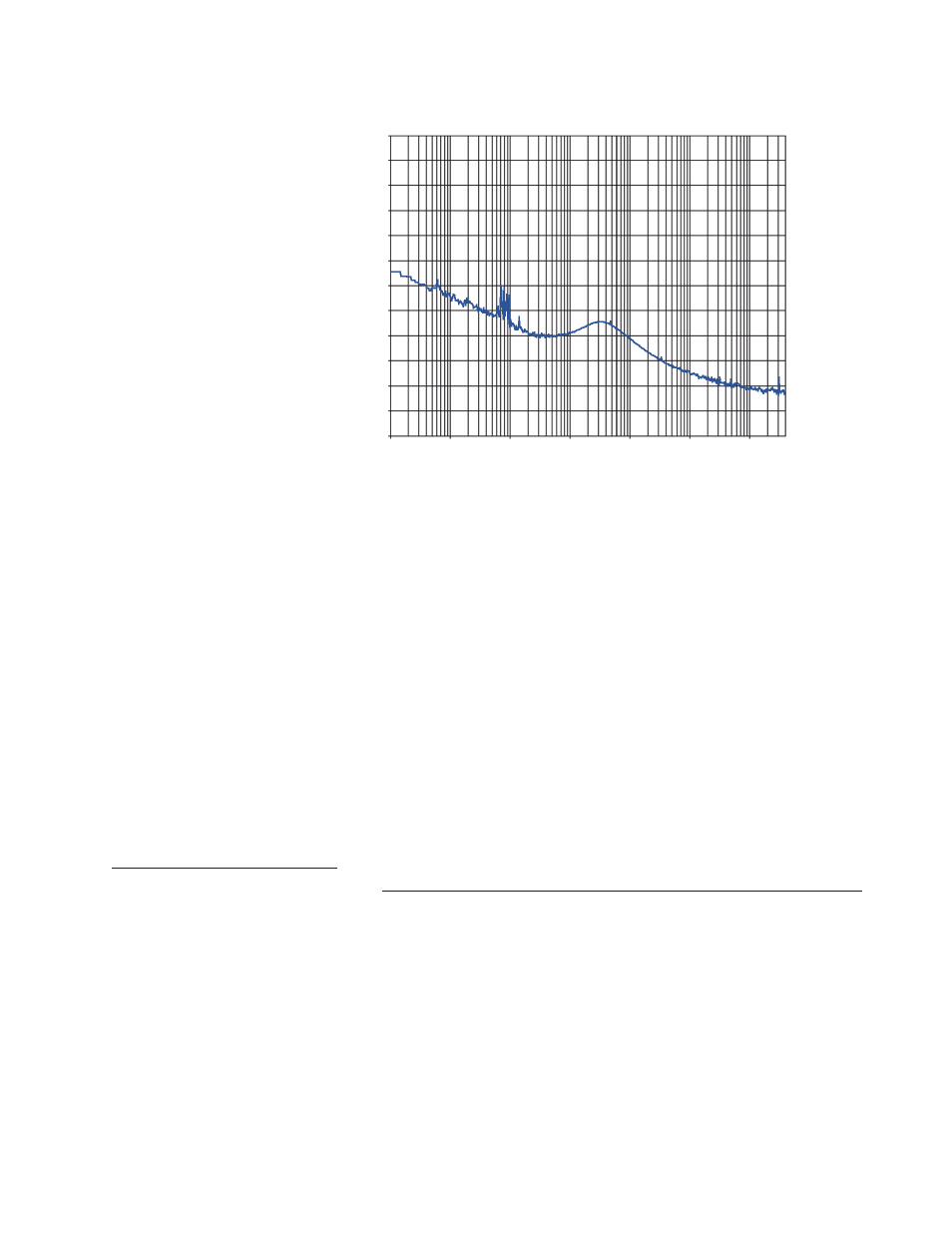

AM noise at 1 GHz (measured)
-60.00
-70.00
-80.00
-90.00
-100.0
-110.0
-120.0
-130.0
-140.0
-150.0
-160.0
-170.0
-180.0
10 100 1k 10k 100k 1M 10M
