2. From Table 5, select a cable type based on the type of testing you are doing.
Table 5. Advantages of cables
Probes Clamps (optional)
Quick testing of jars and straps in a site Retest without reconnecting
Make contact with small posts or straps
Attach to straps and post and free both
hands to use the analyzer keypad
3. When using the probe cable, do one of the following:
• Select AUTO START from the SET PARAMETERS menu to keep both
hands free to hold the probes.
• Have someone hold the analyzer while you connect the probes to
the jars during testing.
Attaching the cable to the analyzer
To attach the cable to the analyzer:
1. Insert the DB-9 connector at the end of the cable into the cable port at the
top of the analyzer. Refer to Figure 3.
2. Tighten the two screws on the sides of the DB-9 connector in the screw
holes on the analyzer with a flat-tip screwdriver.

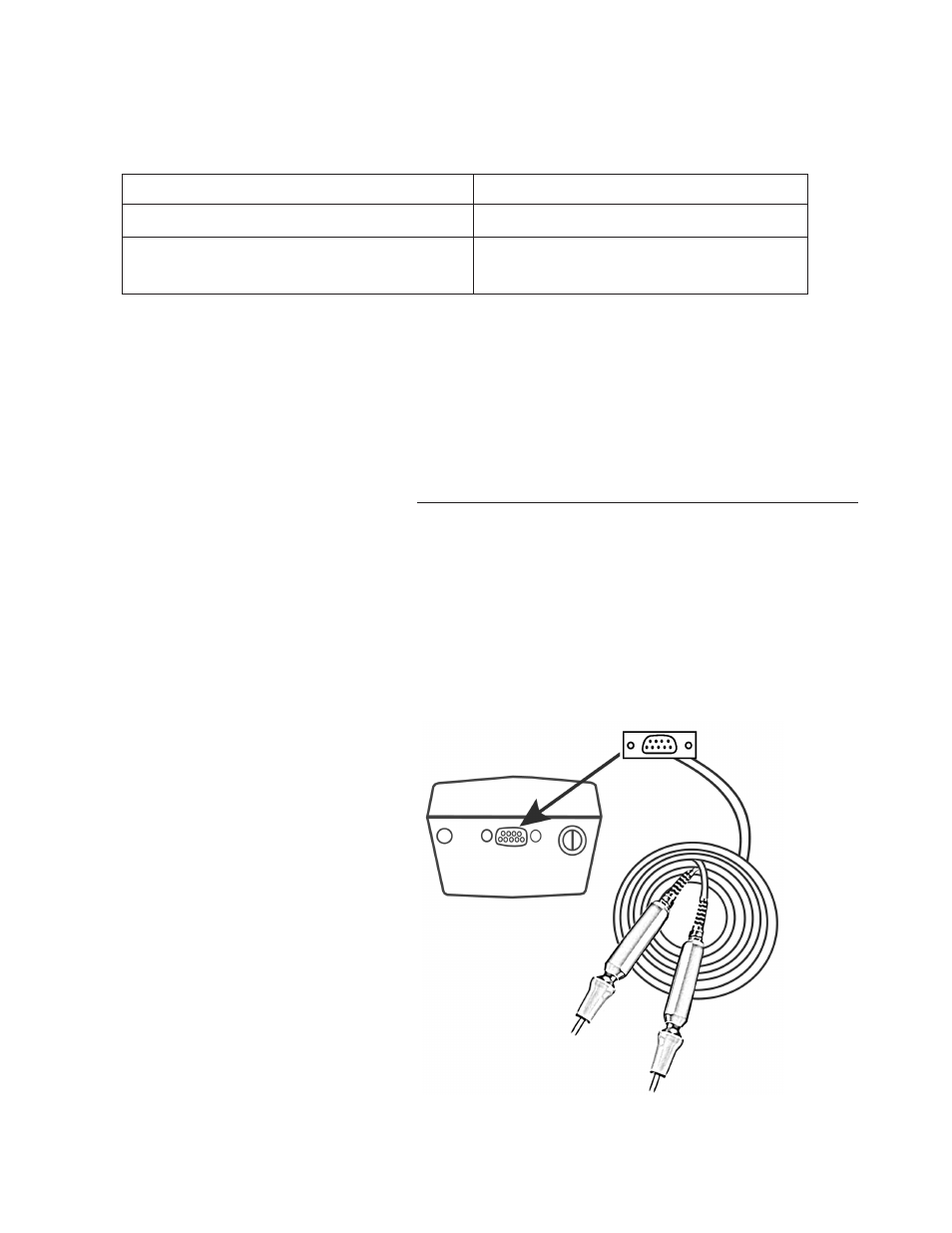

Figure 3. Attaching the cable to the analyzer
