5.0 Installation, continued
5.2 Special Instructions for Double-wide Installation
When installing two MiniBay enclosures side-by-side, the units should be lifted independently
as shown in section 5.1. Position the first unit and remove the lifting ears. Apply gasket
material supplied in gasket kit, Alpha P/N 745-61-20. The gasket material should be in place
before positioning the second unit in order to maintain 3R rainproof integrity (see Fig. 5-4).
When the gasket is in place, position the units together and secure together (8 places) using
the supplied hardware.
Tools Required: 9/16" open-end wrench
9/16" socket and driver

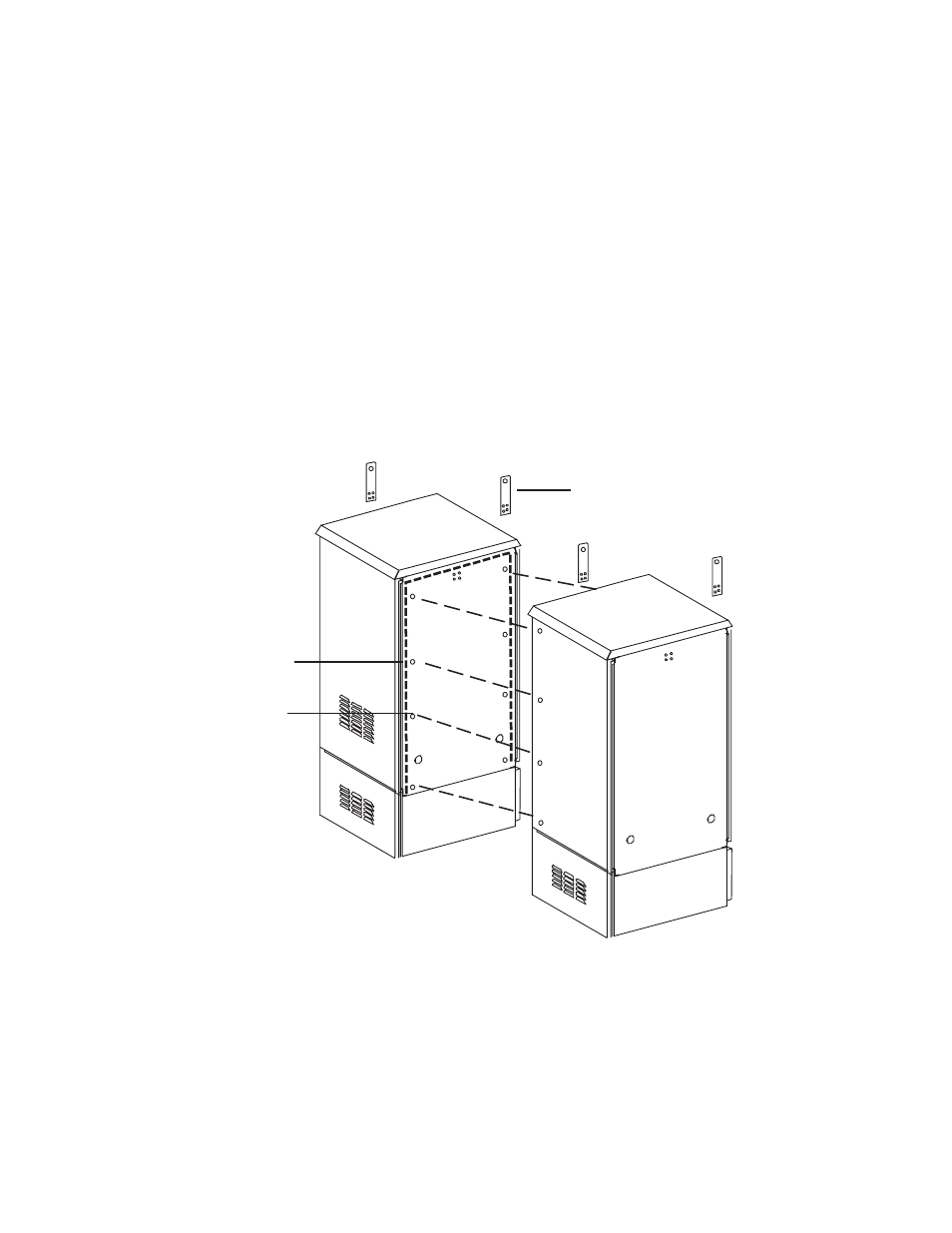

Fig. 5-4, Dual Enclosure Installation
Apply Gasket Material
Remove Lifting Ears
Bolt together using
supplied hardware
