16 044-001-C0-00, Rev. C
1.0 Overview and Specifications, continued
1.1
Standard Cordex Configurations, continued
RMB DC Power & Distribution Standard Configuration #2
• Cordex 1.8kW 19" Shelf, with two Cordex 48-1.8kW rectifier modules
• Provides 7.5A @ 48VDC, N+1
• Fully equipped shelf provides 7.2kW (150A @ 48VDC), N+0
• 2 RU shelf, fan cooled
• Heat dissipation <350 BTU/hr, per rectifier module
• 584 Distribution Center with Cordex Controller, load LVD, eight load breakers, and shunt

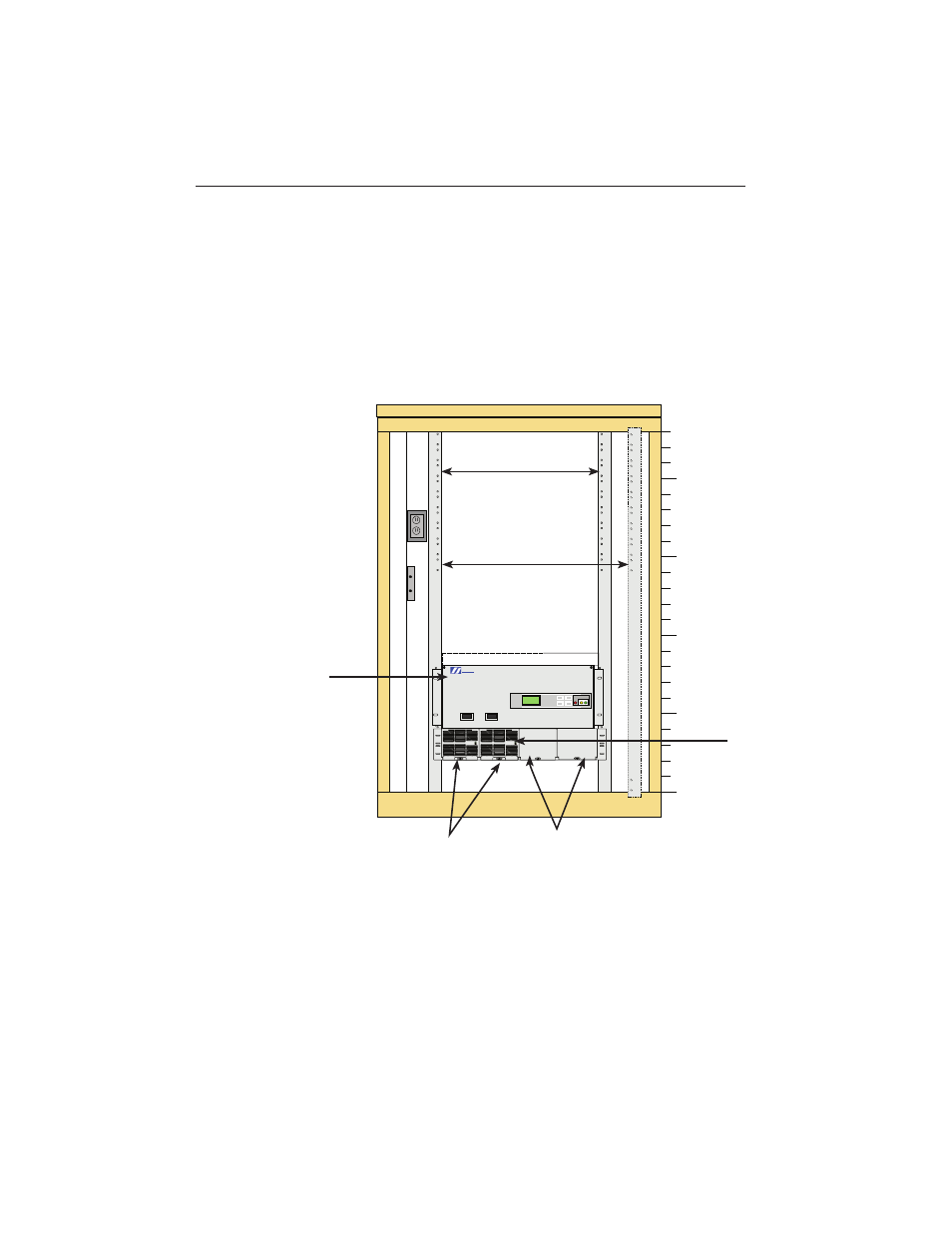

Fig. 1-9, Radium MiniBay Standard Configuration #2
0
5
10
15
20
ARGUS TECHNOLOGIES
P/N 020-584-20
SM03
Leave 1RU Space
19" Rack
23" Rack
2 to 4 (qty) CXCM 48-1.8kW Rectifier Modules
2 RU
P/N 010-580-20-A001
Blank Plate
P/N 00-749-20-A002
Front ACS Distribution Center
5 RU
P/N 020-584-20-A012
19/23" 48VDC 400A
8 position Circuit Breaker
Sized 1-100A with Load LVD
CDX 19" Shelf
2 RU
48-1.8kW
P/N 00-749-20-A001
208/240VAC
2 (Rack Units)
