1.0 Overview and Specifications, continued
1.7 Battery Storage Unit Battery Options
The Battery Storage Unit (slide tray), Alpha P/N 033-083-20, and Battery Storage Unit (fixed
tray), Alpha P/N 033-031-21, accommodates four of the following battery types:
• C&D TEL 12-45
• C&D TEL 12-70
• AlphaCell 85GXL-HP
• AlphaCell 165GXL
• AlphaCell 185GXL
• AlphaCell 195GXL-FTG
• AlphaCell 225AGM-FTA
• C&D TEL 12-105F
• GNB Marathon M12V155FT
• AlphaCell SMU12V 155F
The Battery Storage Unit (fixed tray) also accommodates three Avestor SE48S63 48VDC
batteries.

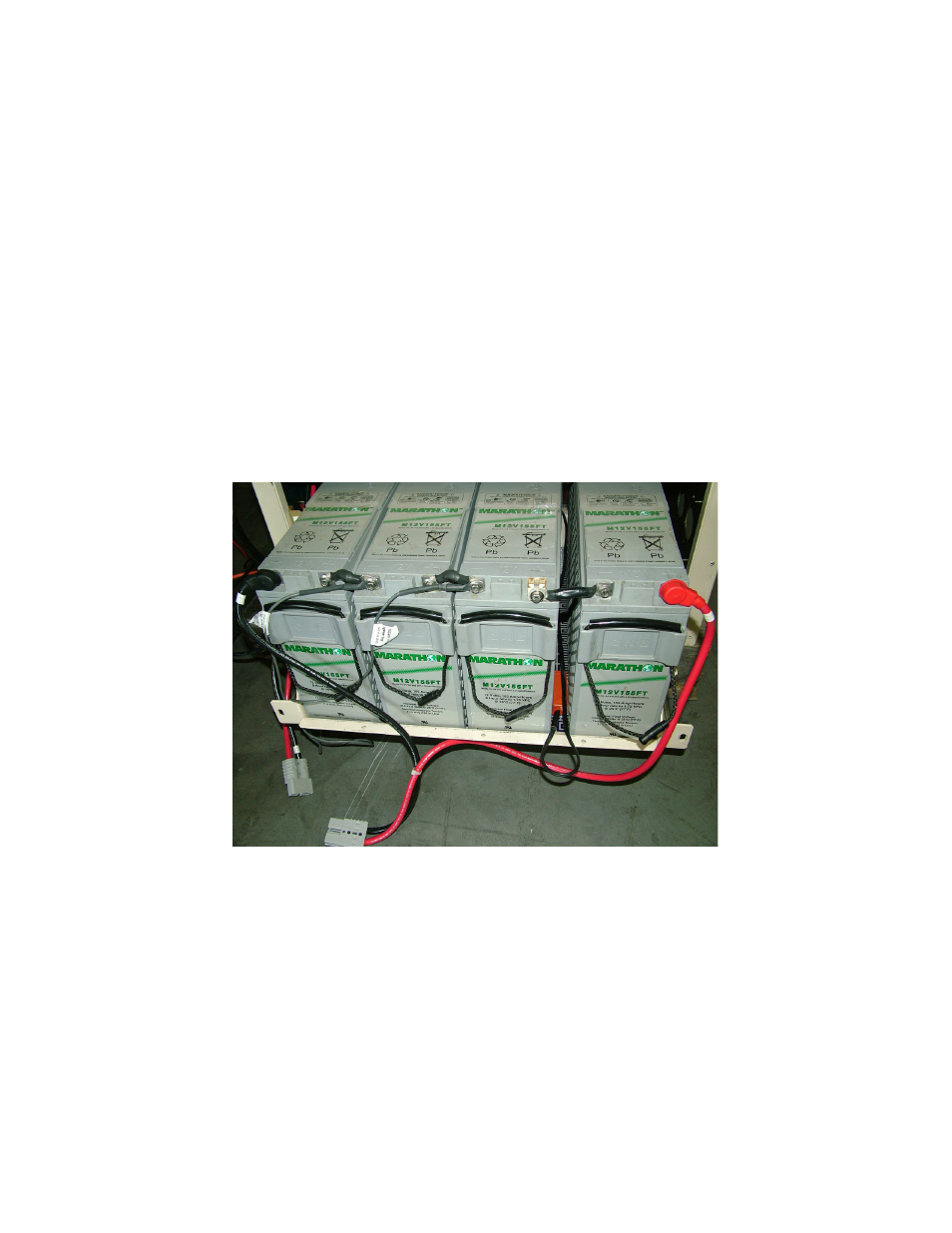

Fig. 1-11, Battery Storage Unit
The MiniBay equipment enclosure can house a maximum of four batteries on the floor of
enclosure when the fan filtered cooling door or roof vent option is used. The roof vent must
have a minimum of four .375" vent holes to provide adequate hydrogen venting (Alpha P/N
745-669-20 or equivalent). The following batteries may be used in the battery compartment or
equipment enclosure:
• C&D TEL 12-45
• C&D TEL 12-70
• AlphaCell 85GXL-HP
• AlphaCell 195GXL-FTG
• AlphaCell 225AGM-FTA
