7 044-001-C0-00, Rev. C
3.0 AC Air Conditioner, continued
3.3 AC Air Conditioner Condensate Hose Mounting
The MiniBay AC air conditioner comes with a condensate hose that must be secured to the
mounting pad. The hose may be run out the front or back of the pad, and should extend three
inches from the edge.
Tools Required:
• Rotary Hammer Drill with 1/4" bit
• Hammer
Procedure:
1. Locate the hose hardware kit (packaged with the battery cable kits).
2. Extend the hose out in the desired direction and position brackets.
. Locate the anchor holes so the hose does not interfere with the door opening. Drill two
holes for the anchors into the pad.
4. Place anchors in anchor holes.
5. Run the pins through the brackets and hammer into the anchors.
6. Trim the hose to approximately three inches over the edge of the pad.

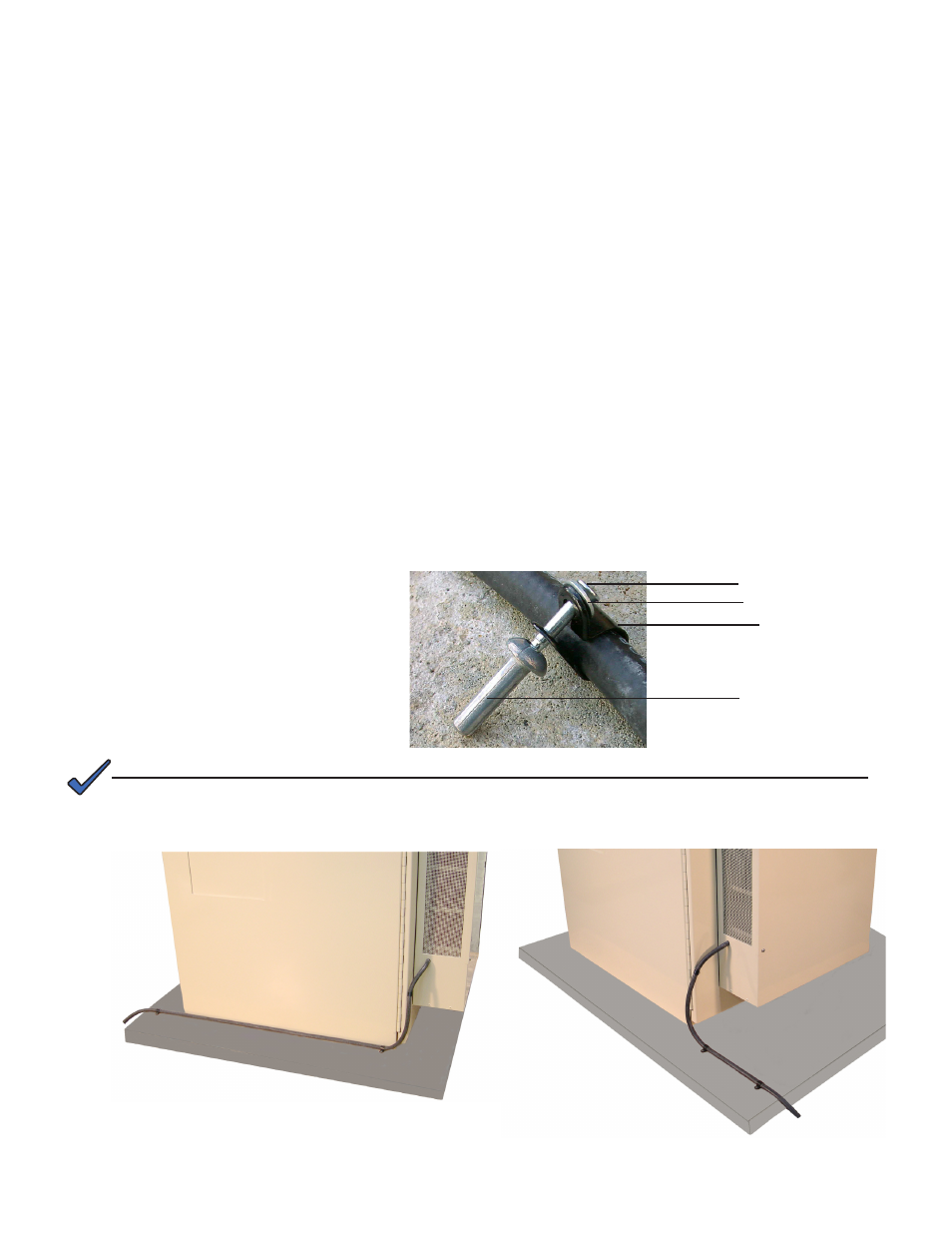

Fig. -, Condensate Hose Mounting
Anchor
Pin
Bracket
Washer
The condensate hose should have a minimum two-inch bend radius and should not kink when the door is
opened. Check the hose every six months for blockage or disconnection.
