45 044-001-C0-00, Rev. C
4.0 Site Preparation, continued
4.4 Site Configuration

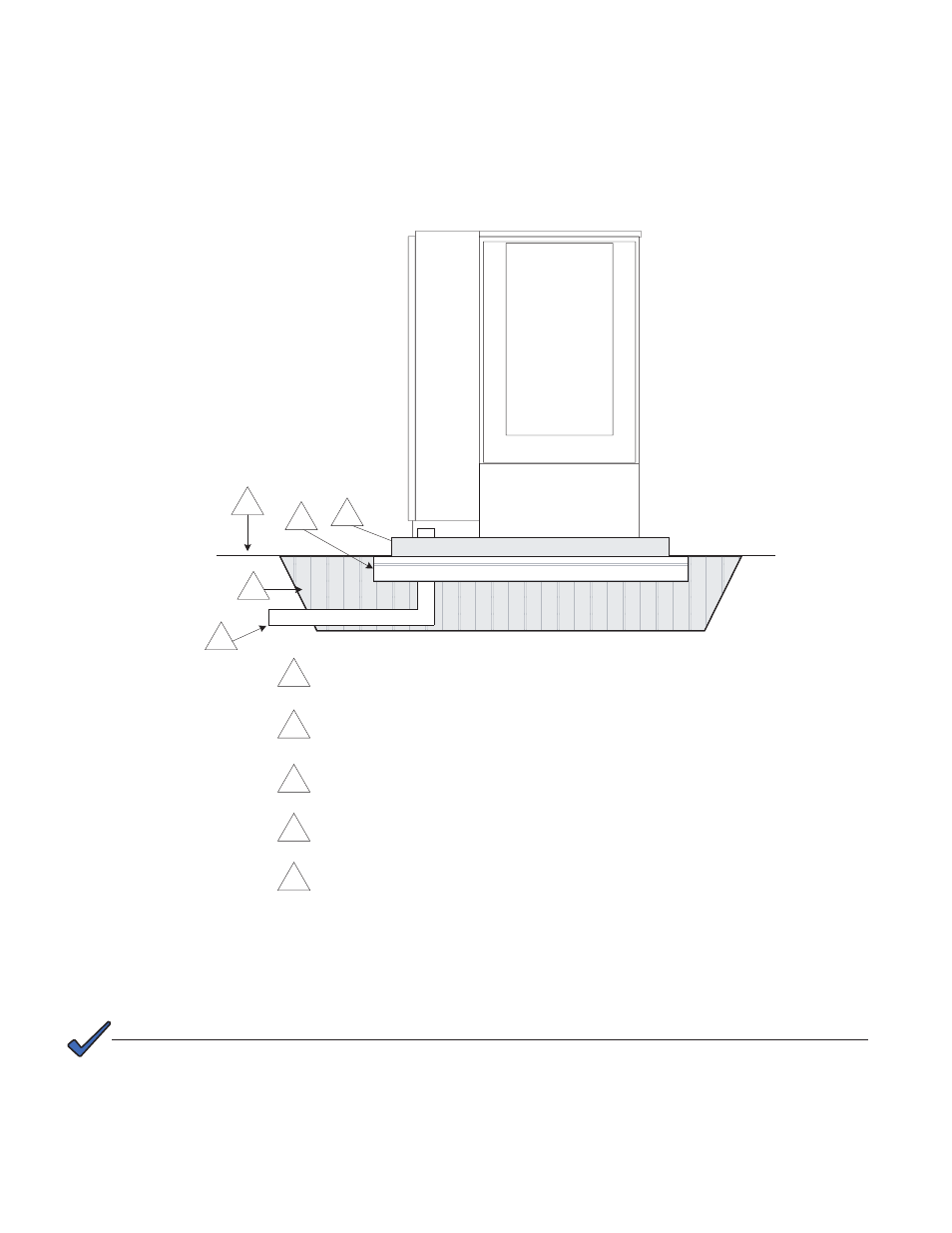

Figure 4-9 (below) shows the cable conduit route into the side chamber.
Fig. 4-9, Typical Site Arrangement, (cabinet with optional side chamber)
Verify the conduit is trimmed 1" to 2" above the pad surface (for side chamber), or 1" to 4" for riser.
PRE-CAST PAD
E
B
A
D
B
A
C
C
D
E
Front
of
Enclosure
NOTE:
Precast Polymer Pad
Compacted Gravel (12" depth recommended
Level Grade
Area of Backfilled Soil
Trench for Sweep (sweep enters back of cabinet)
